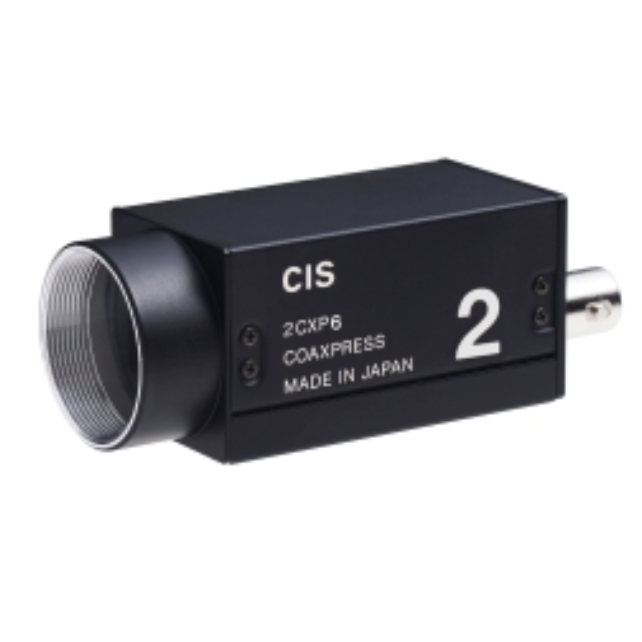

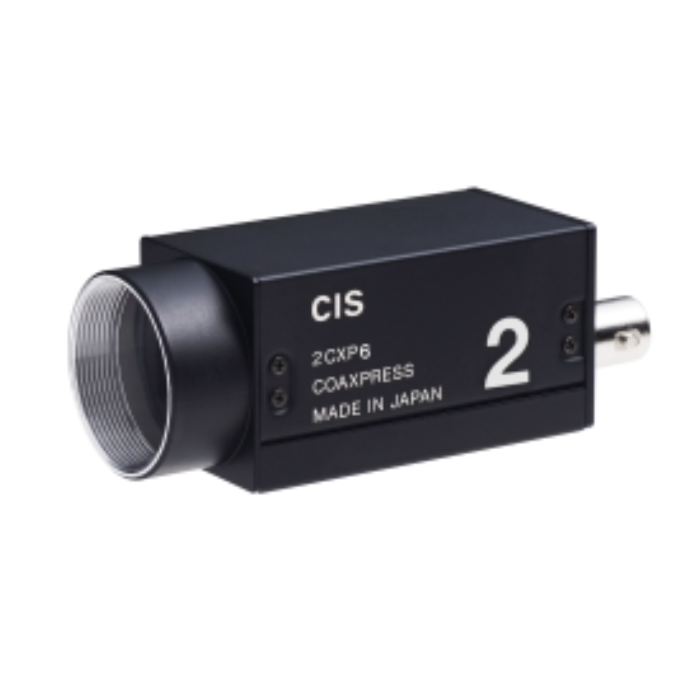

CIS VCC-2CXP6M 1/1.7 CMOS CoaXPress Monochrome Camera
CIS VCC-2CXP6M is a cutting-edge CoaXPress camera designed to excel in demanding industrial and machine vision applications. Equipped with a Sony Pregius CMOS sensor, this camera delivers exceptional image quality, high speed, and robust performance.
Ideal for applications requiring precise timing and accurate image capture, the VCC2CXP6M boasts a global shutter for distortion-free images, even under fast-moving conditions. Its CoaXPress interface (CXP-3 and CXP-6 compliant) ensures high-speed data transfer, making it suitable for real-time inspection and analysis.
With features like external trigger, adjustable exposure and gain, ROI, and binning, this camera offers unparalleled flexibility and customization. Its compact size and durable construction make it perfect for integration into various industrial setups.
Features:
- High-resolution 2M CMOS sensor
- CoaXPress CXP-3/CXP-6 interface
- Global shutter for distortion-free images
- External trigger for precise synchronization
- Adjustable exposure and gain for optimal image capture
- ROI and binning for flexible image processing
- Compact and rugged design
Applications:
- Electronic inspection
- Semiconductor manufacturing
- Automotive assembly
- Food and beverage quality control
- Pharmaceutical packaging
- Metalworking and fabrication
- Textile and material inspection
| Mono/Color | Mono |
| Resolution | 2M (1632 × 1248) |
| fps@Max. Resolution | CXP-3:119.5(8bit)/97.3(10bit)/82.7(12bit) , CXP-6:239(8bit)/194.5(10bit)/165.5(12bit) |
| Output Format | Mono 8 / Mono 10 / Mono12 |
| Sensor Model Name | IMX422 |
| Shutter Type | Global Shutter |
| Imager Size | 1/1.7 |
| Effective Pixels | 1632(H) × 1248(V) |
| Pixel Size (μm) | 4.5 × 4.5 |
| Pixel Clock (MHz) | 74.25MHz |
| Power Requirement | PoCXP |
| Min. Illumination | F1.4 1 lx |
| Sensitivity | F8 400lx |
| Interface | CXP-6 / CXP-3 、x1 |
| Lens Mount | C Mount |
| Weight (g) | 66ｇ |
| Dimensions (W) x (H) x (D)mm | 29 × 29 × 55 |
