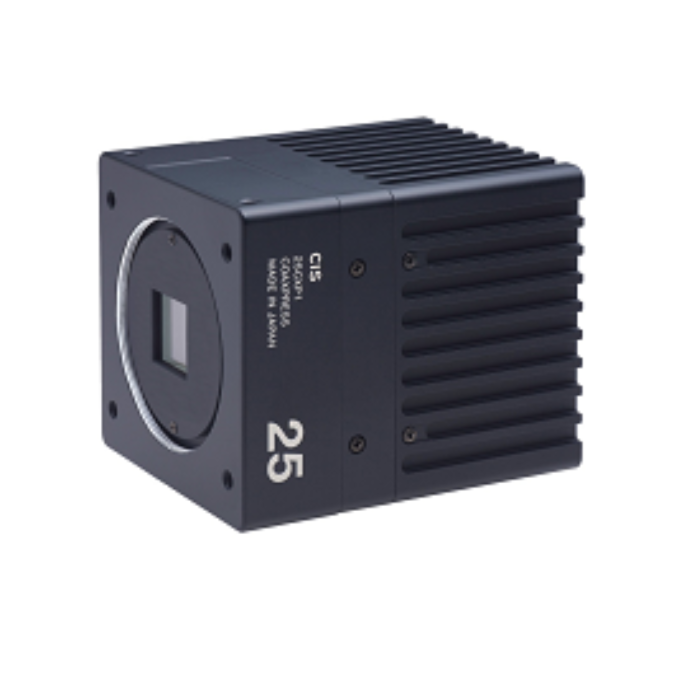

CIS VCC-25CXPHSR 1.1 CMOS 25M Color CoaXPress Camera

150fps high speed, 25M resolution CXP interface camera with 1.1" global shutter type CMOS sensor. You can choose C mount lenses to use with an optional lens mount conversion ring (M48-C). Capable of long distance data transmission, approx. 24m with CXP12 and approx. 40m with CXP6.
With multi-functionality and long distance data transmission capability, best suited not only for FA short-range inspection such as liquid crystal device and semiconductor wafer inspection, but also good for measurement systems, robot vision, and more.

*This product is still under development. The specifications posted are preliminary and subject to change without prior notice.

Features:

• 25M pixels resolution 150fps high speed output
• CXP-12×4, CXP-12×1
• 1.1 type global shutter CMOS sensor
• With M48-C conversion ring, C mount lenses can be used.
• Long distance data transmission (24m with CXP12, 40m with CXP6)
• Transmission band 12.5Gbps, 50 Gbps with 4 lanes output
• Multifunction: External trigger, ROI (vertical 16 area), defective pixels correction, shading correction, binning (only for B/W model), shutter control, black level correction, gamma compensation, and more
• Available with or without heat sink.
• With heat sink: VCC-25CXPHSM-F, VCC-25CXPHSR-F (65mm(H) x 125mm(W) x 93.3mm(D))
• Without heat sink：VCC-25CXPHSM, VCC-25CXPHSR (65mm(H) x 65mm(W) x 93.3mm(D))
