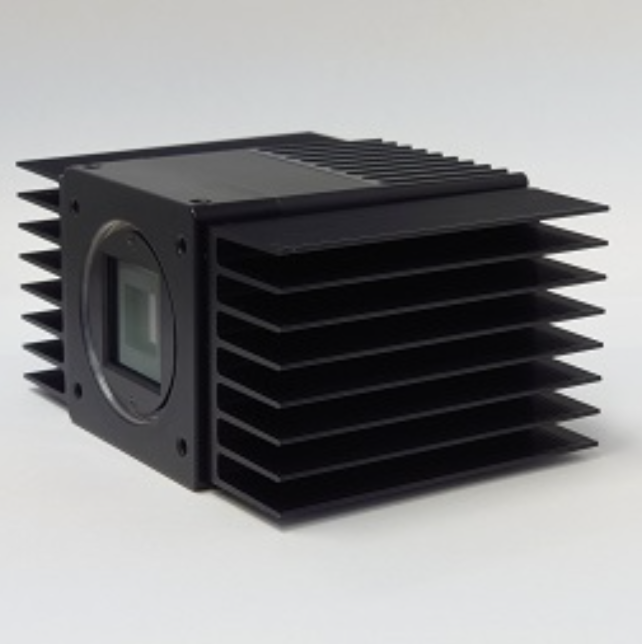

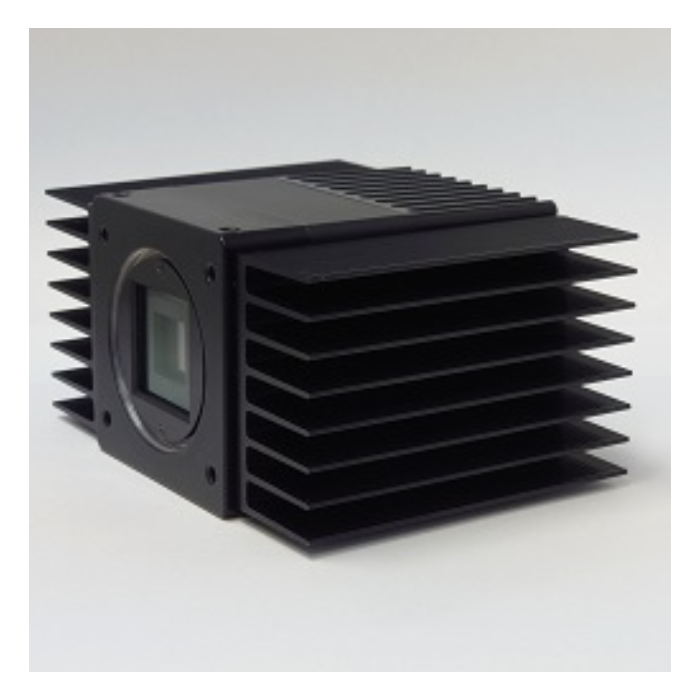

CIS VCC-25CXPHSR-F 1.1 CMOS 25M Color CoaXPress Camera

The CIS VCC‑25CXPHSR‑F is a Made in Japan, NDAA compliant high‑performance CoaXPress industrial camera engineered for advanced imaging applications requiring precision, reliability, and high‑speed data output. This 25‑megapixel global shutter CMOS camera captures ultra‑sharp images at up to 150 fps with superior signal integrity across long transmission distances — approximately 24 m with CXP‑12 and 40 m with CXP‑6.

Built for critical vision systems in factory automation, machine vision inspections, and robotic imaging, the VCC25CXPHSRF delivers exceptional 1.1" sensor performance. Featuring CXP‑12 × 4 or CXP‑12 × 1 interfaces, it ensures high‑speed data throughput up to 50 Gbps for seamless integration with demanding production and measurement setups.

Features:

• 25M pixels resolution 150fps high speed output
• CXP-12×4, CXP-12×1
• 1.1 type global shutter CMOS sensor
• With M48-C conversion ring, C mount lenses can be used.
• Long distance data transmission (24m with CXP12, 40m with CXP6)
• Transmission band 12.5Gbps, 50 Gbps with 4 lanes output
• Multifunction: External trigger, ROI (vertical 16 area), defective pixels correction, shading correction, binning (only for B/W model), shutter control, black level correction, gamma compensation, and more
• Available with or without heat sink.
• With heat sink: VCC-25CXPHSM-F, VCC-25CXPHSR-F (65mm(H) x 125mm(W) x 93.3mm(D))
• Without heat sink：VCC-25CXPHSM, VCC-25CXPHSR (65mm(H) x 65mm(W) x 93.3mm(D))

Applications:

• Inspection
• Measurement
• Robot vision
• Automation

Note: This product is under development. Specifications are preliminary and subject to change without notice.
