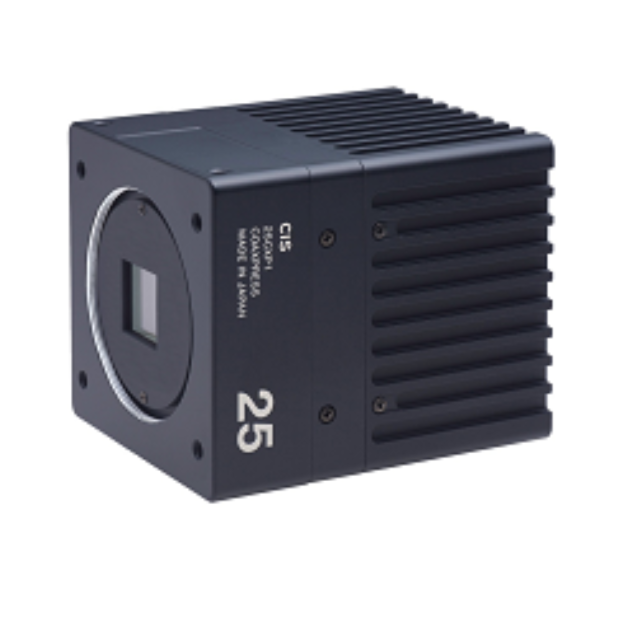

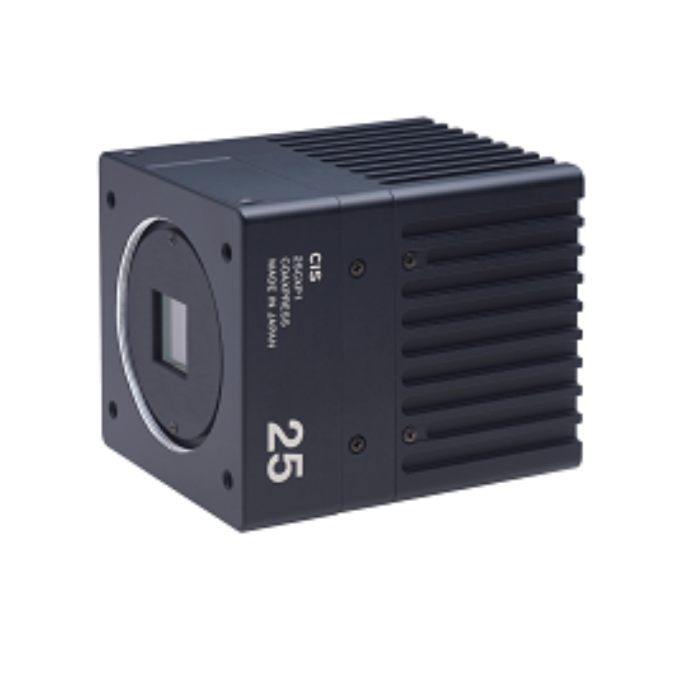

CIS VCC-25CXPHSM 1.1 CMOS 25M Monochrome CoaXPress Camera

The CIS VCC-25CXPHSM is a Made in Japan, NDAA compliant 25-megapixel high-speed CoaXPress camera engineered for exceptional precision and reliability. Featuring a 1.1" global shutter CMOS sensor and CXP-12 interface, this industrial camera delivers up to 150 fps at full resolution, providing superior image quality and zero motion blur for demanding inspection and measurement applications.

Designed to support long-distance data transmission—up to 24 m with CXP-12 or 40 m with CXP-6—the VCC25CXPHSM ensures stable, lossless performance in complex machine vision environments. With multifunction support such as external trigger, ROI selection (16 vertical areas), defective pixel correction, shading correction, binning (B/W models), and gamma compensation, this camera offers the flexibility and precision needed for automation and inspection systems.

Built to meet the highest industrial standards, this model is ideal for semiconductor inspection, LCD and PCB measurement, robot vision, and factory automation applications. Users can also integrate C-mount lenses using the optional M48-C conversion ring for added flexibility.

Features:

• 25M pixels resolution 150fps high speed output
• CXP-12×4, CXP-12×1
• 1.1 type global shutter CMOS sensor
• With M48-C conversion ring, C mount lenses can be used.
• Long distance data transmission (24m with CXP12, 40m with CXP6)
• Transmission band 12.5Gbps, 50 Gbps with 4 lanes output
• Multifunction: External trigger, ROI (vertical 16 area), defective pixels correction, shading correction, binning (only for B/W model), shutter control, black level correction, gamma compensation, and more
• Available with or without heat sink.
• With heat sink: VCC-25CXPHSM-F, VCC-25CXPHSR-F (65mm(H) x 125mm(W) x 93.3mm(D))
• Without heat sink：VCC-25CXPHSM, VCC-25CXPHSR (65mm(H) x 65mm(W) x 93.3mm(D))

Applications:

• Factory automation
• Robot vision
• Semiconductor inspection
• LCD/PCB measurement
