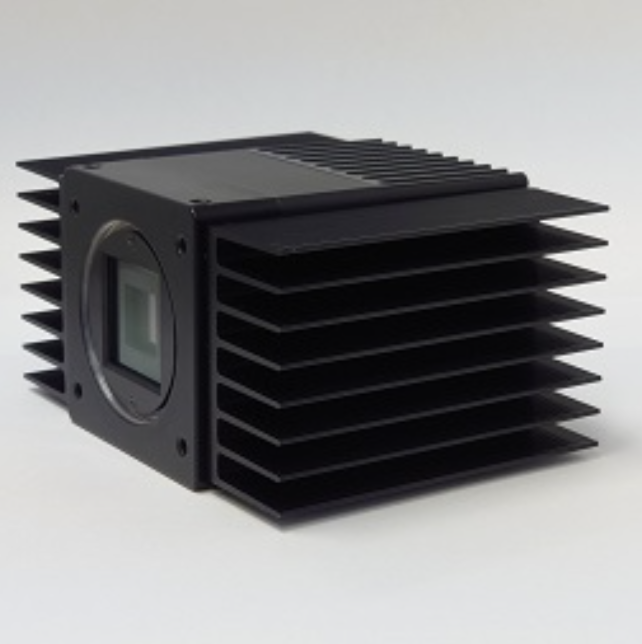

CIS VCC-25CXPHSM-F 1.1 CMOS 25M Monochrome CoaXPress Camera

The CIS VCC-25CXPHSM-F is a high-speed 25MP industrial CoaXPress camera engineered for precision and reliability. Made in Japan and NDAA compliant, this model delivers 150 fps high-speed performance with a 1.1" global shutter CMOS sensor for superior image accuracy in demanding inspection and automation environments.

Featuring CXP-12×4 and CXP-12×1 interfaces, this camera supports long-distance data transmission up to 24m with CXP12 and 40m with CXP6, ensuring flexible installation even in large-scale production systems. Lens versatility is achievable using standard C mount lenses with the optional M48-C conversion ring.

Designed for exceptional flexibility, the VCC-25CXPHSM-F stands out for factory automation, high-definition inspection, and robot vision applications requiring both speed and precision.

Features:

• 25M pixel resolution with 150fps high-speed output
• CoaXPress 2.0 (CXP-12×4 / CXP-12×1) interface
• 1.1" global shutter CMOS sensor
• Long-distance data transmission: 24m (CXP12) / 40m (CXP6)
• Multifunction controls: external trigger, ROI (16 areas), pixel/shading correction, binning (mono only), shutter control, black level, gamma adjustment, and more
• Optional C mount compatibility via M48-C conversion ring
• Transmission band: 12.5 Gbps (single lane), 50 Gbps (4 lanes total)

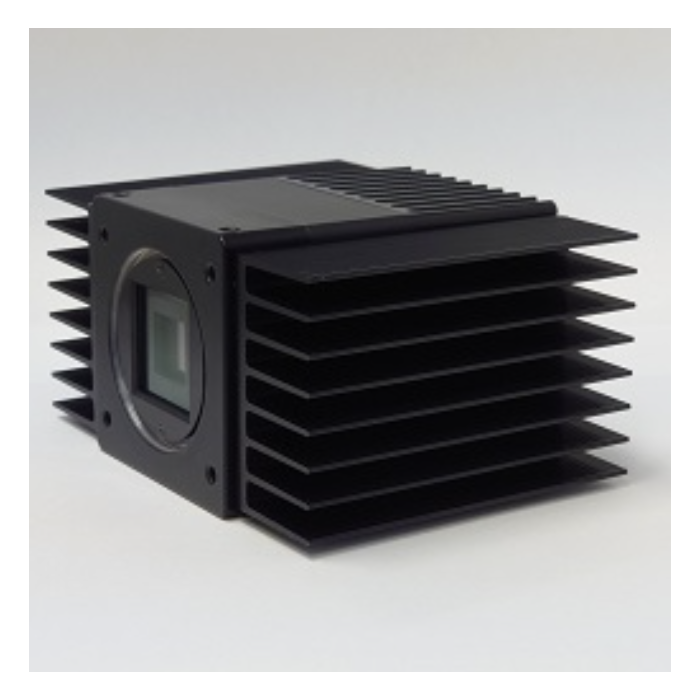

• Available with heat sink (VCC-25CXPHSM-F/R-F) or without heat sink (VCC-25CXPHSM/R)
• Made in Japan for top-tier build quality and long-term durability
• NDAA compliant, suitable for government and defense-related applications

Applications:

• FA Inspection
• Robot Vision
• Measurement Systems
