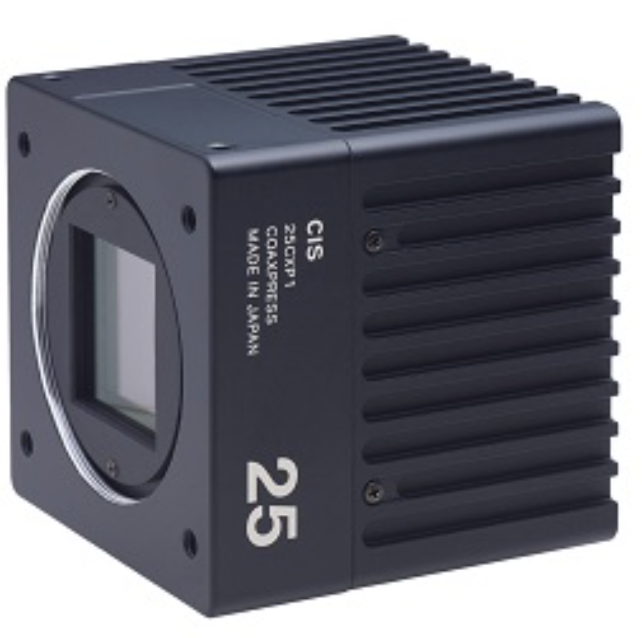

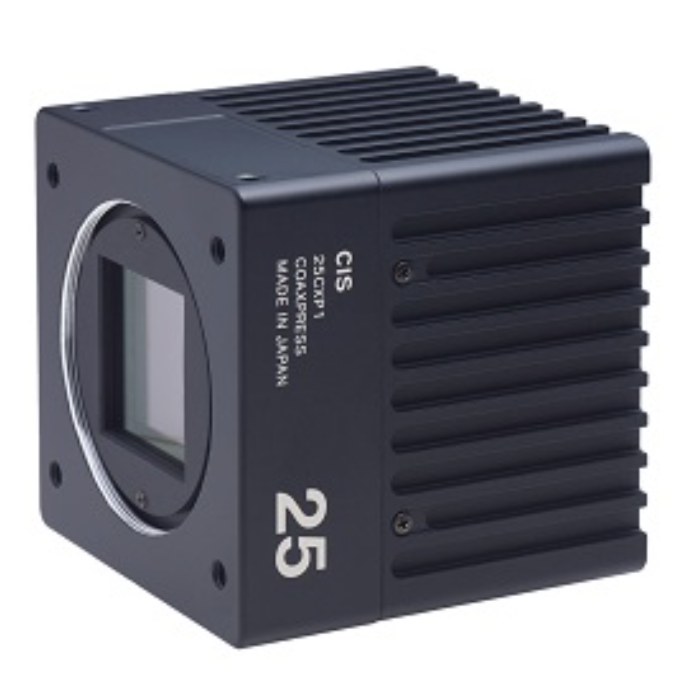

CIS VCC-25CXP1R CoaXPress 25MP Color Camera with APS-H Python 25K CMOS, CXP‑6×4 Interface, 81fps, Global Shutter, M48 Mount
The CIS VCC-25CXP1R delivers 25-megapixel high-resolution imaging with exceptional color accuracy, built for precision industrial and machine vision systems. Featuring an APS-H global shutter CMOS sensor, this CoaXPress 6×4 lane (CXP-6x4) camera achieves up to 81 frames per second, ensuring detailed real-time imaging for high-speed production environments. Its advanced design supports long-distance data transmission via DIN connectors compliant with CXP Ver. 1.1.1, enabling flexible system integration across diverse setups.
Engineered for demanding factory automation (FA) and inspection applications, the VCC25CXP1R includes advanced functions such as global trigger shutter operation, ROI selection, sub-sampling, defective pixel correction, and sequence control. Optional variants like the infrared model (VCC-25CXP1NIR), binning mode version (VCC-25CXP1MBN), and clear-glass filter type (VCC-25CXP1R-C) extend its adaptability for specialized imaging environments.
Features:
- 25-megapixel high-resolution (5120 × 5120) output.
- Global shutter APS-H CMOS sensor for accurate motion capture.
- CoaXPress CXP-6×4 lane interface with DIN connector.
- Up to 81 fps at full resolution.
- Compliant with CoaXPress Ver. 1.1.1 for long-distance transfer.
- Advanced functions: ROI, sub-sampling, defective pixel correction, sequence control.
- Variants include IR, binning mode, and clear-glass models.
- Compact 65 × 65 × 65 mm cube design with M48 mount (F-mount adapter optional).
- Low 11W power consumption, PoCXP/EXT support.
- Ideal for industrial and scientific imaging.
Applications:
- Factory automation
- PCB inspection
- Metrology imaging
- 3D scanning
- Robotics vision
- Surface analysis
| Color/Mono | Color |
| Resolution | 25M (5120 x 5102) |
| fps @ Max Resolution | 81 (CXP 6 × 4lane) |
| Output Format | BayerBG8/10 |
| Sensor Model Name | Python 25K |
| Shutter Type | Global Shutter |
| Imager Size | APS-H CMOS |
| Effective Pixels | 5120 x 5120 |
| Pixel Size (μm) | 4.5 x 4.5 |
| Pixel Clock (MHz) | 72M |
| Power Consumption | 11W |
| Power Requirement | PoCXP/EXT |
| Min. Illumination | F2.6 25lx (Shutter 1/30s, Gain +18dB、level=50%) |
| Sensitivity | F5.6 2000lx (Shutter 1/30s, Gain 0dB) |
| Shutter Variable Range | 1/30～1/30000 |
| Interface | CXP-1/2/3/5/6 |
| Lens Mount | M48 Mount (F Mount Adaptor) |
| Weight (g) | 290 |
| Dimensions (W) x (H) x (D)mm | 65 × 65 × 65 |
