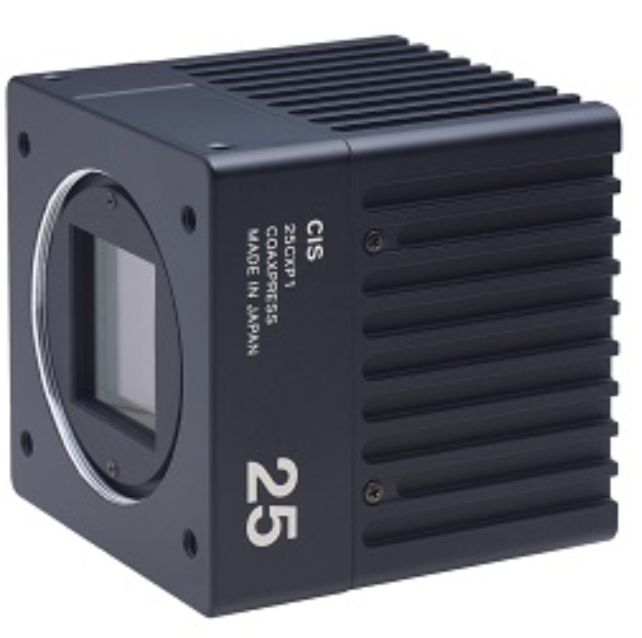

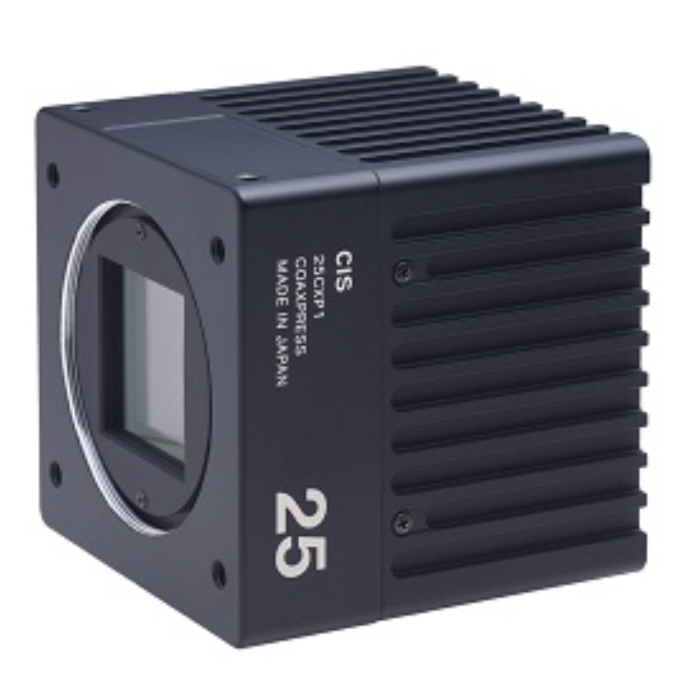

CIS VCC-25CXP1MBN 25M CoaXPress Monochrome Camera
SKU
VCC-25CXP1MBN
Quick Overview
High-speed CoaXPress industrial camera from CIS — the VCC-25CXP1MBN offers global shutter performance, Made in Japan durability, and full NDAA compliance.
The CIS VCC-25CXP1MBN (VCC25CXP1MBN) is a high-performance CoaXPress (CXP-6, 4-lane) industrial camera engineered for long-distance, high-speed data transmission. Designed and manufactured in Japan, this NDAA-compliant monochrome camera delivers exceptional reliability and precision for security, defense, inspection, and automated imaging systems requiring global shutter accuracy.
Features:
- Global shutter, CMOS sensor (Monochrome)
- CoaXPress CXP-3, CXP-6
- 1 lane
- Approx. 30m of Max. cable length
- ROI
- Exposure and Gain settings
- External trigger mode (Fixed trigger shutter mode/Pulse width trigger shutter mode)
- GenICam complied
- C mount
Applications:
- Machine Vision
- Security Systems
- Industrial Inspection
- Defense Imaging
| Color/Mono | Mono |
| Resolution | 25M (5120 x 5102) |
| fps @ Max Resolution | 81 (CXP 6 × 4lane) |
| Output Format | MONO 8/10 |
| Sensor Model Name | Python 25K |
| Shutter Type | Global Shutter |
| Imager Size | APS-H CMOS |
| Effective Pixels | 5120 x 5120 |
| Pixel Size (μm) | 4.5 x 4.5 |
| Pixel Clock (MHz) | 72M |
| Power Consumption | 11W |
| Power Requirement | PoCXP/EXT |
| Min. Illumination | F1.4 5.2lx (Gain+18dB、ShutterOFF、level=50%) |
| Sensitivity | F8 400lx (Shutter 1/30s, Gain 0dB) |
| Shutter Variable Range | 1/30～1/30000 |
| Interface | CXP-1/2/3/5/6 |
| Lens Mount | M48 Mount (F Mount Adaptor) |
| Weight (g) | 290 |
| Dimensions (W) x (H) x (D)mm | 65 × 65 × 65 |
