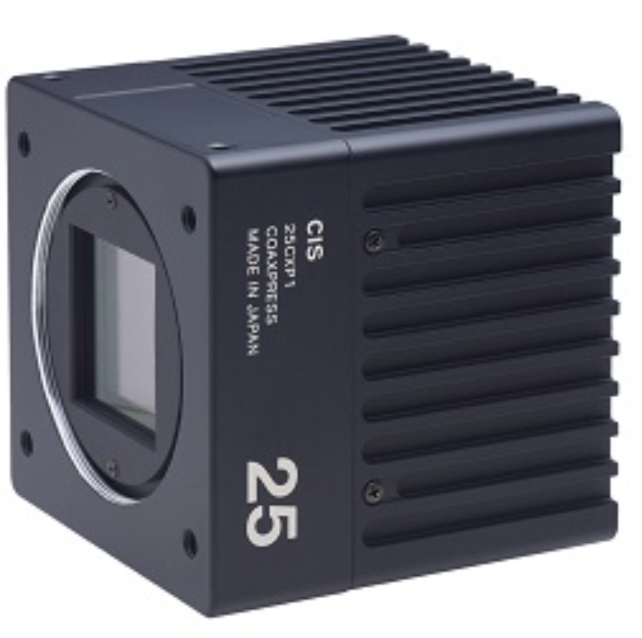

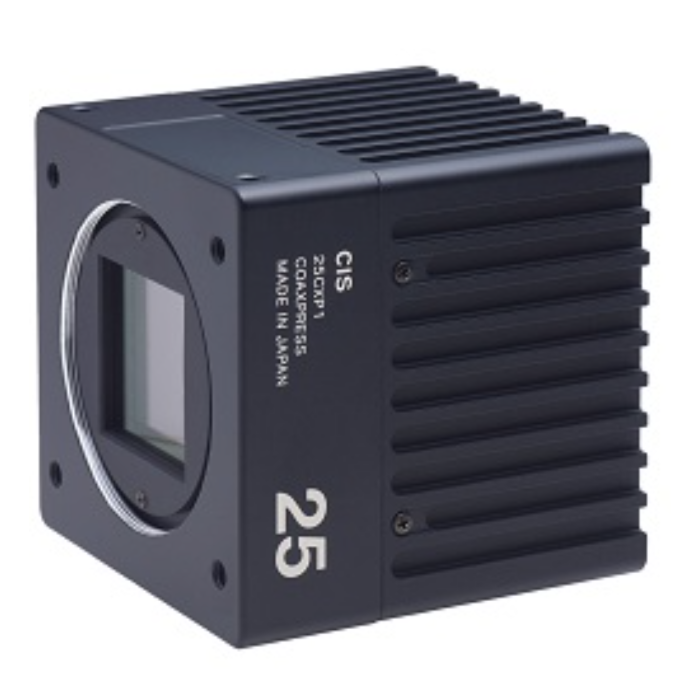

CIS VCC-25CXP1M 25M CoaXPress Monochrome Camera
SKU
VCC-25CXP1M
Quick Overview
Made in Japan and NDAA compliant, the CIS VCC‑25CXP1M CoaXPress camera delivers high‑speed, long‑distance transmission and reliable performance for industrial and inspection applications.
The CIS VCC‑25CXP1M industrial camera delivers exceptional performance and reliability for high‑precision imaging applications. Made in Japan and fully NDAA compliant, this CoaXPress camera ensures quality, security, and long‑term supply stability for defense, government, and enterprise vision systems.
Designed for long‑distance data transmission, the VCC25CXP1M supports CoaXPress CXP‑6 × 4 lane communication, enabling high‑speed transfer up to approximately 30 meters over coaxial cable. Models are available for multiple configurations, including Near IR (VCC‑25CXP1NIR), Binning Mode (VCC‑25CXP1MBN), and Clear Glass Filter (VCC‑25CXP1R‑C) versions.
Features:
- Global shutter, CMOS sensor (Monochrome)
- CoaXPress CXP-3, CXP-6
- 1 lane
- Approx. 30m of Max. cable length
- ROI
- Exposure and Gain settings
- External trigger mode (Fixed trigger shutter mode/Pulse width trigger shutter mode)
- GenICam complied
- C mount
Applications:
- Machine Vision
- Inspection Systems
- Industrial Automation
| Color/Mono | Mono |
| Resolution | 25M (5120 x 5102) |
| fps @ Max Resolution | 81 (CXP 6 × 4lane) |
| Output Format | MONO 8/10 |
| Sensor Model Name | Python 25K |
| Shutter Type | Global Shutter |
| Imager Size | APS-H CMOS |
| Effective Pixels | 5120 x 5120 |
| Pixel Size (μm) | 4.5 x 4.5 |
| Pixel Clock (MHz) | 72M |
| Power Consumption | 11W |
| Power Requirement | PoCXP/EXT |
| Min. Illumination | F1.4 5.2lx (Gain+18dB、ShutterOFF、level=50%) |
| Sensitivity | F8 400lx (Shutter 1/30s, Gain 0dB) |
| Shutter Variable Range | 1/30～1/30000 |
| Interface | CXP-1/2/3/5/6 |
| Lens Mount | M48 Mount (F Mount Adaptor) |
| Weight (g) | 290 |
| Dimensions (W) x (H) x (D)mm | 65 × 65 × 65 |
