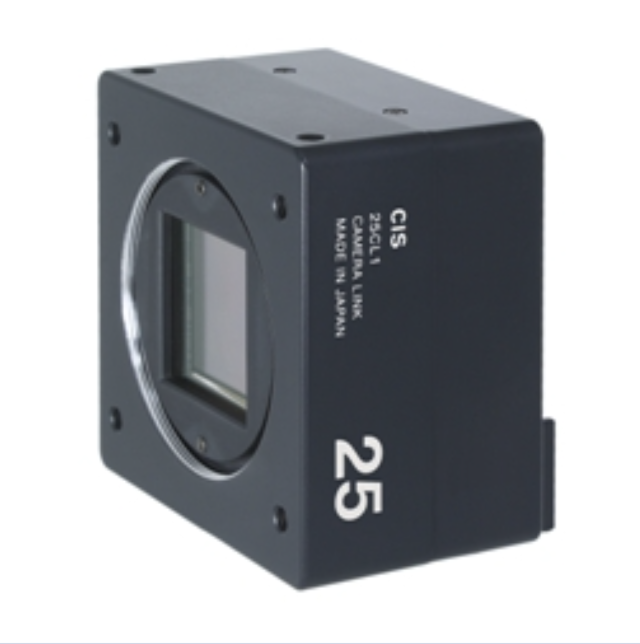

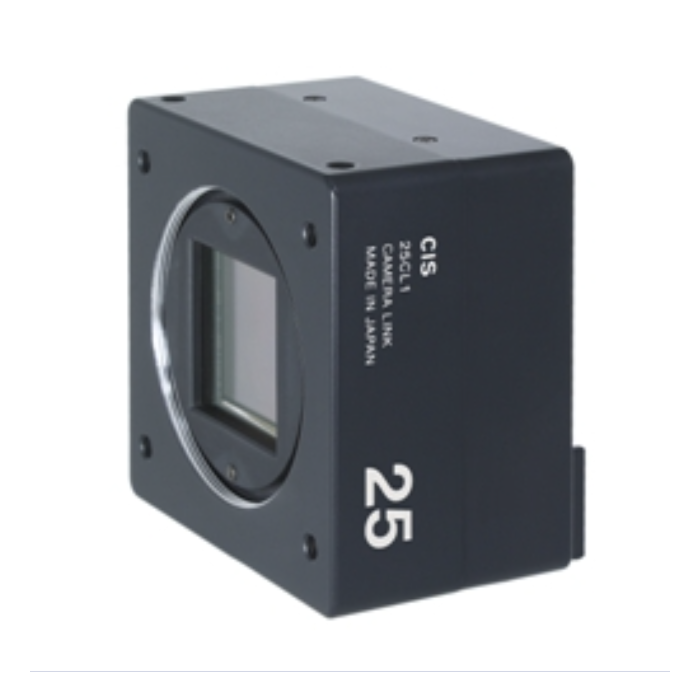

CIS VCC-25CL1M 25M Camera Link Monochrome Camera
SKU
VCC-25CL1M
Quick Overview
25MP Camera Link industrial camera made in Japan and NDAA compliant. High-resolution APS-H CMOS sensor with global shutter for precision machine vision, inspection, and defense applications.
The CIS VCC-25CL1M is a high-performance 25-megapixel industrial camera module engineered for precision imaging in demanding machine vision applications. Designed and manufactured in Japan, this NDAA compliant camera ensures exceptional quality, reliability, and longevity for secure integration into U.S. government and defense projects.
Featuring an APS-H format global shutter CMOS sensor (Python 25K), the VCC25CL1M delivers outstanding resolution and fast full-frame readout speeds. Supporting Camera Link Base, Medium, Full, and Deca configurations, it provides seamless compatibility for advanced vision systems.
Features:
- Global shutter type CMOS sensor
- Camera Link Base, Midium, Full, and Deca Configuration supported.
- Exposure control, Gain settings
- External trigger mode (Fixed trigger shutter mode / Pulse width trigger shutter mode)
- Shading correction
- Gamma correction
- Sequence control
- Multiple ROI
- M48 lens mount
Applications:
- Machine Vision
- Metrology
- Inspection
- Defense
- Research
| Color/Mono | Mono |
| Resolution | 25M (5120 × 5120) |
| fps @ Max Resolution | 5.39(2Tap),10.77(4Tap),21.54(8Tap)/72MHz・24.95(8Tap),31.96(10Tap)/85MHz |
| Output Format | 8bit/10bit |
| Sensor Model Name | Python 25K |
| Shutter Type | Global Shutter |
| Imager Size | APS-H CMOS |
| Effective Pixels | 5120 × 5120 |
| Pixel Size (μm) | 4.5 x 4.5 |
| Pixel Clock (MHz) | 4.5 x 4.5 |
| Power Consumption | 8W |
| Power Requirement | DC+12V±10% |
| Min Illumination | F2.6 5.0lx |
| Sensitivity | F8 400lx |
| Shutter Variable Range | 1/32s ～ 1/30000s |
| Lens Mount | M48 Mount (F Mount Adaptor) |
| Weigth (g) | 210g |
| Dimensions (W) x (H) x (D)mm | 65 x 65 x 40.5 |
