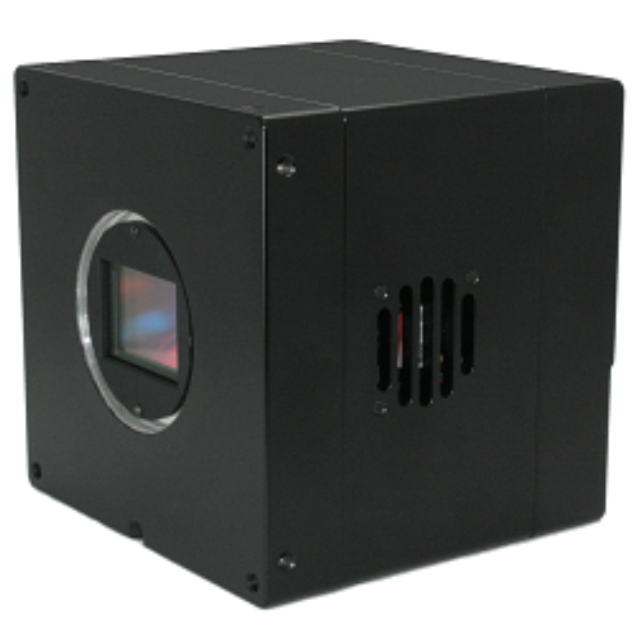

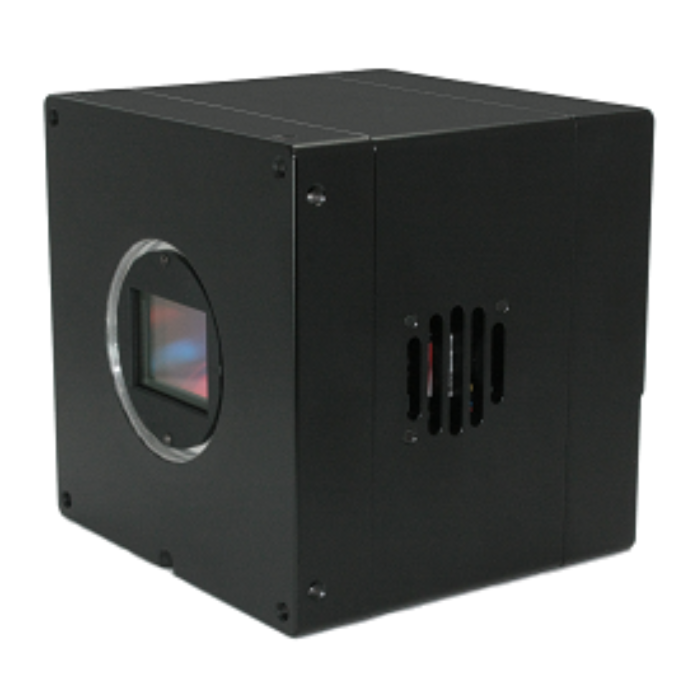

CIS VCC-250CXP1R 250M Color CoaXPress Camera
The CIS VCC-250CXP1R is a 250-megapixel industrial machine vision camera made in Japan and fully NDAA compliant for secure, government-approved imaging applications. This compact high-resolution camera (100mm x 100mm x 95.6mm) delivers exceptional detail via a CoaXPress CXP-6 interface, supporting reliable data transfer up to 40m and conforming to CoaXPress Version 1.1.1 standards.
Engineered for precision machine vision inspection, measurement, medical imaging, life science research, and archive or observation tasks, the VCC250CXP1R combines innovation and compliance. It features essential imaging functions including trigger shutter, ROI, gain, shading correction, black level adjustment, noise filter, and strobe pulse control—ensuring accurate and consistent performance in demanding environments.
Features:
- Rolling shutter, CMOS sensor
- CoaXPress CXP-6
- 4 lanes
- PoCXP
- Approx. 40m of Max. cable length at CXP-6
- ROI
- Exposure and Gain settings
- External trigger mode
- GenICam complied
- M48 mount
Applications:
- Machine Vision
- Inspection
- Measurement
- Research
- Medical Imaging
| Color/Mono | Color |
| Resolution | 250M（19568×12588) |
| fps @ Max Resolution | 5.00fps (CXP6×4) |
| Output Format | Bayer 8/10/12 |
| Sensor Model Name | LI8020SAM |
| Shutter Type | Rolling Shutter |
| Imager Size | APS-H CMOS(GS) |
| Effective Pixels | 19568 × 12588 |
| Pixel Size (μm) | 1.5 x 1.5 |
| Pixel Clock (MHz) | 1152M |
| Power Consumption | 12.2 W |
| Power Requirement | +12V~24V±10% / PoCXP |
| Min. Illumination | F2.6 41.51lx |
| Sensitivity | F4 2000lx |
| Interface | CXP-6 |
| Lens Mount | M48 Mount |
| Weight (g) | 830g |
| Dimensions (W) x (H) x (D)mm | 100 × 100 × 95.6 |
