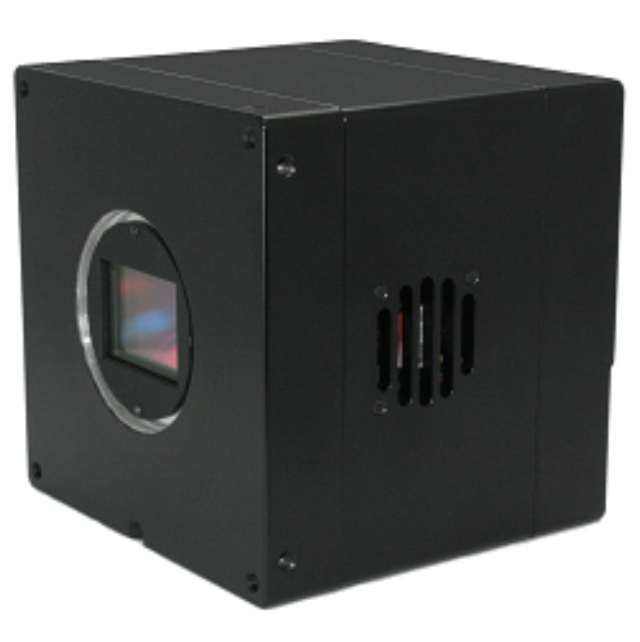

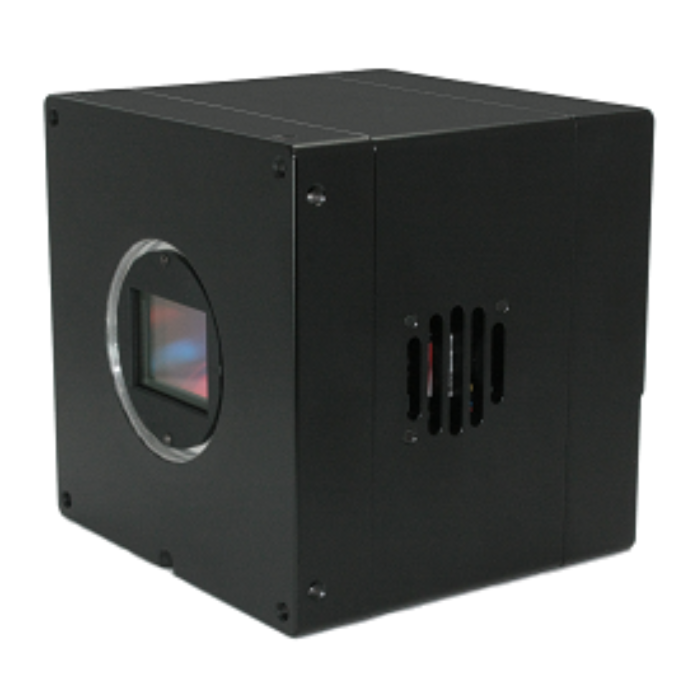

CIS VCC-250CXP1M 250M Monochrome CoaXPress Camera
The CIS VCC-250CXP1M is a Made in Japan, NDAA compliant 250-megapixel industrial camera engineered for high-precision machine vision and inspection systems. Designed with a compact footprint of 100mm (H) × 100mm (W) × 95.6mm (D), this CoaXPress camera complies with CoaXPress Version 1.1.1 and delivers reliable data transfer up to 40m using CXP-6 interface.
Ideal for ultra-high-resolution image capture, the VCC250CXP1M provides advanced imaging control functions — including trigger shutter, ROI, gain adjustment, shading correction, black level calibration, noise filter, and strobe pulse control. Manufactured with precision in Japan, this model ensures outstanding durability, image clarity, and compliance with NDAA standards for secure U.S. government and defense supply chains.
Features:
- 250M pixel CMOS sensor with rolling shutter
- CoaXPress CXP-6 interface (4 lanes)
- Power-over-CoaXPress (PoCXP) support
- Approx. 40m max cable length at CXP-6
- ROI (Region of Interest) support
- Configurable exposure and gain settings
- External trigger capability
- GenICam compliant for easy integration
- M48 mount design
Applications:
- Inspection
- Research
- Medical
- Observation
| Color/Mono | Mono |
| Resolution | 250M（19568×12588) |
| fps @ Max Resolution | 5.00fps (CXP6×4) |
| Output Format | MONO 8/10/12 |
| Sensor Model Name | LI8020SAM |
| Shutter Type | Rolling Shutter |
| Imager Size | APS-H CMOS(GS) |
| Effective Pixels | 19568 × 12588 |
| Pixel Size (μm) | 1.5 x 1.5 |
| Pixel Clock (MHz) | 1152M |
| Power Consumption | 12.2 W |
| Power Requirement | +12V~24V±10% / PoCXP |
| Min. Illumination | F2.6 3.42lx |
| Sensitivity | F8 400lx |
| Interface | CXP-6 |
| Lens Mount | M48 Mount |
| Weight (g) | 830g |
| Dimensions (W) x (H) x (D)mm | 100 × 100 × 95.6 |
