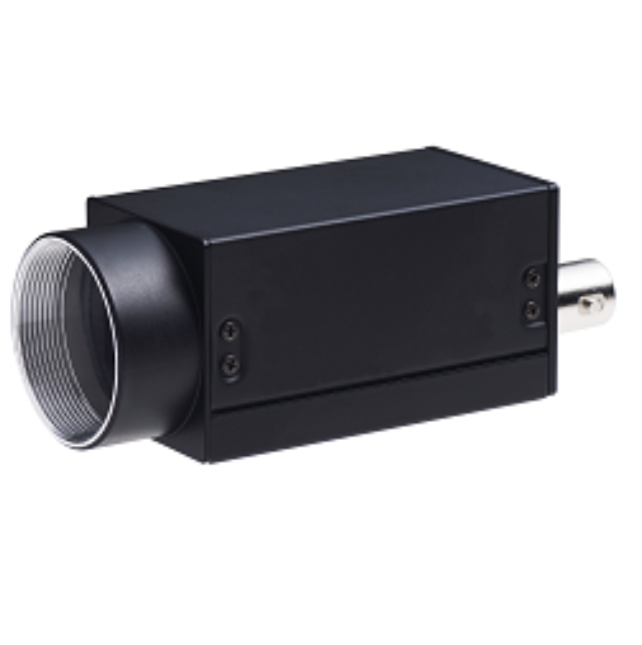

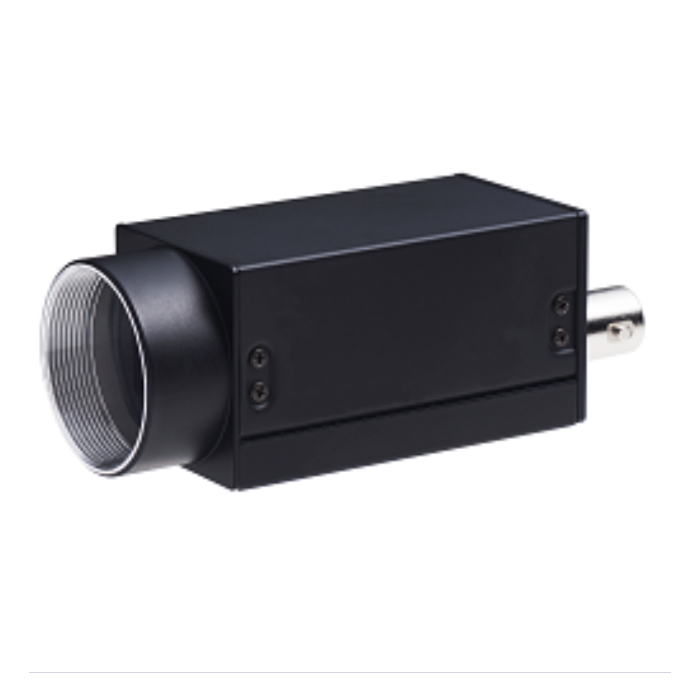

CIS VCC-24CXP7M 1.2 CMOS 24M CoaxPress Monochrome Camera
The CIS VCC-24CXP7M CoaXPress Camera delivers exceptional 24-megapixel resolution and high-speed performance for precision Machine Vision applications. Made in Japan and NDAA compliant, this compact camera (29mm × 29mm × 55mm) ensures reliability and compliance for government, defense, and industrial inspection environments.
Featuring a Global Shutter CMOS sensor (Monochrome) and CoaXPress interface supporting CXP-3 / CXP-6, the VCC-24CXP7M transfers image data up to approximately 30 meters with rock-solid stability. Fully compliant with CoaXPress Version 1.1.1, this industrial camera supports GenICam standards and key functions including ROI, defective pixel correction, shading correction, gain, gamma correction, and PoCXP power capabilities.
The CIS VCC24CXP7M is engineered for demanding imaging systems such as robot vision, machine inspection, medical imaging, and alignment applications — delivering the performance, compliance, and Japanese-built quality that integrators trust for long-term reliability.
Features:
- Global shutter, CMOS sensor (Monochrome)
- CoaXPress CXP-3, CXP-6
- 1 lane
- Approx. 30m of Max. cable length
- ROI
- Exposure and Gain settings
- External trigger mode (Fixed trigger shutter mode/Pulse width trigger shutter mode)
- GenICam complied
- C mount
Applications:
- Machine Vision
- Robot Vision
- Medical Imaging
- Precision Alignment
| Color/Mono | Mono |
| Resolution | 24M (5328 x 4608) |
| fps @ Max Resolution | 11.1(CXP3), 21.9(CXP6) |
| Output Format | MONO 8/10/12 |
| Sensor Model Name | IMX540 |
| Shutter Type | Global Shutter |
| Imager Size | 1.2 CMOS(GS) |
| Effective Pixels | 5328 x 4608 |
| Pixel Size (μm) | 2.74 x 2.74 |
| Pixel Clock (MHz) | 72.25M |
| Power Consumption | 4.0W(CXP-3), 4.3W(CXP-6) |
| Power Requirement | PoCXP |
| Min. Illumination | F1.4 0.8 lx (Shutter 1/30(s), Gain 18dB level=50%、8bit) / F1.4 4lx(Shutter1/30s、Gain+18dB、level=50%、10/12bit) |
| Sensitivity | F11 400lx(Shutter1/30s、Gain 0dB、8bit) / F5.6 400lx(Shutter1/30s、Gain0dB、10/12bit) |
| Interface | CXP-3/6 |
| Lens Mount | C Mount |
| Weight (g) | 70 |
| Dimensions (W) x (H) x (D)mm | 29 × 29 × 55 |
