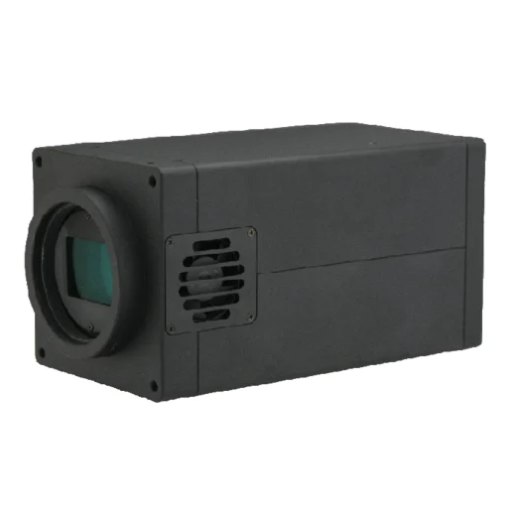

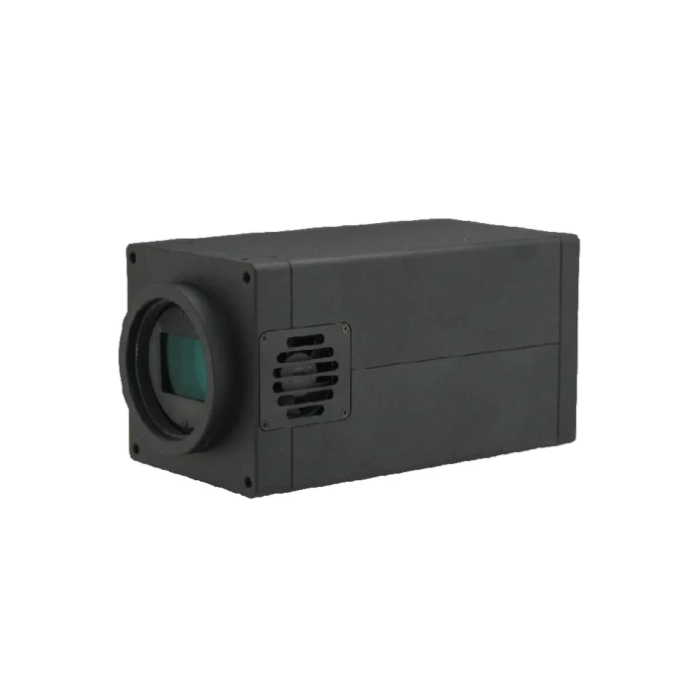

CIS VCC-21CoF2R Global Shutter APS-H CMOS CoaXPress-over-Fiber Color TFL-Ⅱ Mount Camera
The CIS VCC-21CoF2R is a high-resolution 21-megapixel industrial camera made in Japan and NDAA compliant, engineered for precision imaging across demanding environments. Featuring an APS-H global shutter CMOS sensor (5120 × 4096 pixels), this high-performance CoaXPress-over-Fiber (CoF) camera delivers exceptional speed and image quality for advanced machine vision, inspection, and scientific applications.
With CoaXPress-over-Fiber via QSFP28, the VCC-21CoF2R achieves data rates up to 100 Gbps (maximum bandwidth 5,000 MB/s), enabling real-time, ultra-high-speed image transmission with virtually no cable length limitations. Frame rate flexibility allows 510 fps at 8-bit, 410 fps at 10-bit, and 250 fps at 12-bit, ensuring distortion-free results even in dynamic or high-motion environments.
The global shutter CMOS sensor captures crystal-clear, motion-distortion-free images, while advanced features like gain control, gamma correction, Region of Interest (ROI), and external trigger enhance image tuning and synchronization. A TFL‑II lens mount provides broad optical compatibility for industrial, scientific, and defense imaging setups.
Engineered and manufactured in Japan for reliability and quality assurance, the CIS VCC21CoF2R provides NDAA compliance suitable for U.S. government and defense-related projects, ensuring both performance and procurement peace of mind.
Features:
- Dimensions: 80mm (H) × 80mm (W) × 150mm (D)
- Global shutter CMOS sensor
- CoaXPress-over-Fiber (CoF)
- Ultra-high-speed image transmission with a wide bandwidth (maximum bandwidth of 5,000 MB/s from the camera to the host PC memory)
- Virtually no cable length limitations, allowing flexible cable routing
- Gain control, gamma correction, ROI, external trigger
- TFL-II mount
Applications:
- Industrial Inspection
- Machine Vision
- Scientific Research
- Robotics and Automation
- High-Speed Imaging
- Quality Control
- Surveillance Systems
- Medical Imaging
- Aerospace and Defense
- Automotive Testing
| VCC-21CoF2R | |
| Color/Mono | Color |
| Resolution | 21M (5120×4096) |
| fps @ Max Resolution | 510fps(8bit)、410fps(10bit)、250fps(12bit) |
| Sensor Model | GSPRINT4521 |
| Shutter Type | Global Shutter |
| Imager Size | APS-H CMOS |
| Effective Pixels | 5120×4096 |
| Pixel Size (μm) | 4.5 × 4.5 |
| Min. Illumination | TBD |
| Sensitivity | TBD |
| Shutter Variable Range | 4μs～10s |
| Interface | CoaXPress-over-Fiber QSFP28 x 1 (100Gbps) |
| Lens Mount | TFL-Ⅱ Mount |
| Weight (g) | approx. 500g |
| Dimensions (W × H × D) mm | 80 × 80 × 150 |
