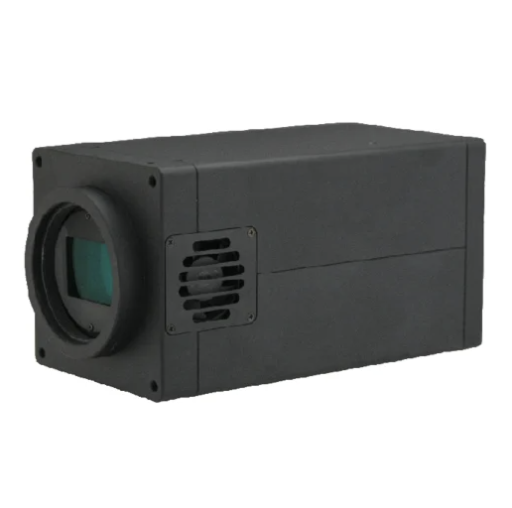

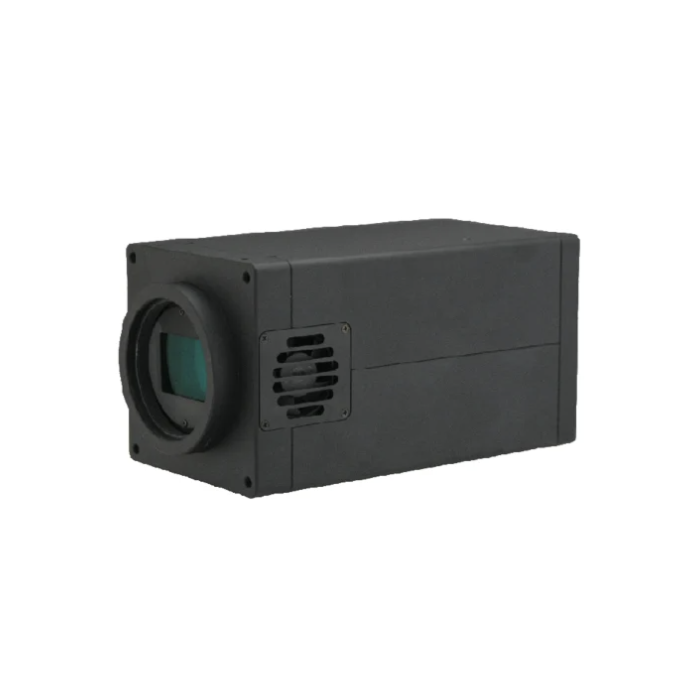

CIS VCC-21CoF2M Global Shutter APS-H CMOS CoaXPress-over-Fiber Monochrome TFL-Ⅱ Mount Camera
The CIS VCC-21CoF2M is a high-performance 21-megapixel CoaXPress-over-Fiber (CoF) camera engineered for ultra-high-speed imaging applications. It is equipped with the GSPRINT4521 APS-H global shutter CMOS sensor, delivering high-resolution images with 5120 × 4096 effective pixels and a 4.5μm pixel size. The camera supports an ultra-fast frame rate of up to 510 fps at 8-bit, 410 fps at 10-bit, and 250 fps at 12-bit, making it ideal for high-speed industrial, scientific, and machine vision applications.
Featuring CoaXPress-over-Fiber (QSFP28 100Gbps) connectivity, the VCC21CoF2M offers an exceptional data transfer rate of up to 5,000 MB/s, significantly reducing latency while enabling virtually unlimited cable lengths for flexible system integration. This eliminates traditional CoaXPress cable limitations, ensuring high-bandwidth, low-latency image transmission for demanding imaging environments.
The camera provides extensive image control functions, including gain control, gamma correction, ROI (Region of Interest) selection, and external trigger support, allowing users to optimize imaging performance based on application-specific requirements. A shutter speed range from 4μs to 10s ensures adaptability across various lighting conditions and motion capture needs.
Features:
- Dimensions: 80mm (H) × 80mm (W) × 150mm (D)
- Global shutter CMOS sensor
- CoaXPress-over-Fiber (CoF)
- Ultra-high-speed image transmission with a wide bandwidth (maximum bandwidth of 5,000 MB/s from the camera to the host PC memory)
- Virtually no cable length limitations, allowing flexible cable routing
- Gain control, gamma correction, ROI, external trigger
- TFL-II mount
Applications:
- High-speed industrial inspection
- Scientific research imaging
- Motion analysis
- Machine vision systems
- Optical inspection
- 3D imaging and scanning
- Autonomous vehicle vision systems
- Quality control in manufacturing
- Medical imaging
| VCC-21CoF2M | |
| Color/Mono | Mono |
| Resolution | 21M (5120×4096) |
| fps @ Max Resolution | 510fps(8bit)、410fps(10bit)、250fps(12bit) |
| Sensor Model | GSPRINT4521 |
| Shutter Type | Global Shutter |
| Imager Size | APS-H CMOS |
| Effective Pixels | 5120×4096 |
| Pixel Size (μm) | 4.5 × 4.5 |
| Min. Illumination | TBD |
| Sensitivity | TBD |
| Shutter Variable Range | 4μs～10s |
| Interface | CoaXPress-over-Fiber QSFP28 x 1 (100Gbps) |
| Lens Mount | TFL-Ⅱ Mount |
| Weight (g) | approx. 500g |
| Dimensions (W × H × D) mm | 80 × 80 × 150 |
