CIS VCC-20U101M/R 20MP USB3.2 Machine Vision Camera | 1/1.8" CMOS, C-Mount, 60fps

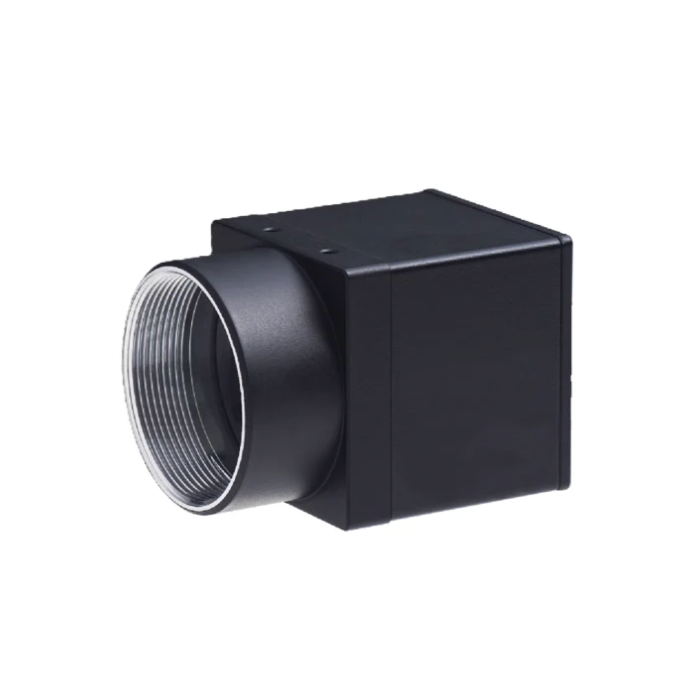

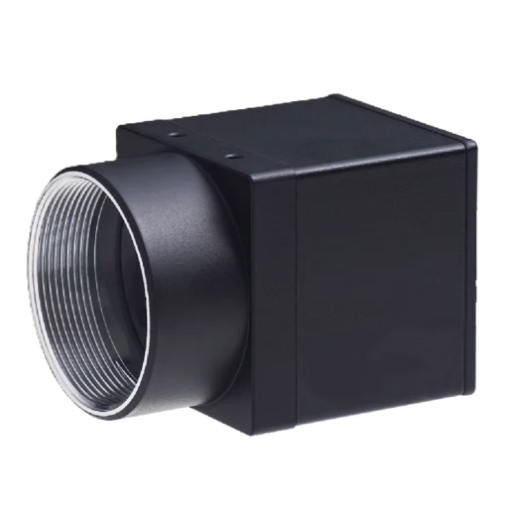

The CIS VCC-20U101R is a compact 20 megapixel USB3.2 industrial camera designed for high-resolution machine vision, factory automation, robotics, inspection, medical imaging, intelligent traffic, AI vision, and OEM embedded vision applications. Built in a small 29 x 29 x 29 mm housing, this camera delivers powerful imaging performance for space-constrained systems that require high detail, fast image transfer, and easy USB integration.

Using a 1/1.8-inch AR2020 CMOS rolling shutter sensor, the VCC-20U101R captures detailed 5120 x 3840 images at up to 60 fps, making it well suited for applications that need both high resolution and speed. Its USB3.2 10Gbps interface supports image transmission, camera control, and power through a single USB Type-C cable, helping reduce system complexity and eliminate the need for a frame grabber.

With support for external trigger mode, ROI, binning, and C-mount lenses, the VCC-20U101R gives system integrators flexible control for automated inspection, precision measurement, robotics guidance, parts verification, AI image capture, and industrial quality control systems.

Key Features:

• 20MP USB3.2 industrial machine vision camera
• 5120 x 3840 effective pixel resolution
• Up to 60 fps
• Compact 29mm square housing
• 1/1.8-inch AR2020 CMOS sensor
• Rolling shutter image sensor
• USB 10Gbps interface
• Supports USB3.2 Gen1x1 / Gen2x1
• Single-cable operation for image transmission, camera control, and power
• USB Type-C connection
• External trigger mode for synchronized image capture
• ROI and binning functions
• C-mount lens compatibility
• No frame grabber required
• Ideal for machine vision, FA, inspection, robotics, AI vision, medical imaging, and intelligent traffic systems

Applications:

• Factory automation
• Machine vision inspection
• Industrial quality control
• Robotic vision systems
• Precision measurement
• Electronics and semiconductor inspection
• Medical and laboratory imaging
• Intelligent traffic monitoring
• Object detection and recognition
• AI vision systems
• Embedded vision and OEM imaging
• Automated parts verification
• UAV/drone imaging payloads
• High-resolution inspection workstations
