CIS VCC-20U051M/R 20MP USB3.2 Machine Vision Camera | 1/1.8" CMOS, C-Mount, Type-C

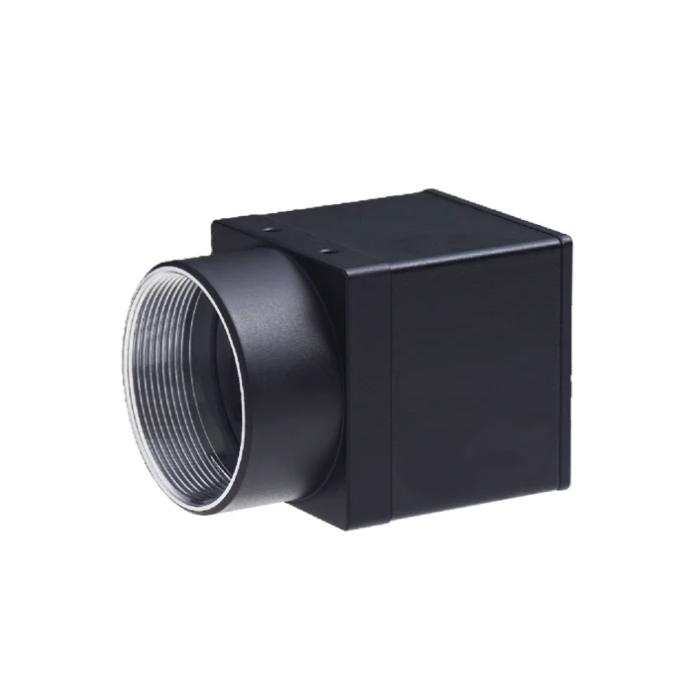

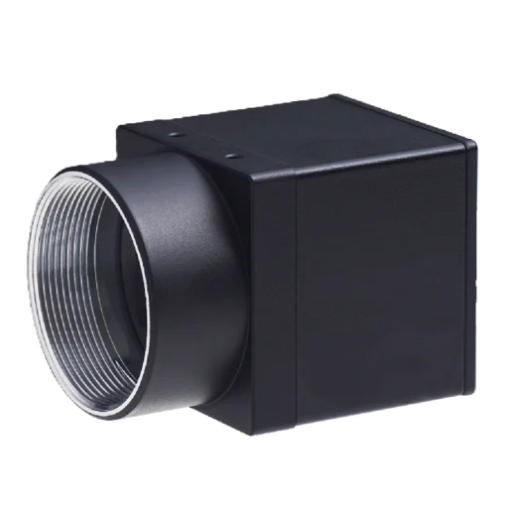

The CIS VCC-20U051R is a compact 20 megapixel USB3.2 industrial camera designed for high-resolution machine vision, factory automation, inspection, robotics, intelligent traffic, medical imaging, and embedded vision applications. Built in a small 29 x 29 x 29 mm housing, this camera delivers powerful imaging performance in space-constrained systems where image quality, integration flexibility, and cost-effective deployment matter.

Featuring a 1/1.8-inch rolling shutter CMOS sensor with 5120 x 3840 effective pixels, the VCC-20U051R provides detailed image capture for demanding inspection and measurement tasks. Its USB3.2 interface supports high-speed image transfer, camera control, and power through a single USB Type-C cable, eliminating the need for a frame grabber and simplifying system design.

The camera supports key machine vision features including external trigger mode, ROI, binning, and C-mount lens compatibility, making it ideal for automated inspection lines, machine vision workstations, robotics guidance, precision measurement, object detection, parts verification, medical device imaging, and AI vision systems.

For engineers, OEMs, and system integrators who need a compact, high-resolution USB industrial camera, the CIS VCC-20U051R delivers excellent flexibility in a small, easy-to-integrate form factor.

Key Features:

• 20MP high-resolution USB3.2 industrial camera
• 5120 x 3840 effective pixel resolution
• Compact 29mm square camera housing
• 1/1.8-inch CMOS rolling shutter sensor
• USB 5Gbps / 10Gbps interface support
• Supports USB3.2 Gen1x1 / Gen2x1
• Single-cable operation for image transmission, camera control, and power
• USB Type-C connection
• External trigger mode for synchronized image capture
• ROI and binning functions for flexible imaging setups
• C-mount lens compatibility
• No frame grabber required
• Ideal for factory automation, machine vision, inspection, robotics, AI vision, medical imaging, and intelligent traffic systems

Applications:

• Machine vision inspection
• Factory automation
• Robotic vision systems
• Semiconductor and electronics inspection
• Medical and laboratory imaging
• Precision measurement
• Object detection and recognition
• Intelligent traffic and transportation monitoring
• UAV/drone payload development
• AI vision and edge imaging systems
• Industrial quality control
• Automated parts verification
• OEM embedded vision systems
