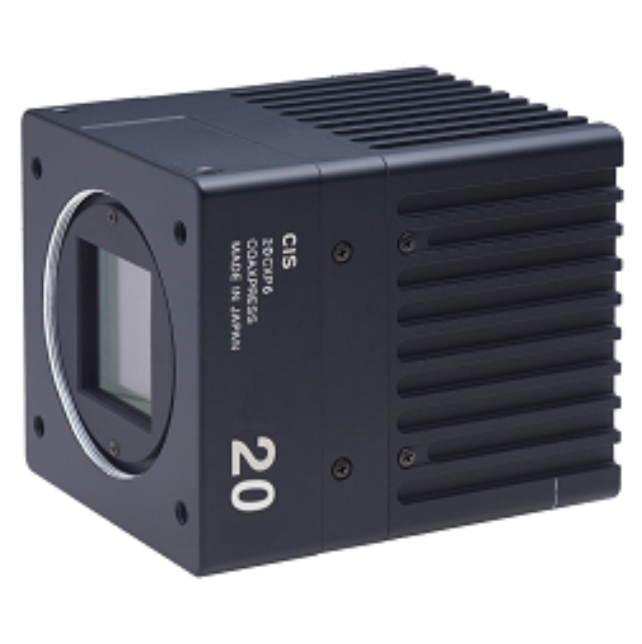

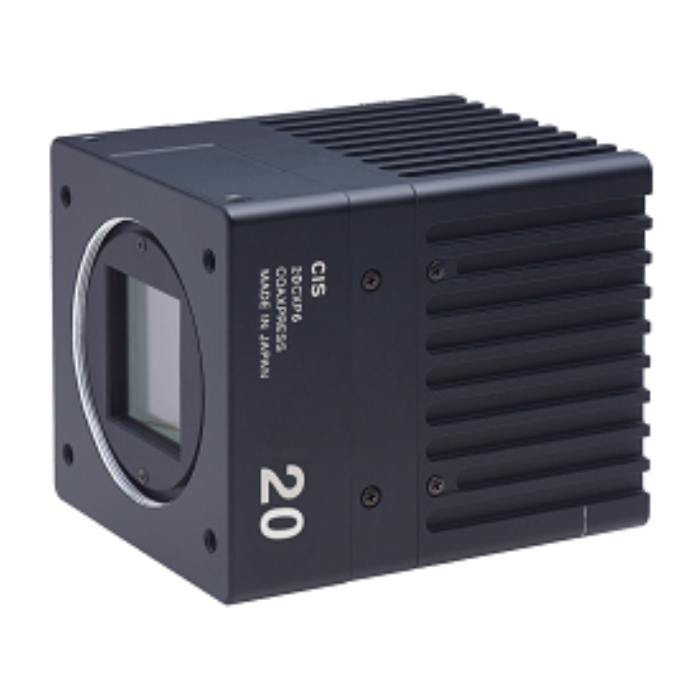

CIS VCC-20CXP6R 1.1 CMOS 20M CoaXPress Color Camera
SKU
VCC-20CXP6R
Quick Overview
CIS VCC-20CXP6R – 20MP CoaXPress camera made in Japan and NDAA compliant. Features Sony Pregius S IMX531 sensor, global shutter, and GenICam support for machine vision inspection and automation.
The CIS VCC-20CXP6R is a 20-megapixel CoaXPress industrial camera engineered for high-performance machine vision applications. Made in Japan and fully NDAA compliant, this camera provides exceptional image reliability and global compatibility for inspection and automation systems requiring U.S. regulatory assurance.
The VCC20CXP6R utilizes the advanced Sony Pregius S IMX531 CMOS sensor with global shutter technology for precise image capture in high-speed environments. Supporting CoaXPress 1.1.1 and flexible data transfer rates (CXP-3, CXP-6, and CXP-12), it delivers superior throughput for demanding machine vision inspection tasks.
Features:
- Global shutter, CMOS sensor
- CoXPress CXP-3, CXP-6, and CXP-12
- Exposure and Gain settings
- External trigger mode (Fixed trigger shutter mode/Pulse width trigger shutter mode)
- GenICam complied
- M48 mount
Applications:
- Machine Vision
- Inspection
- Identification
- Classification
| Mono/Color | Color |
| Resolution | 20M (4512 × 4512) |
| fps@Max. Resolution | 79.6fps (CXP12× 2lane) |
| Output Format | Mono 8 / Mono 10 / Mono 12 |
| Sensor Model Name | Pregius S IMX531 |
| Shutter Type | Global Shutter |
| Imager Size | 1.1 CMOS |
| Effective Pixels | 4512(H) × 4512(V) |
| Pixel Size (μm) | 2.74 x 2.74 |
| Pixel Clock (MHz) | - |
| Power Consumption | 12.5W |
| Power Requirement | PoCXP/EXT-Vin |
| Min. Illumination | F1.4 TBDlx (Gain+18dB、Shutter1/30s、level=50%) |
| Sensitivity | TBD 400lx (Shutter 1/30s, Gain 0dB) |
| Interface | CXP-3/6/12 |
| Lens Mount | M48 Mount (F Mount Adaptor) |
| Weight (g) | 390ｇ |
| Dimensions (W) x (H) x (D)mm | 65 × 65 × 93.3 |
