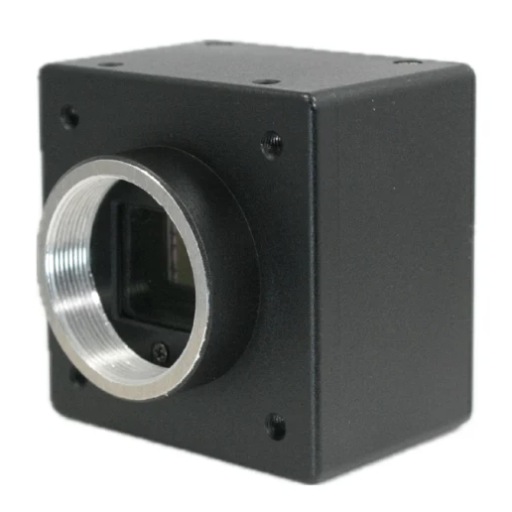

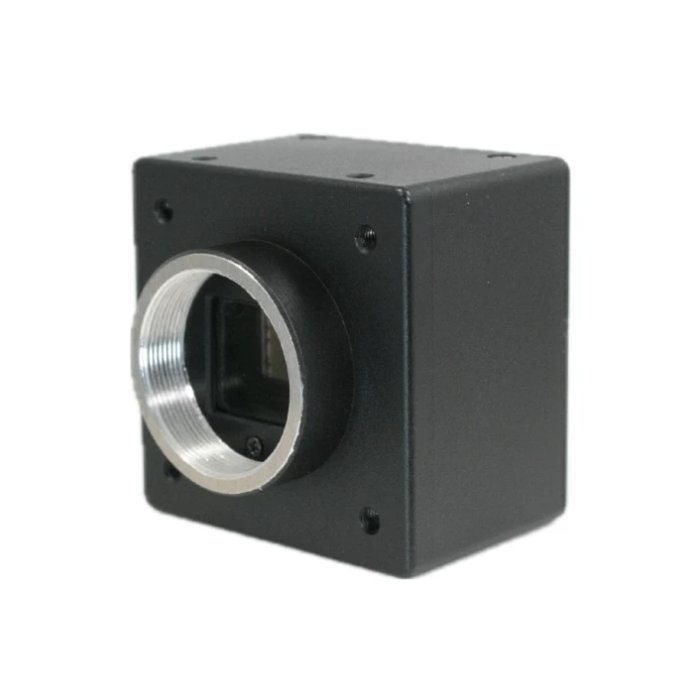

CIS VCC-12CXPHSR 1.1-inch CMOS 12 MP GMAX3412 CoaXPress CXP12 Global Shutter Color C Mount Camera
The CIS VCC-12CXPHSR is a Made in Japan, NDAA compliant 12-megapixel CoaXPress CXP-12 industrial camera engineered for high-speed, precision imaging in advanced machine vision and factory automation systems. Built with a 1.1" GMAX3412 global shutter CMOS sensor, this compact camera delivers crisp, low-noise images at up to 94 fps full resolution (4096 x 3072), ensuring superior image quality for demanding inspection and automation tasks.
The VCC12CXPHSR features a single-lane CoaXPress CXP-12 interface for ultra-fast data transfer and minimal latency, while Power over CoaXPress (PoCXP) reduces cabling complexity for streamlined integration. Its compact 47 × 47 × 31 mm form factor and C-mount lens compatibility make it ideal for space-limited setups. With ROI, binning, external trigger, and GenICam compatibility, this camera offers flexible performance across multiple imaging environments.
Features:
- Global shutter CMOS sensor
- CoaXPress CXP-12 single lane interface
- ROI and binning functionality
- External trigger mode support
- GenICam compatible
- C-mount
Applications:
- Machine Vision
- Factory Automation
- Semiconductor Inspection
- Medical Imaging
- Aerospace & Defense
- Pharmaceutical Inspection
- Automotive
- Electronics Inspection
- Traffic & ITS
- Scientific Research
| VCC-12CXPHSR | |
| Color/Mono | Color |
| Resolution | 12M |
| fps @ Max Resolution | 94fps |
| Sensor Model Name | GMAX3412 |
| Shutter Type | Global Shutter |
| Imager Size | 1.1" CMOS |
| Effective Pixels | 4096(H) × 3072(V) |
| Pixel Size (μm) | 3.4 × 3.4 |
| Power Requirement | PoCXP |
| Interface | CXP-12 |
| Lens Mount | C Mount |
| Weight (g) | TBD |
| Dimensions (W) x (H) x (D)mm | 47 x 47 x 31 |
