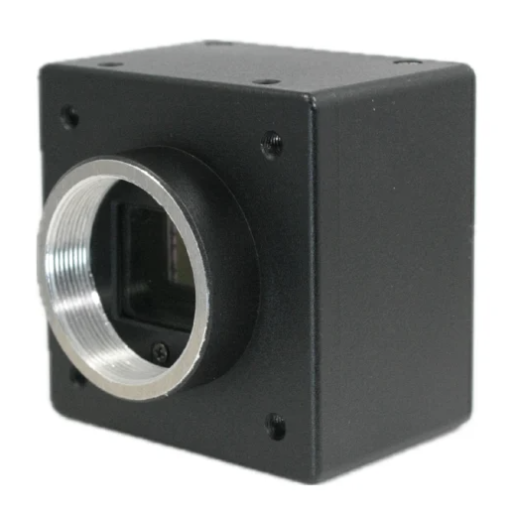

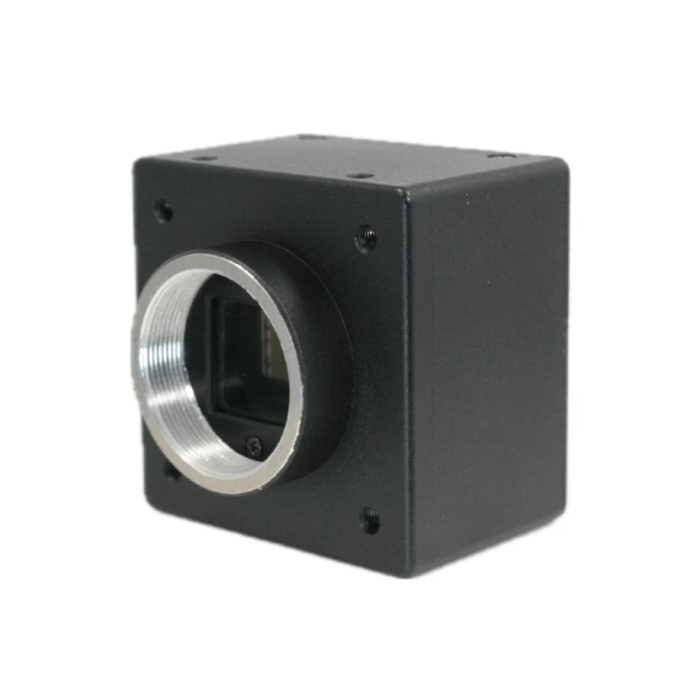

CIS VCC-12CXPHSM 1.1-inch CMOS 12 MP GMAX3412 CoaXPress CXP12 Global Shutter Monochrome C Mount Camera
The CIS VCC-12CXPHSM CoaXPress CXP-12 Camera is a Made in Japan, NDAA-compliant 12-megapixel machine vision camera engineered for precision imaging in industrial and scientific environments. Powered by a 1.1" GMAX3412 global shutter CMOS sensor, it delivers exceptional image clarity at 94 fps full resolution (4096 x 3072) with ultra-low latency and high dynamic range.
Built for demanding vision systems, the CIS VCC-12CXPHSM features a CXP-12 single-lane interface supporting Power over CoaXPress (PoCXP) for simplified integration and rapid data throughput. Its compact 47 x 47 x 31 mm aluminum body ensures easy installation in tight spaces while maintaining rugged reliability.
Engineered for flexibility, the camera supports C-mount lenses, ROI and binning functions, and external trigger modes. Fully GenICam compatible, it ensures seamless integration with leading machine vision software platforms.
Made in Japan to the highest quality standards and fully NDAA compliant, the VCC12CXPHSM is trusted for use in security, inspection, and government-approved imaging systems.
Features:
- Global shutter CMOS sensor
- CoaXPress CXP-12 single lane interface
- ROI and binning functionality
- External trigger mode support
- GenICam compatible
- C-mount
Applications:
- Machine Vision
- Factory Automation
- Industrial Inspection
- Scientific Imaging
- Medical Imaging
- Traffic Monitoring
- Aerospace & Defense
| VCC-12CXPHSM | |
| Color/Mono | Mono |
| Resolution | 12M |
| fps @ Max Resolution | 94fps |
| Sensor Model Name | GMAX3412 |
| Shutter Type | Global Shutter |
| Imager Size | 1.1" CMOS |
| Effective Pixels | 4096(H) × 3072(V) |
| Pixel Size (μm) | 3.4 × 3.4 |
| Power Requirement | PoCXP |
| Interface | CXP-12 |
| Lens Mount | C Mount |
| Weight (g) | TBD |
| Dimensions (W) x (H) x (D)mm | 47 x 47 x 31 |
