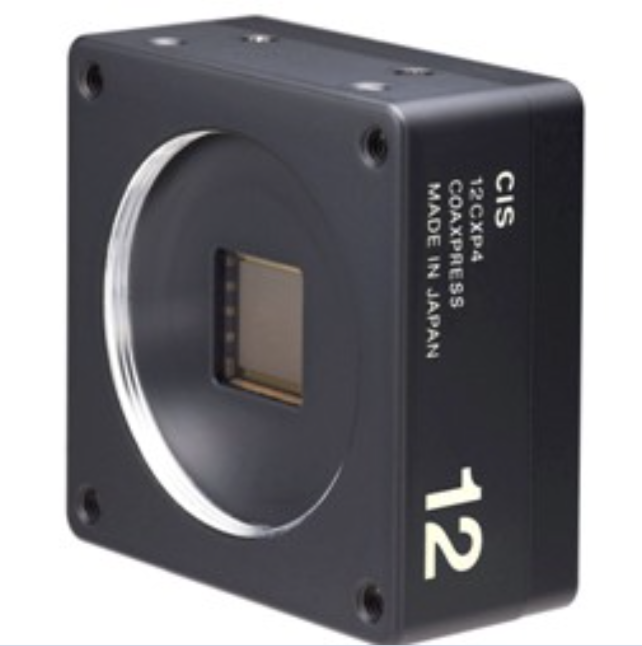

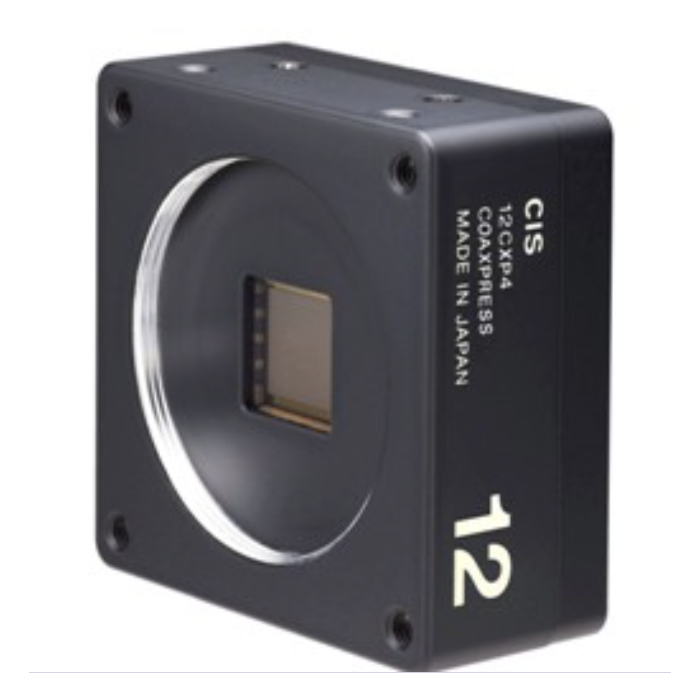

CIS VCC-12CXP4R 1.1 CMOS 12M CoaXPress Color Camera
The CIS VCC-12CXP4R is a 12-megapixel CoaXPress industrial camera engineered for precision machine vision and factory automation applications requiring high-speed data transfer and reliability. Made in Japan and fully NDAA compliant, this compact camera delivers superior image performance in a small 55mm × 55mm × 30mm footprint—ideal for inspection and OEM integration.
Built on a global shutter CMOS sensor, the VCC12CXP4R captures crisp, distortion-free images, supporting CoaXPress CXP3–CXP6 over 1 or 2 lanes. It complies with CoaXPress Version 1.1.1 and GenICam standards, ensuring reliable system compatibility and fast setup in industrial environments.
Advanced functions like trigger shutter control, ROI (Region of Interest), 2×2 binning (B/W models), defective pixel correction, shading correction, gain control, and Power over CoaXPress (PoCXP) enhance performance and flexibility for diverse imaging needs.
Features:
- Small footprint: 55mm(H) x 55mm(W) x 30mm(D)
- Global Shutter type CMOS sensor
- CoaXPress CXP3-CXP6 are supported.
- 2 lanes or 1 lane
- Exposure and Gain Settings
- External trigger mode (Fixed trigger shutter mode / Pulse width trigger shutter mode)
- GenICam complied
- M42 lens mount
Applications:
- Machine Vision
- Factory Automation
- Inspection Systems
- Industrial Imaging
| Mono/Color | Color |
| Resolution | 12M (4096 × 3000) |
| fps@Max. Resolution | 64.7(CXP 6 × 2lane 8bit) |
| Output Format | Mono 8 / Mono 10 / BayerRG8 / BayerRG10 |
| Sensor Model Name | IMX253 (Pregius) |
| Shutter Type | Global Shutter |
| Imager Size | 1.1 CMOS |
| Effective Pixels | 4096(H) × 3000(V) |
| Pixel Size (μm) | 3.45 × 3.45 |
| Pixel Clock (MHz) | 74.25M |
| Power Consumption | 4.8W |
| Power Requirement | PoCXP/EXT |
| Min. Illumination | F1.4 2.3 lx |
| Sensitivity | F5.6 2000lx |
| Interface | CXP-6 / CXP-3 x2, x1 |
| Lens Mount | M42 Mount |
| Weight (g) | 120ｇ |
| Dimensions (W) x (H) x (D)mm | 55 × 55 × 30 |
