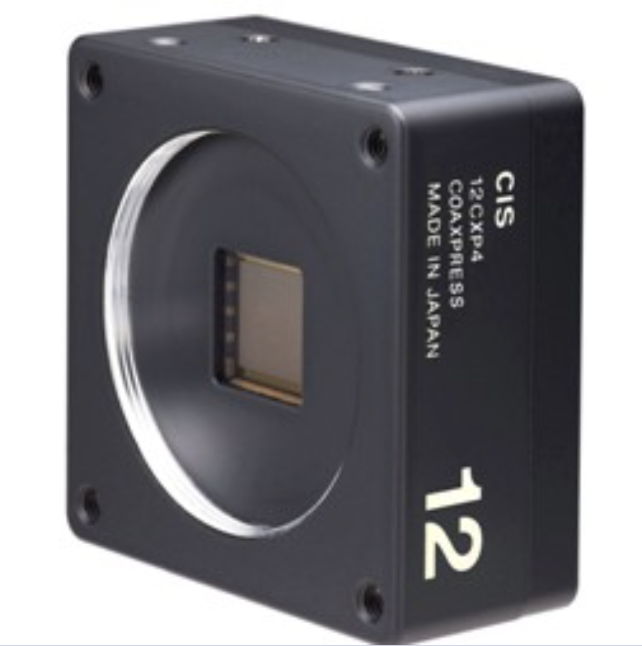

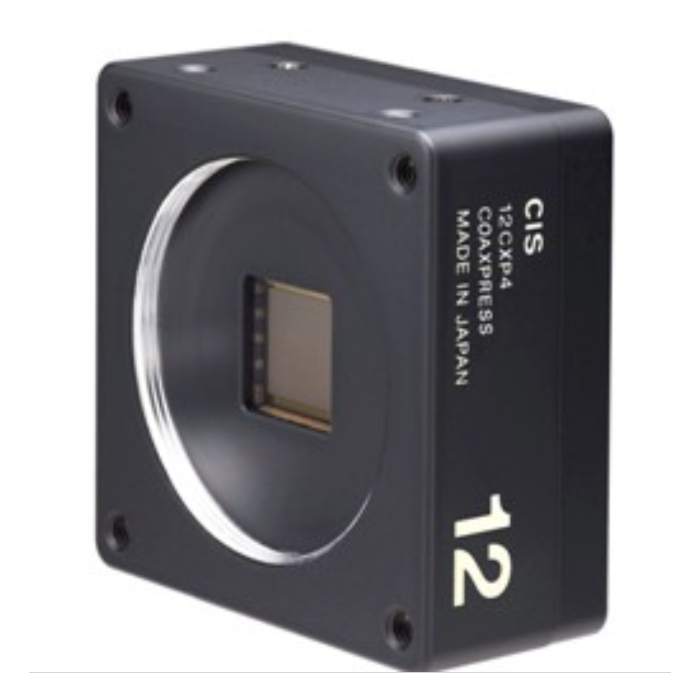

CIS VCC-12CXP4M 1.1 CMOS 12M CoaXPress Monochrome Camera
The CIS VCC-12CXP4M is a 12-megapixel CoaXPress machine vision camera expertly made in Japan and fully NDAA compliant for secure U.S. government and defense-related applications. Engineered for precision industrial inspection systems, this compact camera measures just 55mm (H) × 55mm (W) × 30mm (D) and delivers powerful, high-speed performance with exceptional image quality. Designed to meet the needs of advanced factory automation, robotics, and vision inspection environments, it complies with CoaXPress Version 1.1.1 standards and integrates seamlessly with modern vision systems.
Ideal for demanding OEM and system integrator applications, the VCC12CXP4M offers robust functionality including trigger shutter control, ROI, 2×2 binning (B/W model), defective pixel correction, shading correction, gain adjustment, and PoCXP support.
Features:
- Small footprint: 55mm(H) x 55mm(W) x 30mm(D)
- Global Shutter type CMOS sensor
- CoaXPress CXP3-CXP6 are supported.
- 2 lanes or 1 lane
- Exposure and Gain Settings
- External trigger mode (Fixed trigger shutter mode / Pulse width trigger shutter mode)
- GenICam complied
- M42 lens mount
Applications:
- Factory Automation
- Robotics Inspection
- Quality Control
- Machine Vision
| Mono/Color | Mono |
| Resolution | 12M (4096 × 3000) |
| fps@Max. Resolution | 64.7(CXP 6 × 2lane 8bit) |
| Output Format | Mono 8 / Mono 10 |
| Sensor Model Name | IMX253 (Pregius) |
| Shutter Type | Global Shutter |
| Imager Size | 1.1 CMOS |
| Effective Pixels | 4096(H) × 3000(V) |
| Pixel Size (μm) | 3.45 × 3.45 |
| Pixel Clock (MHz) | 74.25M |
| Power Consumption | 4.8W |
| Power Requirement | PoCXP/EXT |
| Min. Illumination | F1.4 0.18 lx |
| Sensitivity | F5.6 400lx |
| Interface | CXP-6 / CXP-3 x2, x1 |
| Lens Mount | M42 Mount |
| Weight (g) | 120ｇ |
| Dimensions (W) x (H) x (D)mm | 55 × 55 × 30 |
