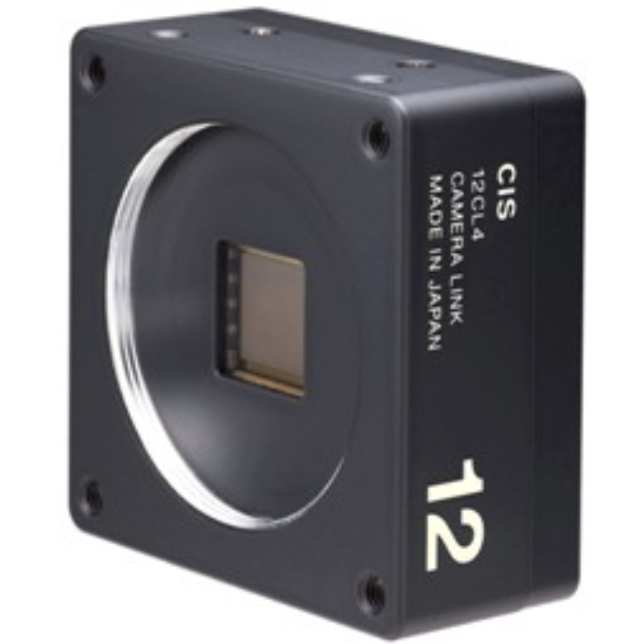

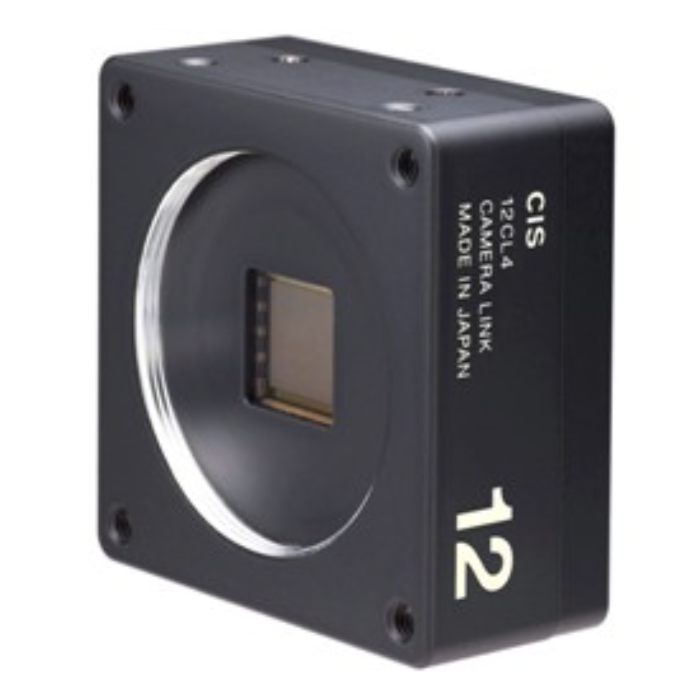

CIS VCC-12CL4R 1.1 CMOS Camera Link Color Camera
The CIS VCC-12CL4R is a high-performance 1.1" CMOS Camera Link color camera engineered for advanced industrial and machine vision systems. Made in Japan and fully NDAA compliant, this precision imaging solution ensures exceptional reliability and government-use certification for sensitive projects.
Built around Sony’s IMX253 global shutter CMOS sensor, the VCC12CL4R delivers ultra-sharp 12.29 megapixel resolution (4096 × 3000) with a 17.6mm diagonal size. It captures fast-moving objects without distortion, maintaining image clarity across production, inspection, and robotics workflows.
The camera supports multiple Camera Link standards (Base, Medium, Full, 8tap10bit, 10tap8bit) with impressive frame rates up to 62.984 fps. Its flexible fixed and pulse width trigger modes optimize performance across automation and precision imaging environments. Low power consumption (4.0W) and a compact 55 × 55 × 25mm design allow seamless system integration in space-limited setups.
Features:
- 12.29M pixels resolution
- Global shutter CMOS sensor
- Camera Link Base, Medium, Full, 8tap10bit, 10tap8bit supported
- Fixed and pulse width trigger modes
- High-speed imaging up to 62.984 fps
- Compact size: 55 x 55 x 25mm
- Low power consumption: 4.0W
Applications:
- Quality control and inspection
- High-speed production line monitoring
- Precision measurement and testing
- Automation and robotics
- Research and development
- Dynamic imaging in varying lighting conditions
| Color/Mono | Color |
| Resolution | 12.29M |
| fps @ Max Resolution | 62.984fps(10Tap8bit),53.294fps(8Tap10bit /8Tap FULL ),26.647fps(4Tap Medium),13.324fps(2Tap Base) |
| Sensor Model Name | IMX253 |
| Shutter Type | Global Shutter |
| Imager Size | 1.1 CMOS |
| Effective Pixels | 4096 × 3000 |
| Pixel Size (μm) | 3.45 x 3.45 |
| Power Consumption | 4.0W |
| Min Illumination | F1.4 2.3lx |
| Sensitivity | F5.6 2000lx |
| Interface | Camera Link |
| Lens Mount | M42 Mount |
| Weigth (g) | 100g |
| Dimensions (W) x (H) x (D)mm | 55 x 55 x 25 |
