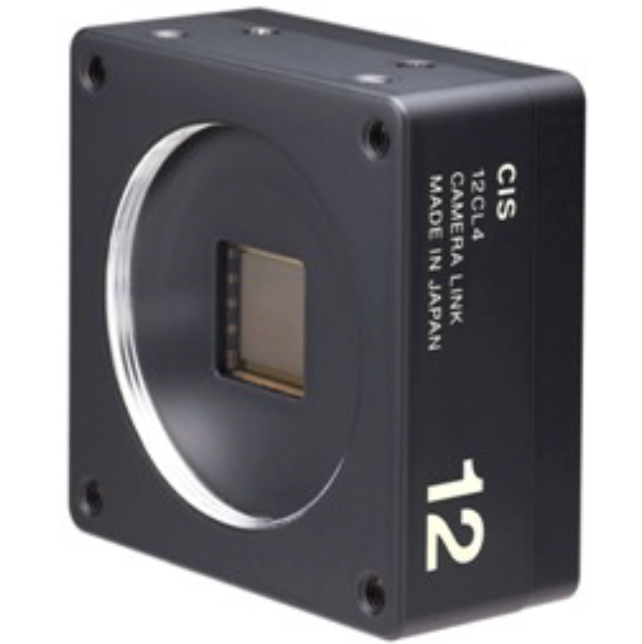

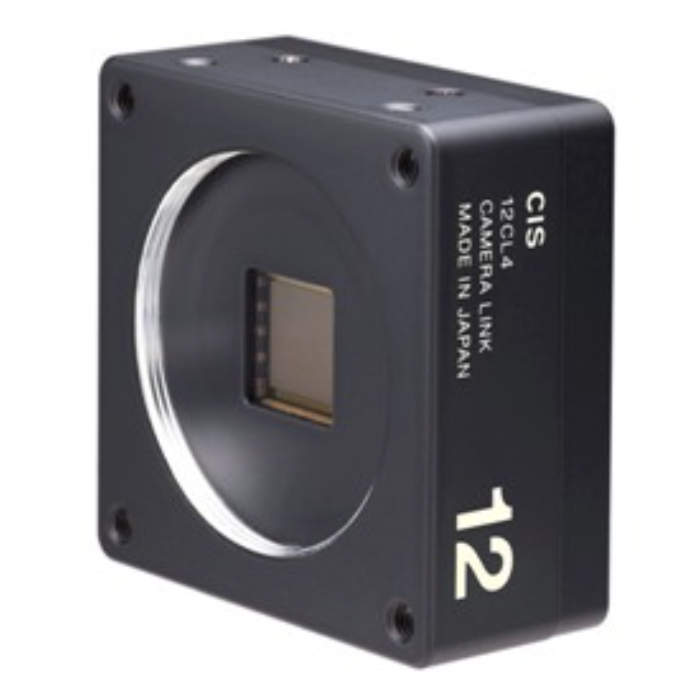

CIS VCC-12CL4M 1.1 CMOS Camera Link Monochrome Camera
The CIS VCC-12CL4M is a high-performance Camera Link monochrome camera engineered and made in Japan for superior precision, reliability, and compliance. Designed for demanding machine vision and industrial inspection systems, this NDAA compliant camera delivers outstanding results even in high-speed, mission-critical environments.
Featuring a 1.1-type CMOS global shutter sensor (Sony IMX253) with 12.29 megapixel resolution, the VCC-12CL4M captures ultra-clear, distortion-free images at up to 62.984 frames per second in full resolution. Its support for Camera Link Base, Medium, Full, 8tap10bit, and 10tap8bit modes ensures seamless integration with a variety of vision systems.
Engineered with a compact footprint (55 × 55 × 25 mm) and low 4.0W power consumption, the CIS VCC12CL4M is an ideal solution for OEMs and system integrators seeking high-precision performance backed by Japanese manufacturing quality and NDAA compliance.
Features:
- 12.29M pixel resolution
- Global shutter CMOS sensor (IMX253)
- Camera Link Base, Medium, Full, 8tap10bit, 10tap8bit support
- Frame rates up to 62.984 fps
- Fixed and pulse width trigger shutter modes
- Compact design (55 x 55 x 25 mm)
Applications:
- High-speed motion capture
- Precision quality control
- Manufacturing inspection
- Automated visual inspection
- Advanced imaging for research and development
| Color/Mono | Mono |
| Resolution | 12.29M |
| fps @ Max Resolution | 62.984fps(10Tap8bit),53.294fps(8Tap10bit /8Tap FULL ),26.647fps(4Tap Medium),13.324fps(2Tap Base) |
| Sensor Model Name | IMX253 |
| Shutter Type | Global Shutter |
| Imager Size | 1.1 CMOS |
| Effective Pixels | 4096 × 3000 |
| Pixel Size (μm) | 3.45 x 3.45 |
| Power Consumption | 4.0W |
| Min Illumination | F1.4 0.11 lx |
| Sensitivity | F5.6 400 lx |
| Interface | Camera Link |
| Lens Mount | M42 Mount |
| Weigth (g) | 100g |
| Dimensions (W) x (H) x (D)mm | 55 x 55 x 25 |
