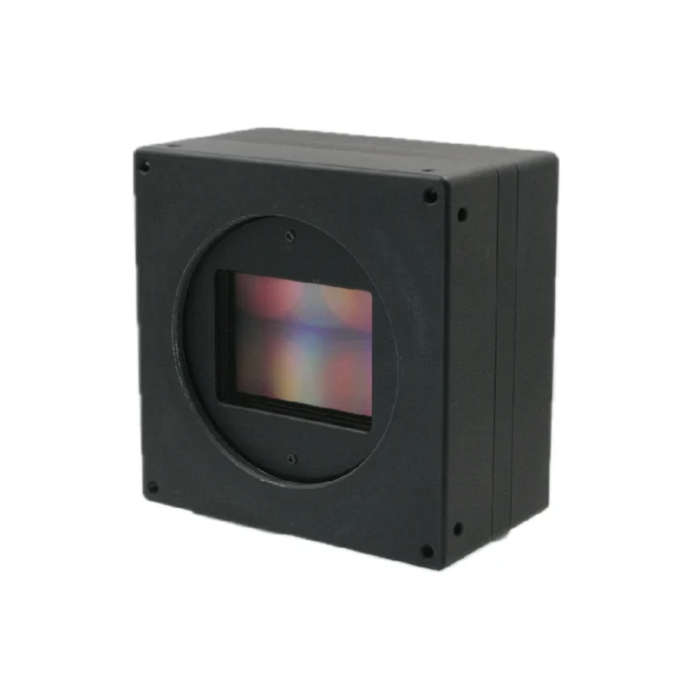

CIS VCC-127CXP6RHS 3.6 Global Shutter CMOS CoaXPress I/F Color M72 Mount Camera
The CIS VCC-127CXP6RHS is a 127-megapixel high-resolution color CMOS camera engineered in Japan and fully NDAA compliant, ensuring top-tier performance and trusted global manufacturing standards. Built around Sony’s cutting-edge IMX661 3.6-inch CMOS sensor, this camera delivers exceptional image fidelity for demanding machine vision, scientific, and industrial inspection applications.
Featuring a global shutter for precise motion imaging, the VCC-127CXP6RHS supports CoaXPress CXP-6 and CXP-12 interfaces (1-lane and 2-lane configurations) with Power over CoaXPress (PoCXP) for simplified cabling and power delivery. The M72 lens mount accommodates ultra-high-resolution optics, ensuring edge-to-edge image clarity.
Achieve 13408 × 9528-pixel resolution at up to 17.5 fps (CXP-12 x2) and optimize workflow using ROI (Region of Interest) selection for faster data throughput. With full GenICam compliance, external trigger modes (Fixed Trigger, Pulse Width Trigger), and adjustable exposure from 7.24µs to 15s, this camera offers precise control and integration flexibility.
Made in Japan for outstanding reliability and designed for high-precision imaging environments, the VCC127CXP6RHS combines NDAA compliance, long cable reach (up to 40m at CXP-6), and proven CIS engineering—making it ideal for mission-critical imaging systems.
Features:
- Global shutter CMOS sensor
- CoaXPress CXP-6 / CXP-12
- 1-lane / 2-lane support
- PoCXP (Power over CoaXPress)
- Maximum cable length: approx. 40m (at CXP-6)
- ROI (Region of Interest)
- Exposure and gain control
- External trigger synchronization modes (Fixed Trigger Shutter Mode, Pulse Width Trigger Shutter Mode)
- GenICam compatible
- M72 mount
Applications:
- Industrial Inspection
- Aerial Imaging
- Scientific Research
- Semiconductor Inspection
- Medical Imaging
- High-Resolution Microscopy
- Surveillance & Security
- Robotics & Automation
- Precision Metrology
- Machine Vision Systems
| VCC-127CXP6RHS | |
| Color/Mono | Color |
| Resolution | 120M (13408 × 9528) |
| fps @ Max Resolution | 17.5fps (CXP12 x 2) |
| Output Format | RGB８ / 10 / 12 / 14 |
| Sensor Model | IMX661 |
| Shutter Type | Global Shutter |
| Imager Size | 3.6 CMOS |
| Effective Pixels | 13408 × 9528 |
| Pixel Size (μm) | 3.45 × 3.45 |
| Pixel Clock (MHz) | 74.25 |
| Power Consumption | TBD |
| Power Requirement | PoCXP (Power over CoaXPress) |
| Min. Illumination | - |
| Sensitivity | - |
| Shutter Variable Range | 7.24[μs] ～ 15[s] |
| Interface | CXP6 / CXP12 |
| Lens Mount | M72 Mount |
| Weight (g) | TBD |
| Dimensions (W × H × D) mm | 100 × 100 × 80 |
