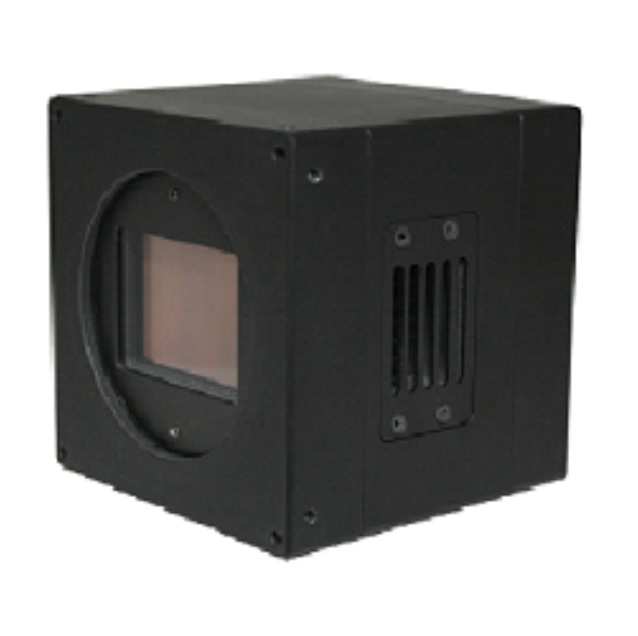

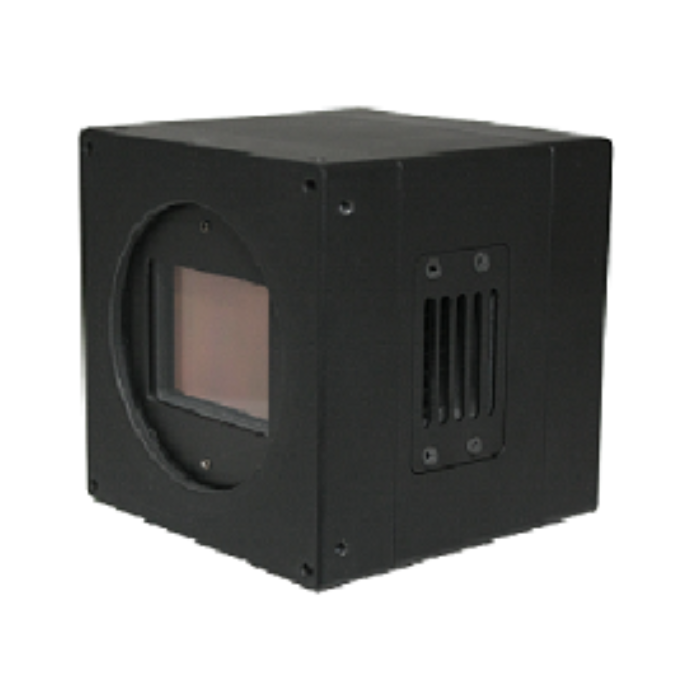

CIS VCC-127CXP6R 127M Color CoaXPress Camera
The CIS VCC-127CXP6R is a 127-megapixel industrial CMOS camera engineered and manufactured in Japan to deliver exceptional image precision and reliability. This NDAA-compliant CoaXPress camera features a global shutter sensor, CXP-6 interface, and support for 1 or 2-lane configurations for flexible integration into demanding machine vision and industrial automation systems.
Compact in design (100mm x 100mm x 100mm), the VCC127CXP6R supports data transmission up to 40m via CoaXPress and complies with CoaXPress Version 1.1.1. The camera includes advanced imaging controls such as trigger shutter, ROI, 2x2 binning, gain and exposure control, defective pixel and shading correction, flat field calibration, and PoCXP power. Ideal for high-precision inspection, measurement, and research imaging where security and reliability are essential.
Features:
- Global shutter, CMOS sensor
- CoaXPress CXP-6, CXP-12
- 1 lane, 2 lanes
- PoCXP
- Approx. 40m of Max. cable length at CXP-6
- ROI
- Exposure and Gain settings
- Flat field correction
- External trigger mode
- GenICam complied
- M72 mount
Applications:
- Machine Vision
- Medical Imaging
- Life Science
- Research
- Inspection
| Color/Mono | Color |
| Resolution | 127M（13408×9528) |
| fps @ Max Resolution | 4.6fps(CXP6×1), 9.2fps(CXP6×2/CXP12×1)、18.5fps(CXP12×2) |
| Output Format | Bayer 8/10/12/14 |
| Sensor Model Name | Pregius IMX661 |
| Shutter Type | Global Shutter |
| Imager Size | 3.6 CMOS(GS) |
| Effective Pixels | 13408 × 9528 |
| Pixel Size (μm) | 3.45 x 3.45 |
| Pixel Clock (MHz) | 74.25M |
| Power Consumption | TBD W (CXP-12) |
| Power Requirement | PoCXP |
| Min. Illumination | F3.5 2.37lx (Bayer14, Gain x64, ExposureTime 100000μs, level=50%) |
| F8 (2000lx, Bayer14, 100000μs) | |
| Interface | CXP-6/12 |
| Lens Mount | M72 Mount |
| Weight (g) | 940g |
| Dimensions (W) x (H) x (D)mm | 100 × 100 × 100 |
