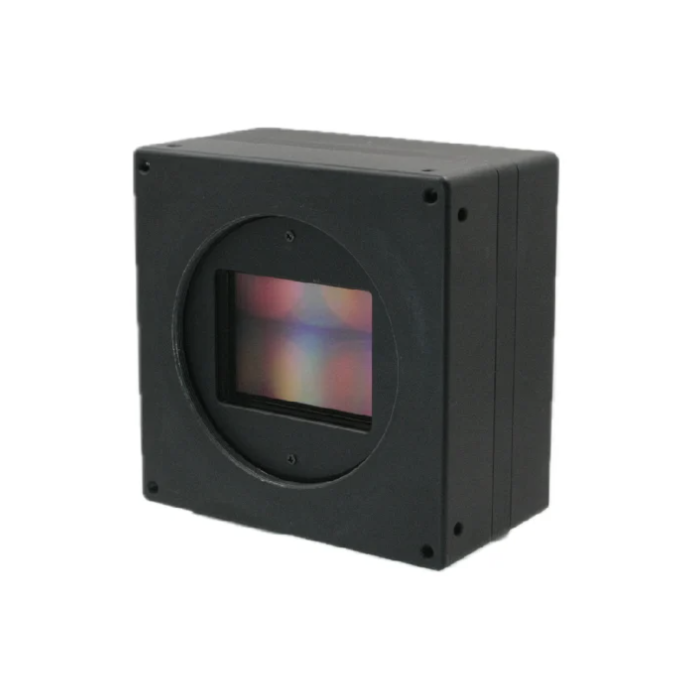

CIS VCC-127CXP6MHS 3.6 Global Shutter CMOS CoaXPress I/F Monochrome M72 Mount Camera
The CIS VCC-127CXP6MHS is a Made in Japan, NDAA-compliant 127-megapixel industrial CMOS camera crafted for ultra-high-resolution imaging and precision analysis. Featuring Sony’s 3.6-inch IMX661 Global Shutter CMOS sensor, this advanced model delivers 13408 × 9528 resolution at 17.5 fps via high-speed CoaXPress (CXP-12 x2) output. Ideal for mission-critical and U.S. government applications, it ensures top image fidelity and full NDAA compliance for secure integration.
Its CoaXPress CXP-6 / CXP-12 interface supports 1-lane and 2-lane configurations, enabling high-speed data transfer up to 40 meters (CXP-6). With Power over CoaXPress (PoCXP) capability, this model minimizes cabling complexity while enhancing system efficiency. It supports Region of Interest (ROI) adjustments, exposure and gain control, and multiple external trigger synchronization modes—including Fixed Trigger and Pulse Width Shutter Modes. Compliant with the GenICam standard and featuring an M72 lens mount, it achieves superior optical performance with a variable shutter speed range from 7.24 μs to 15 s and high sensitivity of F11 at 400lx.
Features:
- Global shutter CMOS sensor
- CoaXPress CXP-6 / CXP-12
- 1-lane / 2-lane support
- PoCXP (Power over CoaXPress)
- Maximum cable length: approx. 40m (at CXP-6)
- ROI (Region of Interest)
- Exposure and gain control
- External trigger synchronization modes (Fixed Trigger Shutter Mode, Pulse Width Trigger Shutter Mode)
- GenICam compatible
- M72 mount
Applications:
- Semiconductor Inspection
- Aerial Imaging & Mapping
- Automated Optical Inspection (AOI)
- Scientific Imaging
- Industrial Metrology
- Broadcast & Motion Capture
- Surveillance & Security
- High-Speed Industrial Automation
| VCC-127CXP6MHS | |
| Color/Mono | Mono |
| Resolution | 127M (13408 × 9528) |
| fps @ Max Resolution | 17.5fps (CXP12 x 2) |
| Output Format | Mono 8 / 10 / 12 / 14 |
| Sensor Model | IMX661 |
| Shutter Type | Global Shutter |
| Imager Size | 3.6 CMOS |
| Effective Pixels | 13408 × 9528 |
| Pixel Size (μm) | 3.45 × 3.45 |
| Pixel Clock (MHz) | 74.25 |
| Power Consumption | TBD |
| Power Requirement | PoCXP (Power over CoaXPress) |
| Min. Illumination | F3.5 0.35lx |
| Sensitivity | F11 400lx |
| Shutter Variable Range | 7.24[μs] ～ 15[s] |
| Interface | CXP6 / CXP12 |
| Lens Mount | M72 Mount |
| Weight (g) | TBD |
| Dimensions (W × H × D) mm | 100 × 100 × 80 |
