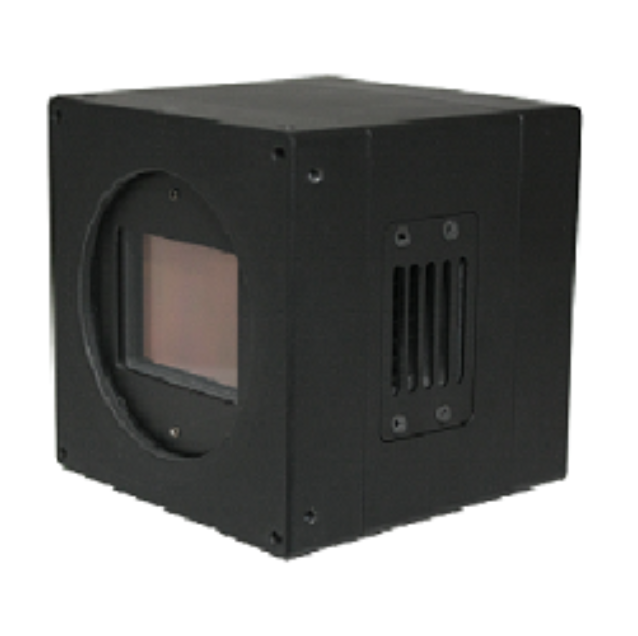

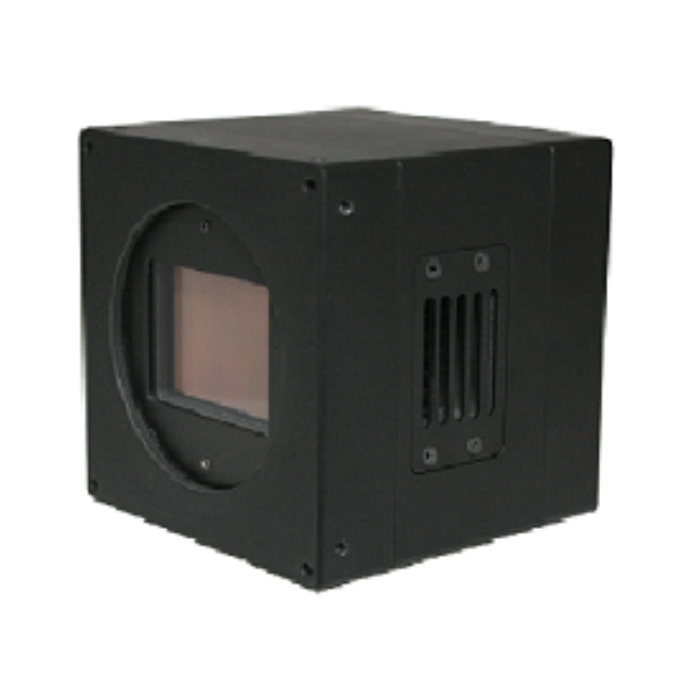

CIS VCC-127CXP6M 127M Monochrome CoaXPress Camera
The CIS VCC-127CXP6M is a 127-megapixel high-resolution CoaXPress camera engineered for precision industrial imaging. Made in Japan and fully NDAA compliant, this advanced machine vision camera delivers exceptional image clarity with a CMOS global shutter sensor and CoaXPress CXP-6/CXP-12 interface. Designed for high-performance inspection and imaging systems, it offers long-distance data transfer up to 40 meters and full GenICam compliance for seamless integration.
Ideal for demanding machine vision, production quality control, and scientific imaging, the VCC127CXP6M includes advanced correction functions such as shading, flat-field, and defective pixel correction, plus ROI, 2x2 binning, gain and gamma control, and PoCXP power support.
Features:
- Global shutter, CMOS sensor
- CoaXPress CXP-6, CXP-12
- 1 lane, 2 lanes
- PoCXP
- Approx. 40m of Max. cable length at CXP-6
- ROI
- Exposure and Gain settings
- Flat field correction
- External trigger mode
- GenICam complied
- M72 mount
Applications:
- Machine Vision
- Research Imaging
- Medical Imaging
- Inspection Systems
| Color/Mono | Mono |
| Resolution | 127M（13408×9528) |
| fps @ Max Resolution | 4.6fps(CXP6×1), 9.2fps(CXP6×2/CXP12×1)、18.5fps(CXP12×2) |
| Output Format | MONO 8/10/12/14 |
| Sensor Model Name | Pregius IMX661 |
| Shutter Type | Global Shutter |
| Imager Size | 3.6 CMOS(GS) |
| Effective Pixels | 13408 × 9528 |
| Pixel Size (μm) | 3.45 x 3.45 |
| Pixel Clock (MHz) | 74.25M |
| Power Consumption | TBD W (CXP-12) |
| Power Requirement | PoCXP |
| Min. Illumination | F3.5 0.35lx (Mono14, Gain x64, ExposureTime 100000μs, level=50%) |
| Sensitivity | F11 (400lx, Mono14, 100000μs ) |
| Interface | CXP-6/12 |
| Lens Mount | M72 Mount |
| Weight (g) | 940g |
| Dimensions (W) x (H) x (D)mm | 100 × 100 × 100 |
