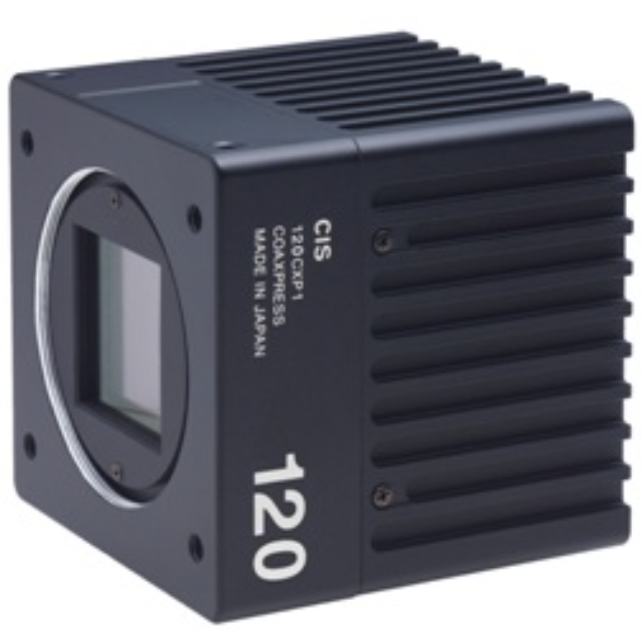

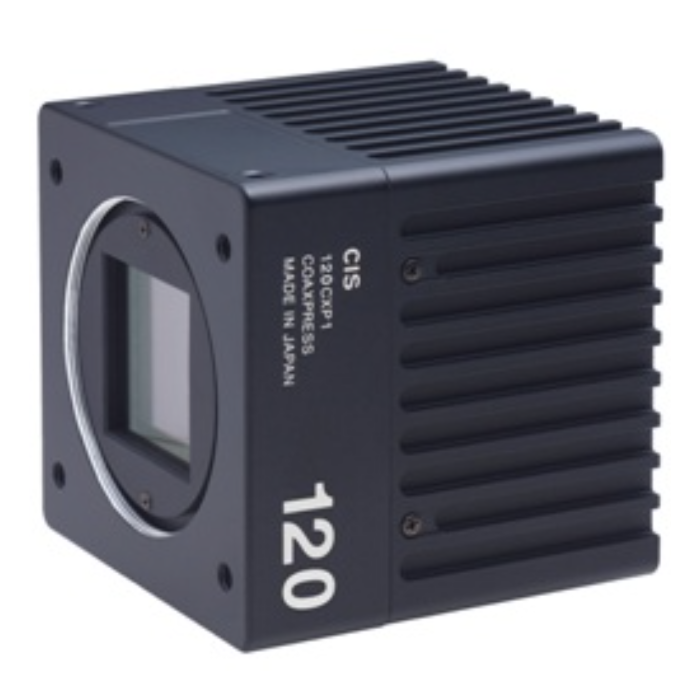

CIS VCC-120CXP1R Color CoaXPress 120MP Camera with 65mm CMOS, CXP-3/CXP-6 Interface, Rolling Shutter
Unlock ultra‑high‑resolution imaging performance with the CIS VCC‑120CXP1R, a 120‑megapixel CoaXPress industrial camera proudly made in Japan and fully NDAA compliant. Designed for precision‑critical machine vision, inspection, and scientific imaging, the VCC‑120CXP1R delivers unmatched clarity and reliability through advanced Japanese engineering.
Compact yet powerful (65 × 65 × 68 mm), the VCC120CXP1R supports CoaXPress v1.1.1 transmission up to 100 m at CXP‑3 or 40 m at CXP‑6, ensuring stable, high‑speed data transfer in any setup. Extensive controls for exposure, gain, shading correction, black‑level calibration, and noise reduction guarantee consistent image quality across diverse applications. Built with NDAA‑compliant components and premium Japanese craftsmanship, the VCC‑120CXP1R sets the gold standard for reliability and long‑term performance in professional imaging environments.
Features:
- 120 megapixel, rolling shutter CMOS sensor
- CoaXPress CXP-3 / CXP-6 interface
- 4 lane or 2 lane configuration
- Power over CoaXPress (PoCXP)
- Up to 40m cable length at CXP-6
- Region of Interest (ROI)
- Exposure and gain settings
- External trigger mode
- GenICam compliance
- M48 mount
Applications:
- Machine Inspection
- Medical Imaging
- Life Sciences
| Color/Mono | Color |
| Resolution | 120M (13264 x 9180) |
| fps @ Max Resolution | 9.39fps (CXP6_X4) |
| Output Format | Mono 8/10, BayerRG 8/10 |
| Sensor Model Name | 120MXS |
| Shutter Type | Rolling Shutter |
| Imager Size | APS-H CMOS |
| Effective Pixels | 13264 × 9180 |
| Pixel Size (μm) | 2.2 x 2.2 |
| Pixel Clock (MHz) | 1152M |
| Power Consumption | 7.0W (CXP6_X4) |
| Power Requirement | PoCXP/EXT |
| Min. Illumination | F2.6 42lx |
| Sensitivity | F2.6 2000lx |
| Shutter Variable Range | 46～4999996[μs] |
| Interface | CXP6 / CXP3 |
| Lens Mount | M48 Mount |
| Weight (g) | 300g |
| Dimensions (W) x (H) x (D)mm | 65 × 65 × 68 |
