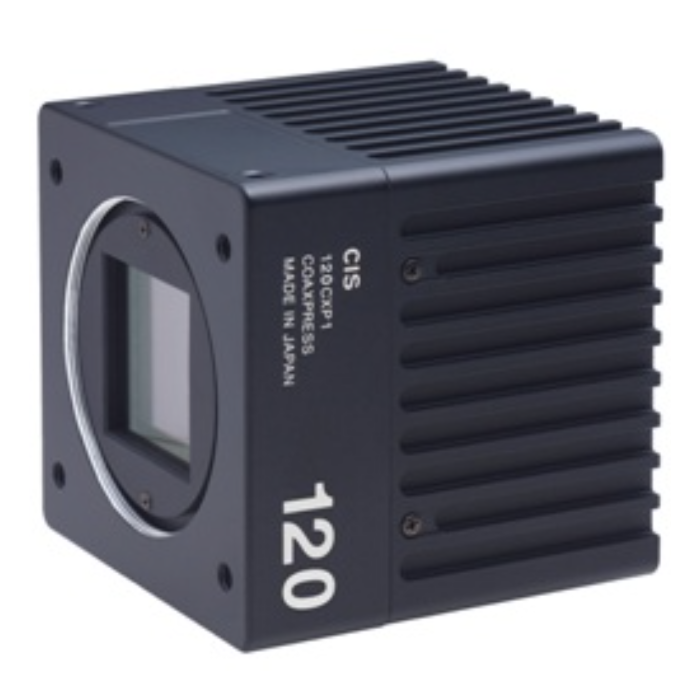

CIS VCC-120CXP1M CoaXPress 120MP Monochrome CMOS Camera, CXP-3/CXP-6 Interface, GenICam Compliant, 65×65×68mm, M48 Mount
SKU
VCC-120CXP1M
Quick Overview
The CIS VCC-120CXP1M is a 120MP CoaXPress Machine Vision Camera made in Japan and NDAA compliant, designed for precise industrial, scientific, and life science imaging.
Experience precision imaging excellence with the CIS VCC-120CXP1M, a 120-megapixel CoaXPress CMOS camera engineered in Japan for high-performance machine vision and industrial inspection. Built with NDAA-compliant components, this camera ensures secure, reliable integration into U.S. government and defense-approved systems.
The VCC-120CXP1M delivers exceptional image clarity and accuracy through its advanced 120M CMOS sensor and 4-lane/2-lane CoaXPress interface, supporting ultra-high data throughput. Designed for demanding industrial, scientific, and life science applications, it features robust construction, long cable support, and full GenICam compatibility for seamless system integration.
Features:
- 120M pixel CMOS sensor (rolling shutter)
- CoaXPress CXP-3/CXP-6, 4-lane or 2-lane outputs
- Long cable support: Up to 40m (CXP-6), 100m (CXP-3)
- External trigger, ROI, exposure/gain control
- PoCXP, GenICam compliant, compact 65×65×68mm
- M48 lens mount
- Comprehensive image adjustments: gain, shading, noise filter, black level
Applications:
- Electronics Inspection
- Semiconductor Quality
- Life Science Imaging
- Medical Diagnostics
- Industrial Metrology
- Scientific Research
| Color/Mono | Mono |
| Resolution | 120M (13264 x 9180) |
| fps @ Max Resolution | 9.39fps (CXP6_X4) |
| Output Format | Mono 8/10 |
| Sensor Model Name | 120MXS |
| Shutter Type | Rolling Shutter |
| Imager Size | APS-H CMOS |
| Effective Pixels | 13264 × 9180 |
| Pixel Size (μm) | 2.2 x 2.2 |
| Pixel Clock (MHz) | 1152M |
| Power Consumption | 7.0W (CXP6_X4) |
| Power Requirement | PoCXP/EXT |
| Min. Illumination | F2.6 3.5lx |
| Sensitivity | F4.0 400lx |
| Shutter Variable Range | 46～4999996[μs] |
| Interface | CXP6 / CXP3 |
| Lens Mount | M48 Mount |
| Weight (g) | 300g |
| Dimensions (W) x (H) x (D)mm | 65 × 65 × 68 |
