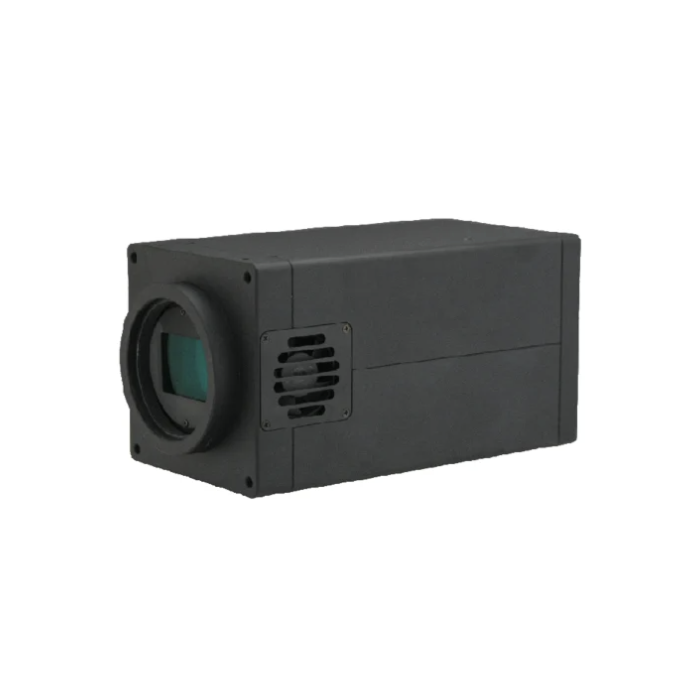

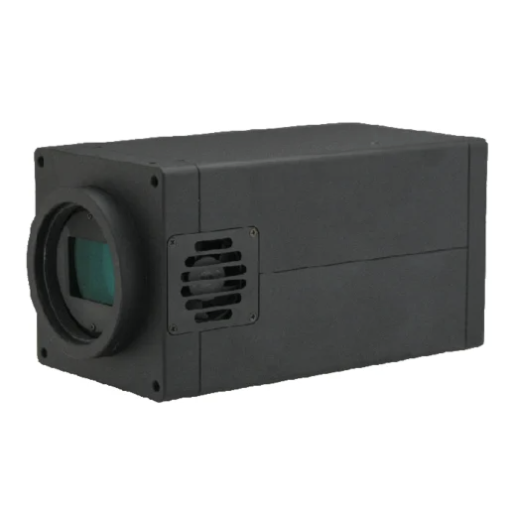

CIS VCC-10CoF2M 10MP Ultra-Fast CoaXPress-over-Fiber Monochrome Camera

The CIS VCC-10CoF2M is a high-performance 10-megapixel monochrome CoaXPress-over-Fiber industrial camera designed for ultra-fast machine vision, robotics, high-speed inspection, scientific imaging, AI vision systems, motion analysis, and advanced automation applications. Built around a Gpixel GSPRINT4510 4/3-inch global shutter CMOS sensor, this camera delivers exceptional image capture speed, high resolution, and long-distance fiber-based transmission in one rugged industrial platform.

With a full-resolution output of 4608 × 2176 at up to 1098 fps, the VCC-10CoF2M is engineered for demanding applications where standard area scan cameras cannot keep up. When using ROI settings, the camera can achieve a maximum frame rate of approximately 92,000 fps, making it an excellent choice for high-speed defect detection, production line inspection, material analysis, robotics guidance, precision measurement, and event capture where timing is critical.

The CoaXPress-over-Fiber interface uses QSFP28 100Gbps connectivity, enabling ultra-high-speed image transmission over longer distances compared to traditional copper-based camera interfaces. This makes the VCC-10CoF2M ideal for high-bandwidth machine vision systems, distributed inspection equipment, remote camera placement, and installations requiring reliable fiber transmission with reduced signal limitations.

Featuring a global shutter sensor, 4.5 μm × 4.5 μm pixels, ROI control, 2×2 binning, and defective pixel correction, the CIS VCC-10CoF2M provides the speed, image quality, and configuration flexibility needed for advanced industrial imaging environments. Its TFL-II lens mount, compact 80 × 80 × 150 mm body, and robust 1,050 g construction make it suitable for professional machine vision integration, automated inspection systems, laboratory imaging, and high-speed manufacturing applications.

Key Features:

• 10MP monochrome imaging with 4608 × 2176 resolution
• Ultra-fast full-resolution output up to 1098 fps
• ROI frame rates up to approximately 92,000 fps
• CoaXPress-over-Fiber interface for high-speed, long-distance transmission
• QSFP28 100Gbps connectivity for high-bandwidth image transfer
• Gpixel GSPRINT4510 4/3-inch CMOS sensor
• Global shutter technology for capturing fast-moving objects with reduced distortion
• 4.5 μm × 4.5 μm pixel size for high-performance image capture
• ROI support for faster frame rates and focused inspection areas
• 2×2 binning for improved sensitivity and flexible imaging setup
• Defective pixel correction for cleaner, more reliable image output
• TFL-II lens mount for industrial lens compatibility
• Compact industrial body measuring 80 × 80 × 150 mm
• Ideal for high-speed machine vision, automation, robotics, scientific imaging, and advanced inspection systems

Applications:

• High-speed machine vision inspection
• Semiconductor and electronics inspection
• Factory automation and production line monitoring
• Robotics vision and motion analysis
• AI inspection and deep learning image capture
• Scientific imaging and laboratory research
• Material testing and deformation analysis
• Ballistics, impact, and event capture
• High-speed packaging inspection
• Web inspection for film, paper, foil, and textiles
• Precision measurement and metrology
• Automated defect detection
• Traffic, transportation, and intelligent monitoring systems
• Aerospace, UAV, and defense imaging applications
• Remote camera installations requiring long-distance fiber transmission
