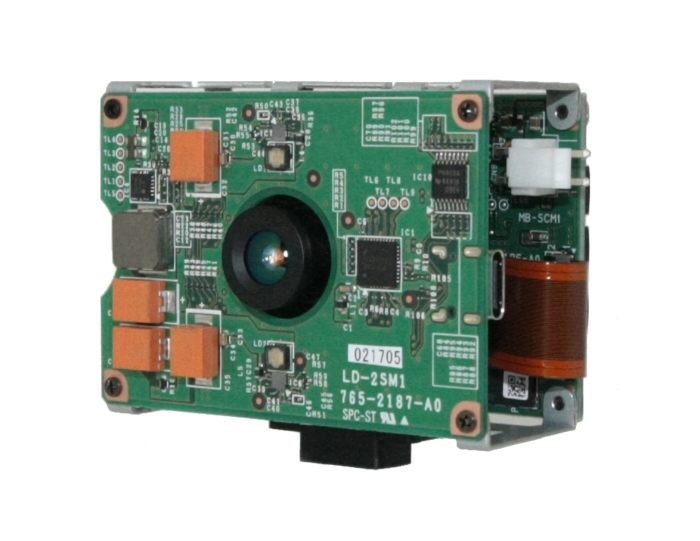

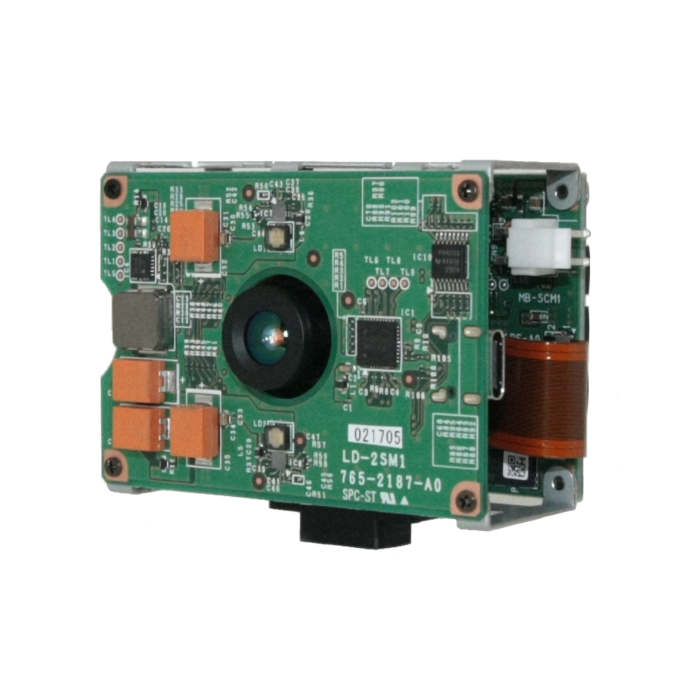

CIS SCM-ToF1 USB3.0 1/4.5 CMOS IMX570 Monochrome M12 Mount AI Equipped Camera

The CIS SCM-ToF1 is an advanced AI-powered Time-of-Flight (ToF) depth camera engineered for precision automation, robotics, and industrial integration. Made in Japan and fully NDAA compliant, this compact, lightweight device offers exceptional performance and regulatory reliability for government, defense, and enterprise applications seeking secure, high-quality imaging components.

Powered by the NXP i.MX 8M Plus application processor, the CIS SCM-ToF1 delivers high-speed, accurate depth sensing with a 1/4.5-inch global shutter CMOS sensor and VGA resolution (640×480). It supports a ranging distance of 0.4 to 6 meters at 15 fps, enabling smooth, real-time 3D perception in challenging environments.

With a USB 3.0 interface and optional micro HDMI and 1000BASE-T Ethernet (I/F board) connectivity, this Time-of-Flight camera ensures versatile integration into systems including AGVs, AMRs, and advanced robotic vision setups. Its M12 lens mount, low power consumption, and 90 g lightweight form factor provide flexibility and efficiency for embedded vision development.

Built on the craftsmanship and quality that define Japanese engineering, the CIS SCMToF1 ToF camera ensures robust durability, long-term reliability, and secure operation compliant with NDAA standards—making it a trusted solution for U.S. government and enterprise projects.

Features:

• i.MX 8M Plus, a high-performance application processor from NXP Semiconductors
• CMOS sensor for ToF camera
• Ranging range: 0.4~6m
• Supports micro HDMI and 1000BASE-T Ethernet by adding an optional I/F board
• M12 lens mount
  ※i.MX8M Plus is a registered trademark of NXP Semiconductors N.V.

Applications:

• AGVs (Automatic Guided Vehicles)
• AMRs (Autonomous Mobile Robots)
• Object Tracking
• Obstacle Detection
• Fruit Picking Robots
• Loading Recognition
• Intrusion Detection
