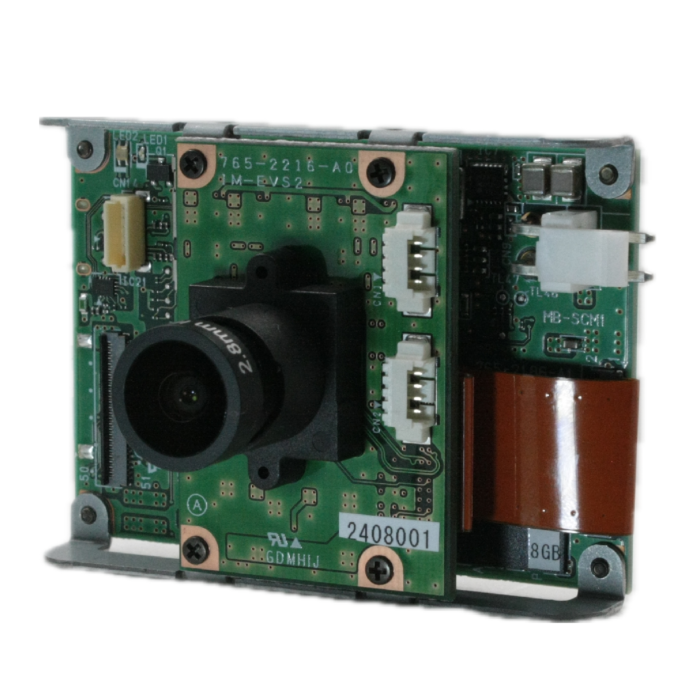

CIS SCM-EVS1 VGA 1/5 CMOS GenX320 USB3.0 EVS Monochrome S/M12 Mount AI Equipped Camera
The CIS SCM-EVS1 is an NDAA-compliant smart camera made in Japan, designed for precision event-based vision and real-time industrial automation.
Harness advanced industrial vision performance with the CIS SCM-EVS1, an AI-powered monochrome smart camera made in Japan and fully NDAA compliant for secure, government-approved deployments. Designed for high-speed inspection, automation, and motion analysis, the SCM-EVS1 integrates the NXP i.MX 8M Plus processor with Prophesee’s event-based vision sensor to deliver precise, real-time imaging with ultra-low latency and minimal data output—ideal for Industry 4.0 and edge AI applications.
Engineered for reliability and efficiency, this Japanese‑made AI smart camera intelligently captures only the moments that matter, producing crisp 320 × 320 monochrome resolution imagery at an effective 10,000 fps temporal rate. With a USB 3.0 interface, M12 lens mount, and wide dynamic range, the SCM-EVS1 ensures consistent performance in challenging environments, outperforming traditional frame-based imaging systems.
Features:
- NXP i.MX 8M Plus high-performance processor
- Prophesee event-based vision technology
- Mono 320 x 320 resolution
- Ultra-high temporal resolution (10K fps equivalent)
- Wide dynamic range sensor
- USB 3.0 interface (optional HDMI/Ethernet)
- M12 lens mount for flexible optics
- Low bandwidth data, efficient real-time output
Applications:
- Droplet Monitoring
- Motion Capture
- Intrusion Detection
- Light Compensation
- Quality Inspection
| Color/Mono | Mono |
| Resolution | 320 x 320 |
| Sensor Model Name | GenX320 |
| Imager Size | 1/5 CMOS |
| Effective Pixels | 320(H) × 320(V) |
| Pixel Size (μm) | 6.3 × 6.3 |
| Power Requirement | DC+12V±10% |
| Interface | USB3.0 (option)microHDMI/1000BASE-T Ethernet |
| Lens Mount | S / M12 Mount |
| Weight (g) | 110 |
| Dimensions (W) x (H) x (D)mm | 83.5 x 48 x 45.8 83.5 x 48 x 64.4 (with I/F board) |
