CIS SCM-8M1 USB3.0 1/2.8 CMOS IMX715 Color M12 Mount AI Equipped Camera

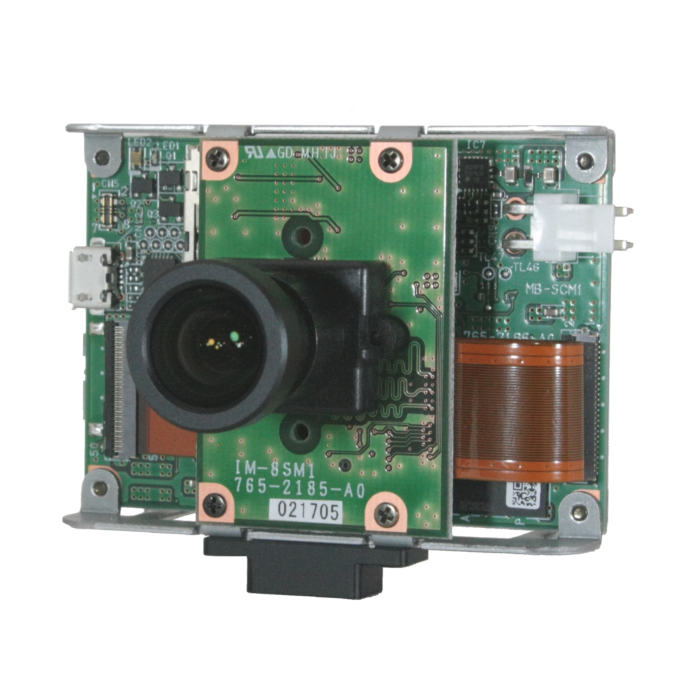

The CIS SCM‑8M1 is a compact, high‑performance 8MP industrial camera made in Japan and fully NDAA compliant. Engineered for real‑time AI‑driven imaging, it integrates the powerful NXP i.MX 8M Plus AI processor for advanced edge computing applications including object recognition, skeletal estimation, intrusion detection, and face recognition.
Built around the Sony IMX715 1/2.8" Rolling Shutter CMOS sensor, this camera delivers crisp 8MP (3860×2190) resolution at 30fps, ensuring detail‑rich image capture. Its USB 3.0 interface supports fast data transfer, and optional expansion for micro HDMI and 1000BASE‑T Ethernet allows seamless system integration. The M12 lens mount offers optical flexibility, while its lightweight 80g housing and compact 65×48×44 mm design make it ideal for embedded or space‑constrained environments.
Manufactured in Japan to strict quality standards, the SCM‑8M1 provides stable 12 V DC ±10% power operation and NDAA‑compliant assurance for government and defense applications.
Features:
- i.MX 8M Plus, a high-performance application processor from NXP Semiconductors
- Rolling shutter type CMOS sensor
- USB 3.0 interface
- Supports micro HDMI and 1000BASE-T Ethernet by adding an optional I/F board
- M12 lens mount
※i.MX8M Plus is a registered trademark of NXP Semiconductors N.V.
Applications:
- Object Recognition
- Object Tracking
- Skeletal Estimation
- Obstacle Detection
- Intrusion Detection
- Face Recognition
- AI Vision Processing
| SCM-8M1 | |
| Color/Mono | Color |
| Resolution | 8M |
| fps@Max. Resolution | 30fps |
| Sensor Model Name | IMX715 |
| Shutter Type | Rolling Shutter |
| Imager Size | 1/2.8 CMOS |
| Effective Pixels | 3860(H) × 2190(V) |
| Pixel Size (μm) | 1.45 |
| Power Requirement | DC+12V±10% |
| Interface | USB3.0 (option)microHDMI/1000BASE-T Ethernet |
| Lens Mount | M12 Mount |
| Weight (g) | 80 |
| Dimensions (W) x (H) x (D) mm | 65 x 48 x 44 65 x 48 x 62.5 (with I/F board) |
