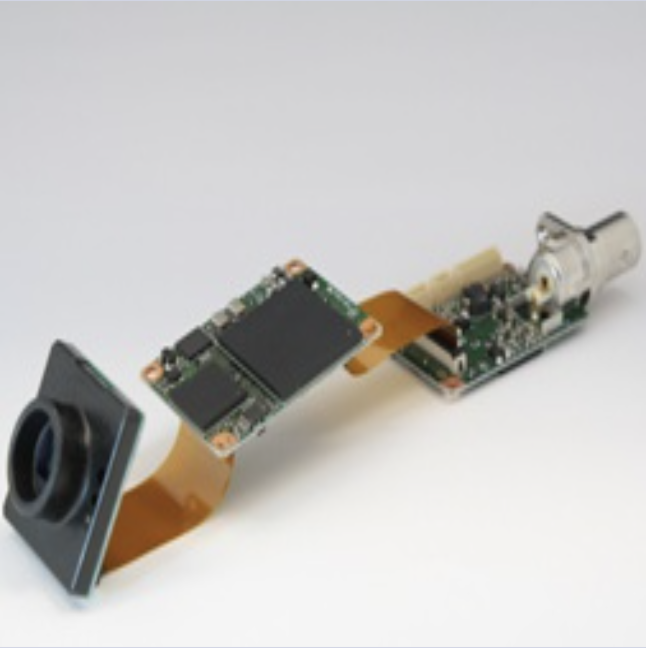

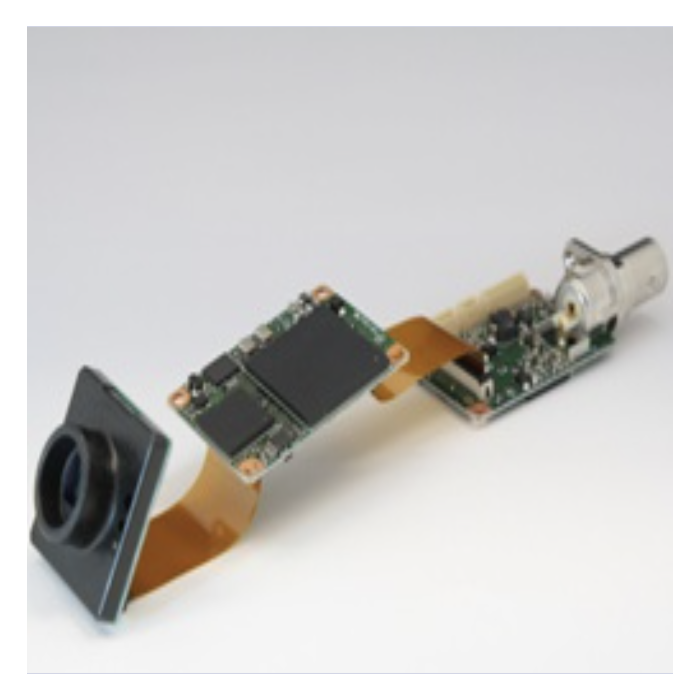

CIS DCC-HD3N 1/1.8 CMOS Full HD-SDI Color Global Shutter Camera
CIS DCC-HD3N – Made in Japan, NDAA compliant Full HD 60p 3G-SDI camera with Clairvu™ ISP for superb image quality. Compact design for broadcast, inspection, and machine vision applications.
The CIS DCC-HD3N is a high-performance Full HD 60p camera engineered and Made in Japan for exceptional reliability, image clarity, and precision. Built with NDAA compliance, it meets U.S. government procurement standards without compromising on imaging performance.
Featuring the CIS original ISP Clairvu™, the DCC-HD3N delivers superb imaging quality and ultra-fast signal processing in a compact 29×29×77mm housing. Designed for professional broadcast, inspection, and machine vision applications, this camera ensures uncompressed transmission of 3G-SDI video through a single coaxial cable.
Comprehensive image controls such as Auto Exposure, AWB, Color Correction, Edge Enhancement, Noise Reduction, and Gamma adjustment can be fine-tuned remotely. Available with or without casing, this model is ideal for OEM integration and system design flexibility.
Features:
- Gen Lock function (3-values analogue signals or black burst)
- 1080p, 60fps Full HD
- 1080p/1080i/720p read out
- 3G SDI I/F (HD SDI supported)
- CIS ISP for various function
- OSD function
- Remote control unit (RU-100) is prepared
Applications:
- Broadcast
- Machine Vision
- Inspection
| Color/Mono | Color |
| Resolution | 1920 x 1080 |
| Output Format | 1080p/1080i/720p |
| Sensor Model Name | IMX265 (Pregius) |
| Shutter Type | Global Shutter |
| Image Size | 1/1.8 CMOS |
| Effective Pixels | 2064 × 1544 |
| Unit Cell Size (μm) | 3.45 ×3.45 |
| Power Consumption | 4.0W |
| Power Requirement | DC+9～+15V |
| Minimum Illumination | DC+9～+15V |
| Sensitivity | F5.6 2000lx |
| Shutter Variable Range | 1/25s ～ 1/13600s |
| Interface | 3G SDI, HD-SDI |
| Lens Mount | - |
| Weight | 26g |
| Dimensions (W) x (H) x (D)mm | - |
