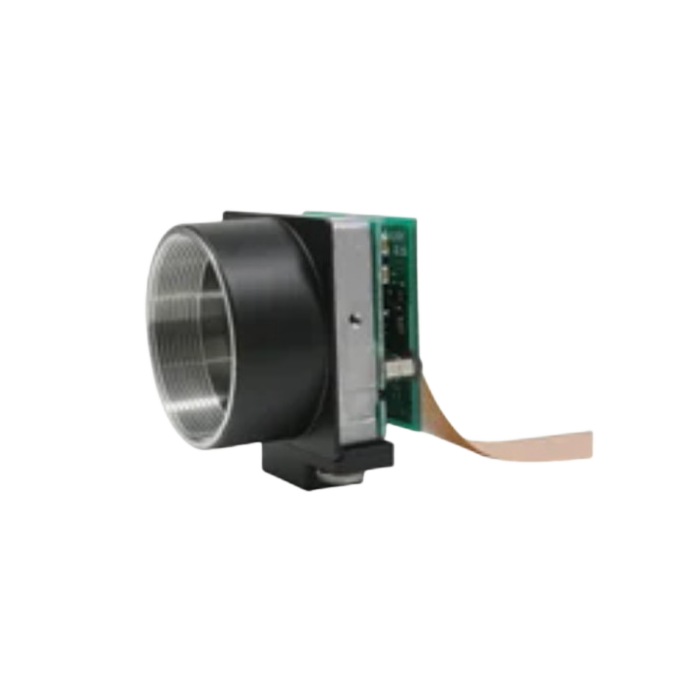

CIS DCC-5SLEC1R 1/1.8 Type 5.1 MP Global Shutter CMOS IMX547 Sensor SLVS-EC I/F Color Board Camera
The CIS DCC-5SLEC1R is a Made in Japan, NDAA compliant SLVS-EC interface camera engineered for high-speed, precision imaging applications. Powered by the Sony IMX547 global shutter CMOS sensor, this 5.1-megapixel camera (2472 × 2064) delivers distortion-free motion capture and exceptional image clarity for industrial, scientific, and robotics tasks.
Designed for seamless integration with the AMD Kria™ KR260 development kit, the DCC-5SLEC1R includes a high-quality flex cable for direct connectivity and optimized performance. With SLVS-EC high-speed data transfer capabilities, it achieves 122 fps at 8/10-bit and 82 fps at 12-bit, supporting demanding imaging workflows with ultra-low latency.
The camera features a C-mount lens interface, compact housing (29 × 35 × 27 mm, 25 g), and an included tripod mount for flexible installation. Operating efficiency is maximized through low power consumption (1.0 W at +3.8V / +1.8V), suitable for continuous deployment in embedded or industrial systems.
For advanced imaging control, pair the DCC-5SLEC1R with AMD PYNQ™ via Clairvu™ ISP (sold separately) to unlock full customization for both prototyping and production.
Manufactured in Japan with rigorous quality standards, the CIS DCC-5SLEC1R ensures reliability, performance consistency, and full NDAA compliance, making it ideal for secure and regulated vision applications.
Features:
- 5.1MP Resolution: 2472 × 2064 effective pixels with 2.74 µm pixel size
- IMX547 Global Shutter Sensor: 1/1.8" CMOS for precise motion capture
- High Frame Rate: Up to 122 fps (8/10-bit), 82 fps (12-bit)
- SLVS-EC Interface: High-speed, low-latency data transfer
- Compact & Lightweight: 29 × 35 × 27 mm, 25 g
- Low Power Consumption: 1.0 W at +3.8V / +1.8V
- AMD Kria™ KR260 Compatibility: Flex cable included for direct connection
- C-Mount Design: Broad lens compatibility
- Tripod Mount Included: Flexible mounting options
- PYNQ™ Support: Advanced control via Clairvu™ ISP (sold separately)
Applications:
- Industrial vision systems
- Robotics and automation
- Scientific imaging
- High-speed object tracking
- Precision inspection
- Prototyping and R&D
| Color/Mono | Color |
| Resolution | 5.1M (2472 × 2064) |
| fps @ Max Resolution | 8bit:122fps / 10bit:122fps / 12bit:82fps SLVS-EC output |
| Sensor Model Name | IMX547 |
| Shutter Type | Global Shutter |
| Imager Size | 1/1.8 CMOS |
| Effective Pixels | 2472 × 2064 |
| Pixel Size (μm) | 2.74 ×2.74 |
| Pixel Clock (MHz) | 74.25 |
| Power Consumption | 1.0 W |
| Power Requirement | SLVS-EC |
| Lens Mount | C |
| Weight (g) | 25 |
| Dimensions (W) x (H) x (D)mm | 29 x 35 x 27mm |
