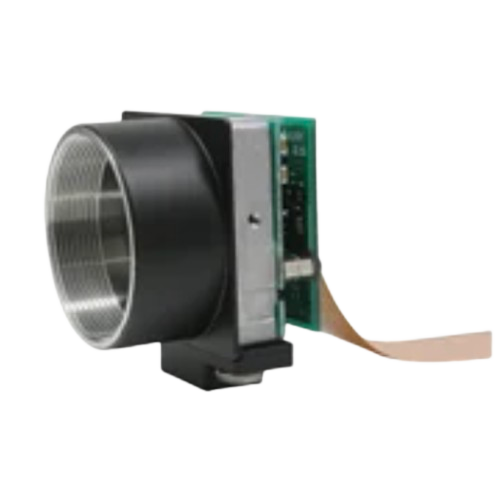

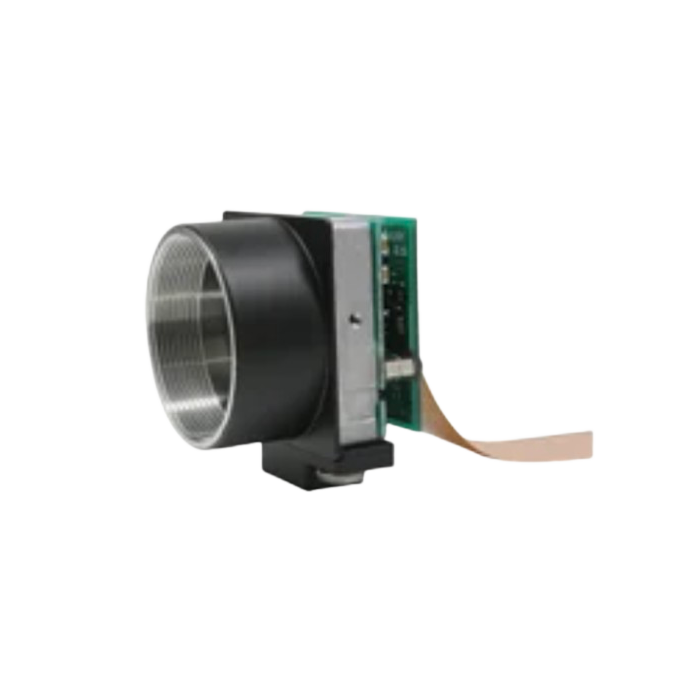

CIS DCC-5SLEC1M 1/1.8 Type 5.1 MP Global Shutter CMOS IMX547 Sensor SLVS-EC I/F Monochrome Board Camera
Made in Japan and NDAA compliant, the CIS DCC-5SLEC1M is a 5.1MP monochrome global shutter camera featuring the Sony IMX547 sensor and SLVS-EC interface for high-speed, low-latency imaging. Ideal for industrial, scientific, and embedded vision applications where reliability and precision matter.
The CIS DCC-5SLEC1M is a Made in Japan, NDAA-compliant monochrome camera engineered for demanding industrial, scientific, and embedded vision applications. Built around the Sony IMX547 1/1.8" global shutter CMOS sensor, it delivers 5.1-megapixel resolution (2472 × 2064) with crisp, artifact-free imaging and superior precision.
Featuring SLVS-EC high-speed interface, the DCC5SLEC1M achieves up to 122 frames per second at 8/10-bit and 82 fps at 12-bit, ensuring low-latency data throughput for real-time image processing and AI-driven machine vision.
Its C-mount lens compatibility, compact 29 × 35 × 27 mm body, and lightweight 25g design make integration seamless in confined or mobile systems. Operating on just 1.0W at +3.8V / +1.8V, it’s ideal for portable or power-sensitive imaging platforms.
Fully compatible with the AMD Kria™ KR260 development kit, this model includes a flex cable for quick setup and supports AMD PYNQ™ control via Clairvu™ ISP (available separately). The included tripod mount facilitates stable alignment for laboratory and field use.
Features:
- Sensor: 1/1.8” Sony IMX547 CMOS, Global Shutter
- Resolution: 5.1 MP (2472 × 2064 pixels)
- Frame Rates: 122fps (8-bit/10-bit), 82fps (12-bit)
- Interface: SLVS-EC for high-speed data transfer
- Lens Mount: C-mount for optical flexibility
- Compatibility: AMD Kria™ KR260 (Zynq™ UltraScale+™) with flex cable included
- Control: AMD PYNQ™ with Clairvu™ ISP (sold separately)
- Power: 1.0W, +3.8V / +1.8V
- Dimensions: Compact 29 × 35 × 27 mm, 25g weight
- Mounting: Includes tripod mount
Applications:
- Embedded vision systems
- High-speed industrial automation
- Scientific imaging and microscopy
- Machine vision and robotics
- OEM camera integrations
| Color/Mono | Mono |
| Resolution | 5.1M (2472 × 2064) |
| fps @ Max Resolution | 8bit:122fps / 10bit:122fps / 12bit:82fps SLVS-EC output |
| Sensor Model Name | IMX547 |
| Shutter Type | Global Shutter |
| Imager Size | 1/1.8 CMOS |
| Effective Pixels | 2472 × 2064 |
| Pixel Size (μm) | 2.74 ×2.74 |
| Pixel Clock (MHz) | 74.25 |
| Power Consumption | 1.0 W |
| Power Requirement | SLVS-EC |
| Lens Mount | C |
| Weight (g) | 25 |
| Dimensions (W) x (H) x (D)mm | 29 x 35 x 27mm |
