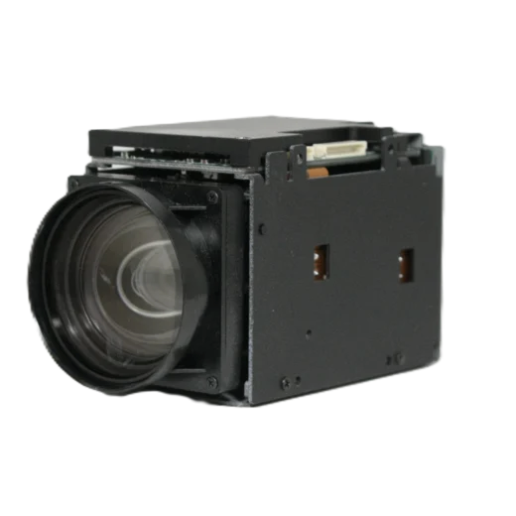

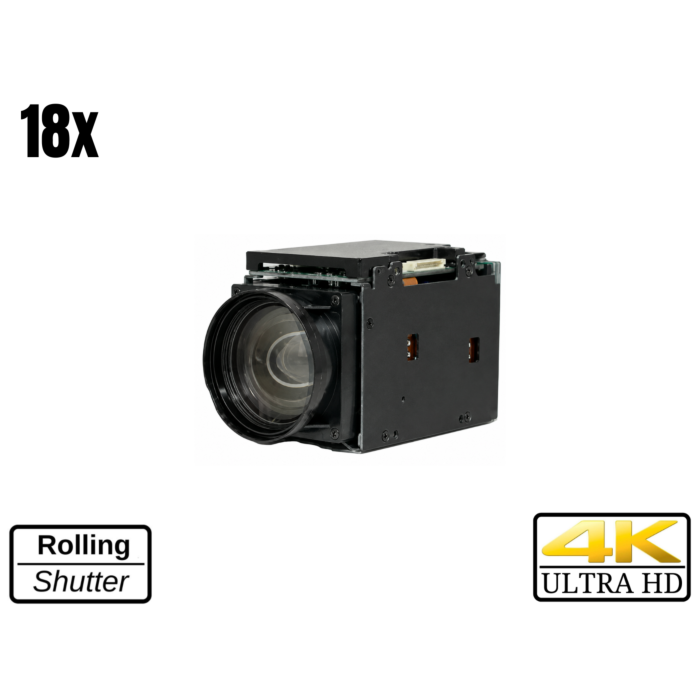

CIS DCC‑4K5ZM Rolling Shutter IMX678 1/1.8 CMOS 12G‑SDI 4K UHD Camera
The CIS DCC-4K5ZM is a Made in Japan, NDAA compliant 4K UHDTV color camera module designed for precision imaging applications that demand exceptional clarity and reliability. Engineered with a 1/1.8‑inch Sony CMOS rolling‑shutter sensor (IMX678AAQR1) and a built inc 18× optical autofocus zoom lens, this advanced camera delivers true 4K UHD resolution (3840×2160 at 60fps) with ultra-clean, detailed imaging across diverse lighting environments.
Supporting multiple SDI output formats — including 12G-SDI (UHDTV 60p/59.94p/50p), 6G-SDI (UHDTV 30p/29.97p/25p/24p/23.98p), 3G-SDI, and HD-SDI — the DCC4K5ZM integrates seamlessly into modern broadcast, inspection, and security workflows. Its Clairvu image processing technology ensures vivid color reproduction and crisp image fidelity in every frame.
Features:
- Made in Japan for superior build quality and reliability
- NDAA compliant for U.S. government and defense projects
- High dynamic range with Clairvu proprietary image processing
- 18× optical autofocus zoom lens for flexible field coverage
- GenLock (tri-level sync or black burst) and LTC (timecode) support
- Camera control via RS‑232C and RS‑422 interfaces
- OSD (On‑Screen Display) compatible for convenient configuration
Applications:
- Industrial inspection
- Broadcast production
- Surveillance systems
- Robotics vision
| Brand | CIS |
| Model | DCC-4K5ZM |
| Color/Mono | Color |
| Resolution | 8.4M (3840 × 2160) |
| fps @ Max Resolution | 60 |
| Output Format | UHDTV / HDTV (SDI) |
| Sensor Model Name | IMX678AAQR1 |
| Shutter Type | Rolling shutter |
| Imager Size | 1/1.8 inch |
| Effective Pixels | 3840 × 2160 |
| Pixel Size (μm) | 2.0 × 2.0 |
| Pixel Clock (MHz) | TBD |
| Power Requirement | TBD |
| Power Consumption | TBD |
| Shutter Variable Range | TBD |
| Interface | 12G‑SDI |
| Lens | 18× optical AF zoom |
| GenLock | Supported (tri‑level / BB) |
| LTC (Timecode) | Supported |
| Control Interface | RS‑232C, RS‑422 |
| OSD | Supported |
| NDAA Compliance | Yes (NDAA compliant) |
| Country of Origin | Made in Japan |
| Weight (g) | TBD |
| Dimensions (W × H × D) mm | 48.65 × 56.2 × 95.75 |
