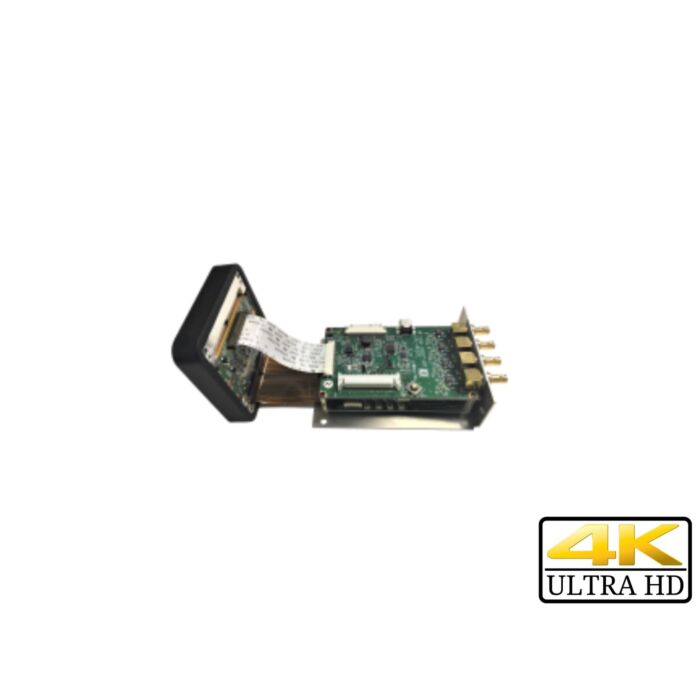

CIS DCC-4K2 1.0 CMOS 4K Compact Sized Color Global Shutter Camera
The CIS DCC‑4K2 is a high‑performance, compact 4K UHD color camera engineered in Japan and fully NDAA compliant for use in secure, government, and defense applications. Designed for precision imaging and long‑term reliability, this CIS camera integrates seamlessly into broadcast, medical, inspection, and industrial vision systems where compliance and image integrity are critical.
Powered by the original CIS “Clairvu™” image signal processor (ISP), the DCC‑4K2 delivers exceptional clarity, superior color reproduction, and ultra‑low noise performance. Its 1‑inch global shutter CMOS sensor (Sony IMX305) provides artifact‑free, high‑speed motion capture up to 4K UHDTV 60p through a Quad 3G‑SDI interface or selectable 1080p via single 3G‑SDI output.
At only 65mm × 65mm × 110mm, this compact design offers high performance with features demanded by professional integrators and system designers.
Features:
- Superb imaging quality with CIS original ISP, "Clairvu™"
- 65mm x 65mm x 110mm in size
- GenLock function (3-value analogue signal or black burst)
- Color correction
- Gamma control via RS-232C
- NR function
- LTC time code
- Conform to Gamma curve BT.2100 and color gamut BT.2020
Applications:
- Broadcast
- Inspection
- Medical
- Industrial Vision
| Color/Mono | Color |
| Resolution | 3840 × 2160:UHDTV(4ch output) , 1920 × 1080:1080ｐ(1ch output) |
| Output Format | 2160ｐ/1080ｐ |
| Sensor Model Name | IMX305 |
| Shutter Type | Global Shutter |
| Imager Size | 1.0 CMOS |
| Effective Pixels | 3840×2160 |
| Pixel Size (μm) | 3.45 x 3.45 |
| Power Consumption | 12W |
| Power Requirements | DC+9～+15V |
| Min. Illumination | 3.0 lx (F1.4) |
| Sensitivity | F5.6 (2000 lx) |
| Shutter Variable Range | 1/23.98 ～ 1/13600s |
| Interface | 3G-SDI ×4 - 2SI / Square Division、3G-SDI ×1 |
| Lens Mount | M42 |
| Weight (g) | 180g |
| Dimensions (W) x (H) x (D)mm | Lens mount block:65 × 65 × 12 , Main block:29 × 65 × 89(excluding projection) |
