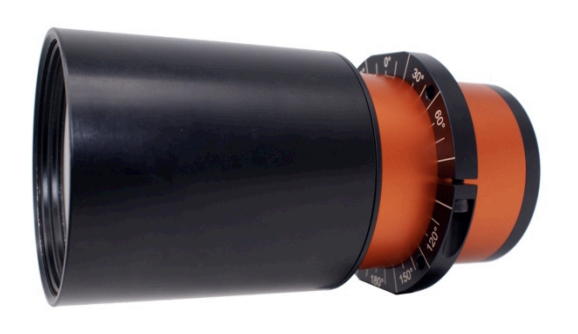

CEI Machine Vision Camera Enclosure IP67 88mm Series Round

As a leading innovator in the Machine Vision Industry, CEI is proud to introduce our new line of Machine Vision Camera Enclosures, Cables, and Accessories for demanding vision applications.
SKU

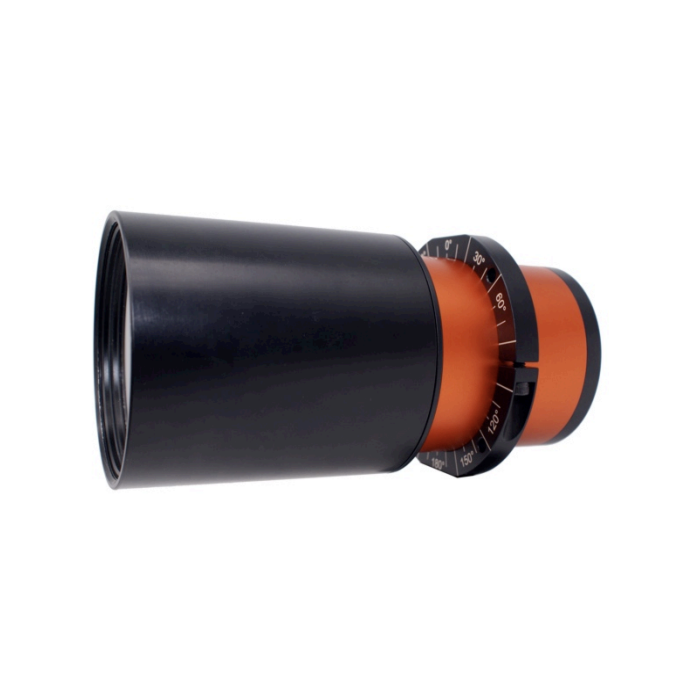

CEI Machine Vision Camera Enclosure IP67 88mm Series Round

CEI Machine Vision Camera Enclosure IP67 88mm Series Round


Features:

  • CEI Integrated Connector Design (no cord grips)
  • IP67 protection
  • Universal design for camera models with up to 60mm2 body
  • Also supports Dalsa Genie Nano XL, Nano 5G, Sony Block
  • Excellent heat dissipation
  • Enclosure tailored for specific Camera & Optics
  • Adjustable Mount with 4 tapped holes included
  • High quality (easy to replace) windows by Midwest Optical
  • Lightweight low-profile design
  • Type 2 anodizing
  • Options: Mounts, Windows & Filters, Cables
  • Options: Custom Sizes, lengths, and focusing solutions.
  • Options: Complete Solutions (Camera, Enclosure, Cabling)
  • Competitive pricing
  • Made in USA, Patent Pending


Applications:

  • Machine Vision
  • Industrial Inspection
  • Quality Control
Camera up to 60mm square machine vision
Optics Supports a wide range optics
Window Midwest Optical 2mm – AR coated Borofloat glass
Lens Covers Available in 79mm and 103mm Diameters
Lengths in 10mm increments
Interface Connector M12 X-Code Ethernet Female
Optional Interface Connector M12 A-Code I/O Male
Mounting Qty. 2, M6 and Qty. 2 ¼-20 UNC tapped holes with 19.05mm (¾”) hole spacing
Adjustable ring mount
Sealing IP67
Material 6061 Aluminum
Coating Type 2 anodized
Overall Length (L) Varies, See Appendix “A”
Body Length (B) Varies, See Appendix “A”
Height / Width (C) 95 mm OD round (body)
Mount Diameter 120 mm
Weight ~1000g (typical weight fully assembled W/ Camera)
