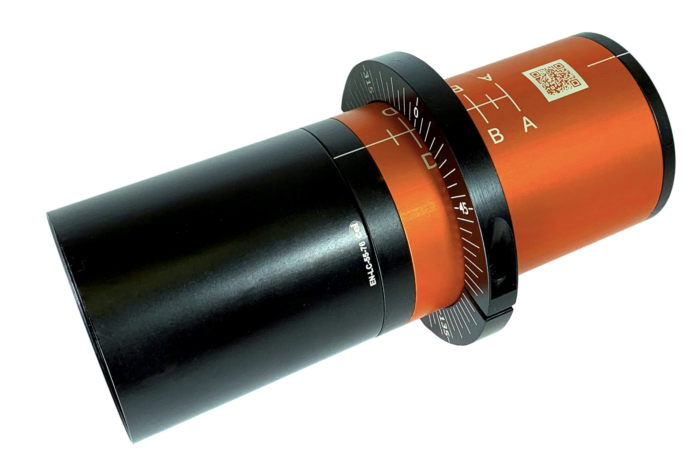

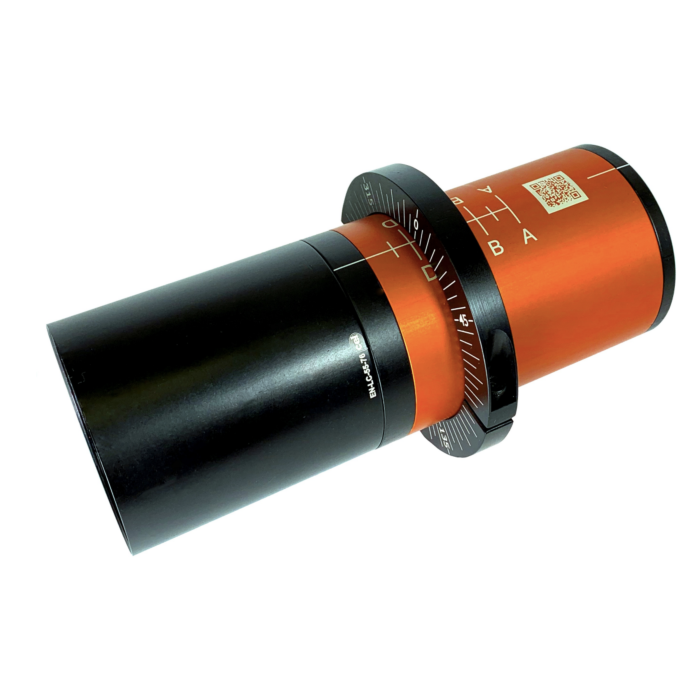

CEI Machine Vision Camera Enclosure IP67 55mm Series Round
SKU
CEI Machine Vision Camera Enclosure IP67 55mm Series Round
Quick Overview
*Please note this product is subject to tariff fee*
As a leading innovator in the Machine Vision Industry, CEI is proud to introduce our new line of Machine Vision Camera Enclosures, Cables, and Accessories for demanding vision applications.CEI Machine Vision Camera Enclosure IP67 55mm Series Round
Features:
- CEI Integrated Connector Design (no cord grips)
- IP67 protection
- Universal design for camera models with up to 42mm body
- Also supports many popular Dalsa Genie Nano cameras
- Excellent heat dissipation
- Enclosure tailored for specific Camera & Optics
- Adjustable Mount with 4 tapped holes included
- High quality (easy to replace) windows by Midwest Optical
- Lightweight low-profile design
- Type 2 anodizing
- Options: Mounts, Windows & Filters, Cables
- Options: Custom Sizes, lengths, and focusing solutions.
- Options: Complete Solutions (Camera, Enclosure, Cabling)
- Competitive pricing
- Made in USA, Patent Pending
Applications:
- Machine Vision
- Industrial Inspection
- Quality Control
| Camera | up to 42mm square or 44mm x 29mm machine vision |
| Optics | Supports a wide range optics |
| Window | Midwest Optical 2mm – AR coated Borofloat glass or Acrylic |
| Lens Covers | Available in 55mm and 60mm Diameters Lengths in 10mm increments |
| Interface Connector | M12 X-Code Ethernet Female |
| Optional Interface Connector | M12 A-Code I/O Male, HDMI, HD-BNC |
| Mounting | Qty. 2, M6 and Qty. 2 ¼-20 UNC tapped holes with 19.05mm (¾”) hole spacing Adjustable ring mount |
| Sealing | IP67 |
| Material | 6061 Aluminum |
| Coating | Type 2 anodized |
| Overall Length (L) | Varies, See Appendix “A” |
| Body Length (B) | Varies, See Appendix “A” |
| Height / Width (C) | 63.5 mm OD round (body) |
| Mount Diameter | 88.9 mm |
| Window Diameter | 62 mm |
| Weight | 500 g (typical weight fully assembled W/ Camera) |
