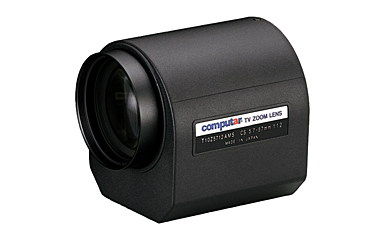

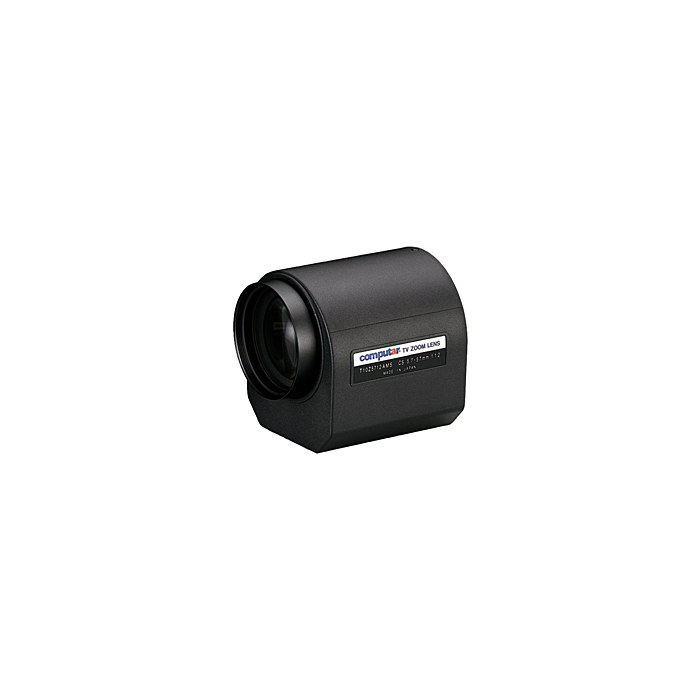

T10Z5712AMS: CBC-Computar 1/3" 5.7-57mm f1.2 10X Motorized Zoom, Video Auto Iris w/spot (CS Mount)

QUICK OVERVIEW
The Computar T10Z5712AMS and other Motorized Zoom Lenses provide some of the industry's best lenses for long distance viewing.
SKU
T10Z5712AMS
Request a Quote
Email to a Friend

The T10Z5712 AMS is ideal for applications requiring long distance surveillance in parking lots, highways, etc.



Features:



  • Format: 1/3"
  • Focal Length: 5.7-57mm
  • Aperture: F1.2
  • Iris Type: Motorized Video Auto-iris

    •


    Applications:



  • Surveillance
  • Security
    • ModelT10Z5712AMS
    Focal Length5.7mm - 57mm
    Max. Aperature1:1.2
    Max Image Format4.8mm x 3.6mm(6mm)
    Operation RangeIris F1.2 - F560C Focus 1.8m - Inf  Zoom5.7mm -57mm
    Supply VoltageDC8.5V - DC16V
    Effective Lens AperatureFront 45.0mm Rear 8.6mm
    Back Focal Length8.5mm
    Flange Back Length12.5mm
    MountCS-Mount
    Filter SizeM49 P0.75mm
    DimensionsW68.5mm x H76.3mm x D88mm
    Weight470g
