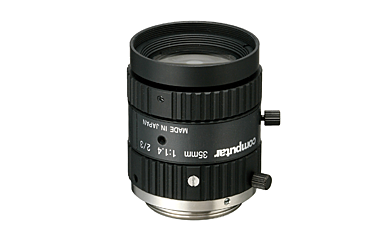

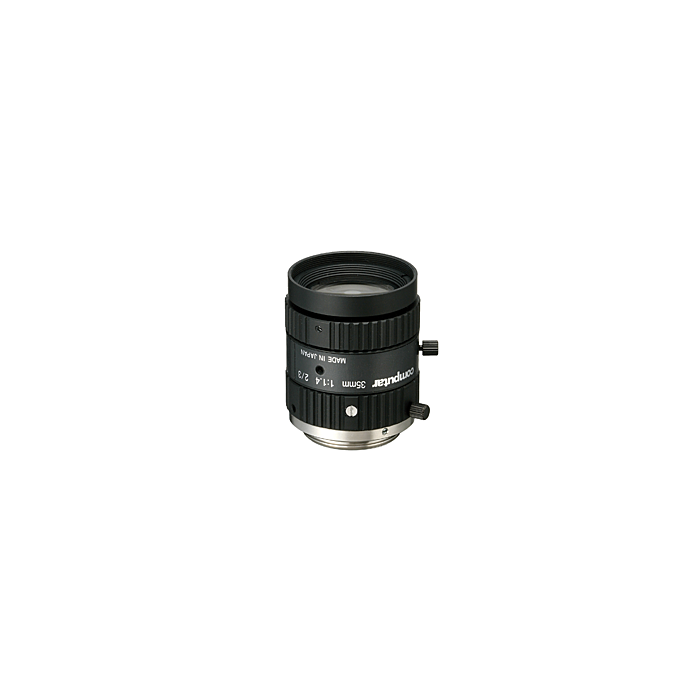

CBC-Computar SWIR M3514-SW (M3515SW) 2/3" 35mm, F1.4, Manual Iris (C-Mount)

SWIR Lens for Machine Vision features 35mm Fixed Focal Length, Short Wave IR Optimized.
SKU
M3514-SW

The CBC-Computar SWIR M3514-SW is designed around the popular φ12.3mm image circle format.



Features:



  • Unique coating technology delivers high transmission from 800nm-1,700nm
  • High-resolution, low-distortion design offers Megapixel clarity in hyperspectral application
  • Also available in 16mm, 25mm and 50mm
  • Designed around the popular φ12.3mm image circle format
  • The industry’s most compact form factor.  Fits in most applications
  •


    Applications:



  • Machine Vision
  • Industrial Imaging
  • Industrial Inspection
  • Model SWIR M3514-SW
    Focal Length 35mm
    Max. Aperture Ratio 1:1.4
    Max. Image Circle φ12.3mm
    Operation Range Iris F1.4 ‐ F16C    Focus 0.3m ‐ Inf.
    Control Iris Manual Focus Manual
    Object Dimension at M.O.D 2/3type 8.0cm x 6.0cm  1/2type 5.8cm x 4.4cm
    Operating Temperature -10℃ ‐ +50℃
