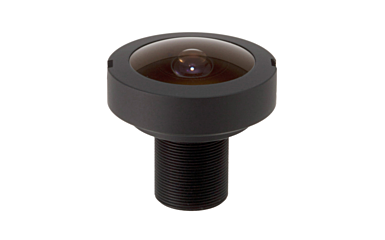

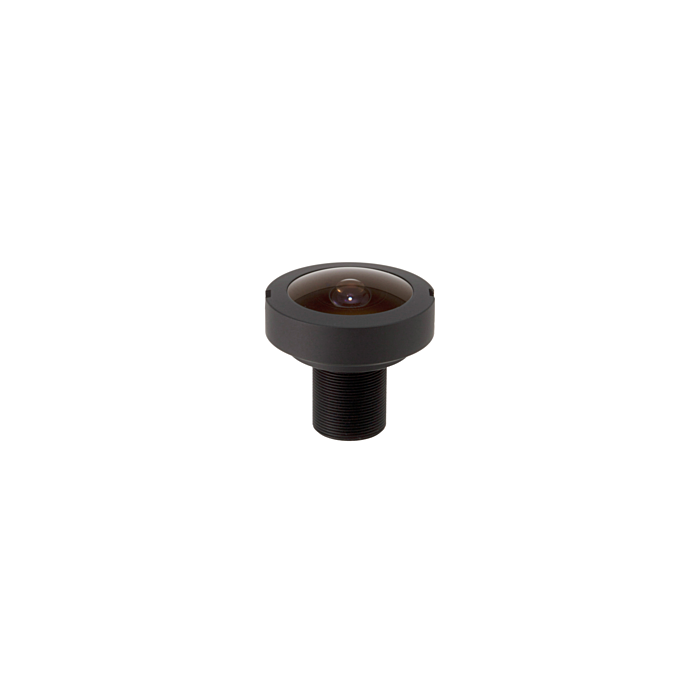

CBC-Computar L1028KDRW 1/2.5" 1.05mm 5 Megapixel Fisheye IR Board Lens (S-Mount)
SKU
L1028KDRW
Quick Overview
The Computar L1028KDRW is a 1/2.5" IR corrected fisheye board lens featuring a 1.05mm fixed focal length, 180 degree Horizontal FOV, and M12 lens mount.
Computar L1028KDRW 1/2.5" 1.05MM F2.8 M12 (S-Mount), 5 Megapixel Rated, IR, Fisheye, IP66 Waterproof
Features:
Applications:
</table
| Model | L1028KDRW |
| Focal Length | 1.05mm |
| Max. Aperture Ratio | 1:2.8 |
| Image Size at 180° | φ4.1 |
| Mount | M12 P=0.5mmf. |
| Effective Lens Aperture | Front φ 20mm Rear φ 5.4mm |
| Back Focal Length | 3.62mm |
| Dimensions | φ27mm x 26.02mm |
| Weight | 17.3g |
