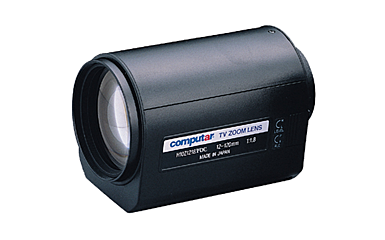

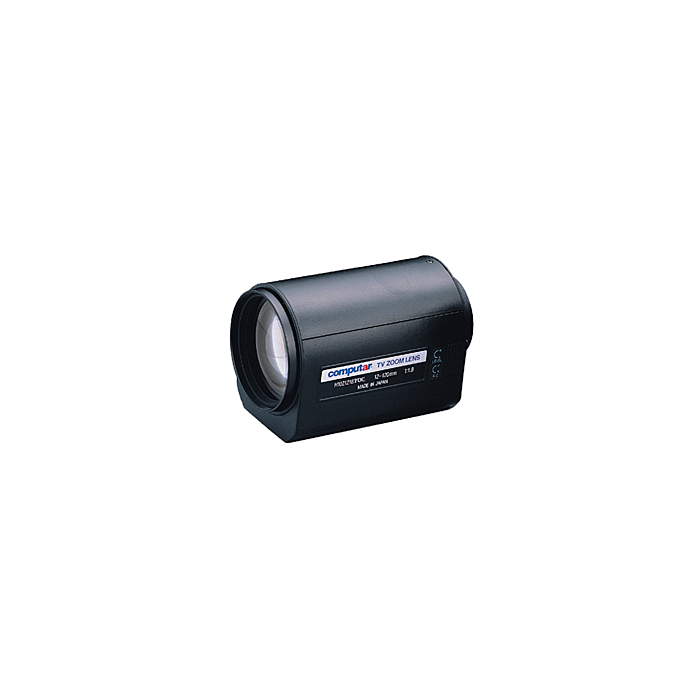

H10Z1218PDC: CBC-Computar 1/2" 12-120mm f1.8 10X Motorized Zoom, DC Auto Iris w/preset & 4-pin mini connector (C Mount)
12 -120mm C-Mount Computar Motor Zoom Lens H10Z1218PDC 1/2" 12-120mm f1.8 10X Motorized Zoom, DC Auto Iris w/preset & 4-pin mini connector
SKU
H10Z1218PDC
Computar H10Z1218PDC 1/2 12-120mm f1.8 10X Motorized Zoom, DC Auto Iris.
Features:
Applications:
| Model | H10Z1218MPDC |
| Focal Length | 12mm - 120mm |
| Max. Aperature | 1:1.8 |
| Max Image Format | 6.4mm x 4.8mm(8mm) |
| Operation Range | Iris=F1.8 - F560C Focus=1.5m - Inf. Zoom=12mm - 120mm |
| Control | Motorized Preset Focus, Zoom Motorized Iris |
| Supply Voltage | DC8V |
| Effective Lens Aperature | Front φ54mm Rear φ9.2mm |
| Back Focal Length | 14.4mm |
| Flange Back Length | 17.526mm |
| Mount | C-Mount |
| Filter Size | M62 P0.75mm |
| Dimensions |
W70mm x H79.5mm x D123.5mm |
| Weight | 670g |
