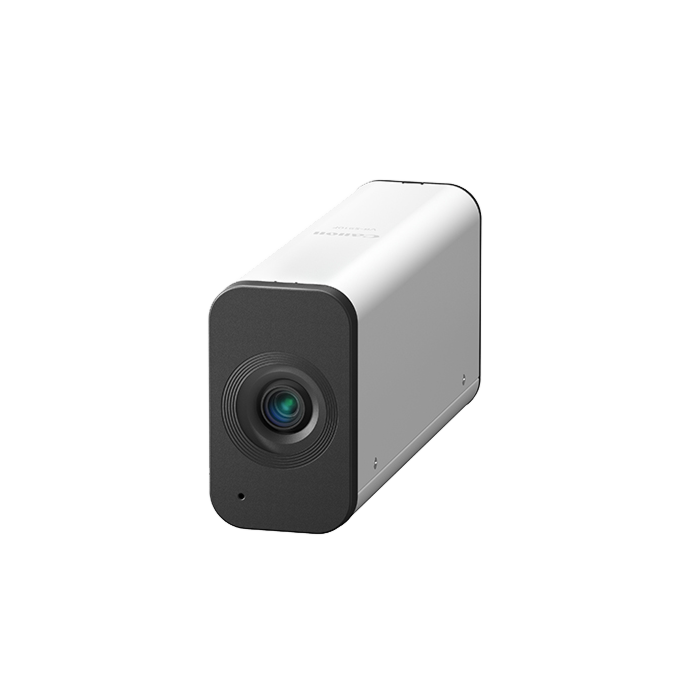

Canon VB-S910F (VBS910F) 3.5x Zoom (1920 x 1080) Fixed Micro Box Network Camera (Discontinued)

SKU
Canon VB-S910F
Quick Overview

*Product is Discontinued, Call For Replacement Options

1/4.85" CMOS (RGB), 3.5x Optical Zoom Lens With Auto Focus, Progressive Scan.

Weighing under a half-pound, Canon's compact VB-S910F Fixed Micro Box Network Camera allows for discreet video surveillance in an esthetically pleasing form factor. The VB-S910F is equipped with a Genuine Canon 3.5x Optical Zoom Lens, 2.1 Megapixel resolution CMOS Sensor and DIGIC DV III Image Processor, all of which work together to deliver images with remarkable clarity and color accuracy. A built-in microphone allows audio recording at the camera's installation site.* Users will appreciate the reduced bandwidth and storage space consumption possible with the Area-Specific Data Size Reduction and Motion Adaptive Noise Reduction features, as well as the low power consumption (4.8W maximum over PoE) offered by the VB-S910F.

Features:

  • Genuine Canon Lens with 3.5x Optical Zoom helps provide Outstanding Image Clarity and Flexibility
  • 2.1 Megapixel Resolution High-Sensitivity CMOS Sensor helps deliver video with Outstanding Detail
  • Advanced DIGIC DV III Image Processor to help Maximize Image Quality and Color Accuracy
  • Lightweight and Compact Form Factor (0.4 oz.) allows Camera to be Discreet and Aesthetically Pleasing
  • Built-in Microphone for Audio Recording at Installation Site*
  • Motion Adaptive Noise Reduction to Increase Video Clarity in Low-Light Conditions and Reduce Bandwidth Consumption
  • Area-Specific Data Size Reduction (ADSR) to Maintain Video Quality in Important Areas while Reducing Bandwidth Usage
  • Privacy Mask for Placing a Digital Mask over Restricted Areas
  • ONVIF Profile S Conformant for VMS Connectivity
  • Web-Based Camera Viewer with Mobile Device Support
  • Low Power Consumption (Maximum 4.8W)
  • PoE Power Source Compatible

  • Applications:

  • Auditoriums
  • Plazas and Lobbies
  • Financial Institutions
  • Security
  • Surveillance
  • CAMERA
    Image Sensor1/4.85" CMOS (RGB)
    Number Of Effective PixelsApprox. 2.1 million pixels
    Scanning MethodProgressive Scan
    Lens3.5x optical zoom lens with auto focus
    Focal Length2.25 (W) - 7.88mm (T)
    F-NumberF1.4 (W) - F2.6 (T)
    Digital Zoom4x
    Horizontal Viewing Angle78.6° (W) - 20.8° (T)
    Vertical Viewing Angle40.9° (W) - 11.6° (T)
    Day/Night SwitchYes
    I/R Cut FilterDigital Night Mode
    Min. Subject Illumination - Day (Color)0.95 lux (F1.4, shutter speed 1/30 sec.)
    Min. Subject Illumination - Night (Monochrome)0.5 lux (F1.4, shutter speed 1/30 sec.)
    FocusAuto/One-shot AF/Manual/Fixed at infinity
    Shooting Distance0.3m (12 in.) - infinity (W)
    Shutter Speed1 - 1/16000 sec.
    ExposureAuto/ Auto (Flickerless)/ Auto (Flickerless2) Auto (shutter-priority AE)/ Manual (Shutter Speed, Gain)
    White BalanceAuto/Light Source (Daylight Fluorescent/White Fluorescent/Warm Fluorescent/Mercury Lamp/Sodium Lamp/Halogen Lamp)/Manual (One-shot WB / R Gain/ B Gain)
    Metering ModeCenter-Weighted/Average/Spot
    Exposure Compensation9 levels
    Smart Shade ControlAuto / Manual / Disable
    Auto: 3 Levels
    Manual: 7 Levels
    Haze CompensationAuto / Manual / Disable
    Auto: 3 Levels
    Manual: 7 Levels
    AGC Limit6 levels
    Image StabilizerN/A
    Motion Adaptive Noise ReductionAvailable
    Clear IRN/A
    Pan Angle RangeN/A
    Tilt Angle RangeN/A
    Rotation Angle RangeN/A
    IR Illumination RangeN/A
    Moving SpeedN/A
    SERVER
    Video Compression MethodJPEG, H.264
    Bit Rate ControlTarget Bit Rate: 64-16384 kbps
    Video SizeJPEG, H.264: 1920 x 1080, 960 x 540, 480 x 270 1280 x 720, 640 x 360, 320 x 180 1280 x 960, 640 x 480, 320 x 240
    Simultanious Video Streams2x H.264, 2x MJPEG, 1x H.264 1x MJPEG
    Video QualityJPEG, H.264: 10 levels
    Frame RateJPEG: 0.1 - 30 fps
    H.264: 1/2/3/5/6/10/15/30 fps
    Maximum Frame RateJPEG, H.264 (1920 x 1080): 30fps
    I-Frame Interval0.5/1/1.5/2/3/4/5 sec.
    Simultaneous Client AccessMax. 30 Clients + 1 Admin Client
    - H.264: Max. 10 Clients
    Camera ControlAdministrator, Authorized user, Guest user
    Max. 50 user names and passwords registered for authorized users.
    Access ControlUser authority (user name and password), Host Access Restrictions (IPv4, IPv6)
    Encrypted CommunicationsSSL/TLS, IPsec (Auto Key Exchange/Manual)
    IEEE 802.1XEAP-MD5, EAP-TLS, EAP-TTLS, EAP-PEAP
    IPv4 ProtocolTCP/IP, UDP, HTTP, FTP, SNMP (MIB2), SMTP (Client), DHCP (Client),
    DNS (Client), ARP, ICMP, POP3, NTP, SMTP authentication, RTSP, WV-HTTP
    (Canon proprietary), ONVIF
    IPv6 ProtocolTCP/IP, UDP, HTTP, FTP, SMTP (Client), DHCPv6 (Client), DNS (Client),
    ICMPv6, POP3, NTP, SMTP authentication, RTSP, WV-HTTP (Canon
    Proprietary), ONVIF
    Auto IPYes
    Audio Compression MethodG.711 μ-law (64 kbps)
    Audio Communication MethodFull-duplex (two-way)/half-duplex (One-way communication) RTP, Sound Transfer Protocol by Canon
    Audio File PlaybackAvailable
    Privacy MaskNumber of registration: Max. 8 places,
    Number of mask colors: 1 (select from 9 colors)
    View RestrictionAvailable
    PresetsMax. 20 positions
    Intelligent Function - VideoMoving object detection, abandoned object detection, removed object detection, camera tampering detection, passing detection and intrusion detection
    Intelligent Function - AudioVolume Detection
    Intelligent Function - Detection SettingsMax. 15
    Event Trigger TypeExternal Device Input, Timer, Intelligent Function (Video), Intelligent Function (Audio), Day/Night Switch
    Image UploadFTP/HTTP
    Event NotificationHTTP/SMTP (e-mail)
    On-Screen DisplayAvailable
    Image Cropping FunctionDigital PTZ
    Cropping sizes: 640 x 360/512 x 288/384 x 216/256 x 144/128 x 72 640 x 480/512 x 384/384 x 288/256 x 192/128 x 96
    Enhanced Digital ZoomN/A
    Daylight Saving TimeAvailable
    Custom SettingsTBD
    INTERFACE
    Network TerminalLAN x 1 (RJ45, 100Base-TX (auto/full-duplex/half-duplex))
    Audio Input TerminalBuilt-in Microphone
    Sensitivity: -40 dB (0 dB=1 V/Pa)
    S/N Ratio: 62 dB or greater
    Frequency Response: 50 Hz - 16 kHz
    Audio Output TerminalΦ3.5 mm (Φ0.14 in.) mini-jack connector (monaural)
    LINE OUT (connect to an amplifier speaker)
    External Device I/O TerminalInput x 1, Output x 1
    Analog Video OutN/A
    Memory Card TypeMicroSD Memory Card, MicroSDHC Memory Card, MicroSDXC Memory Card Compatible
    Memory Card Recorded ContentLog, Video (Event, Manual, ONVIF, Timer, Upload)
    Memory Card Recorded Frame RateFrame Rate: Max. 1 fps (JPEG)
    Max. 30 fps (H.264)
    OPERATING ENVIRONMENT
    TemperatureTemperature: -10°C - +50°C (+14°F - +122°F)
    HumidityHumidity: 5% - 85% (without condensation)
    STORAGE ENVIRONMENT
    Temperature-30°C - +60°C (-22°F - +140°F)
    Humidity5% - 90% RH (without condensation)
    POWER SUPPLY
    PoEPoE: PoE power supply via LAN connector (IEEE802.3af compliant)
    AC AdapterN/A
    External Power SourceN/A
    POWER CONSUMPTION
    With PoEMax. approx. 4.8 W
    With AC AdapterN/A
    With 12VDCN/A
    With PoE+N/A
    With 24VACN/A
    OTHER
    Dimensions(H x W x D) 54 x 32 x 117 mm (2.13 x 1.26 x 4.61 in.)
    Mounting PositionWith use of mounting pole (third party product)
    HeaterN/A
    WeightApprox. 180 g (6.4 oz.) (T.B.D.)
    Outdoor ReadyN/A
    IP RatingN/A
    Vandal ResistantN/A
    Impact ResistanceN/A
