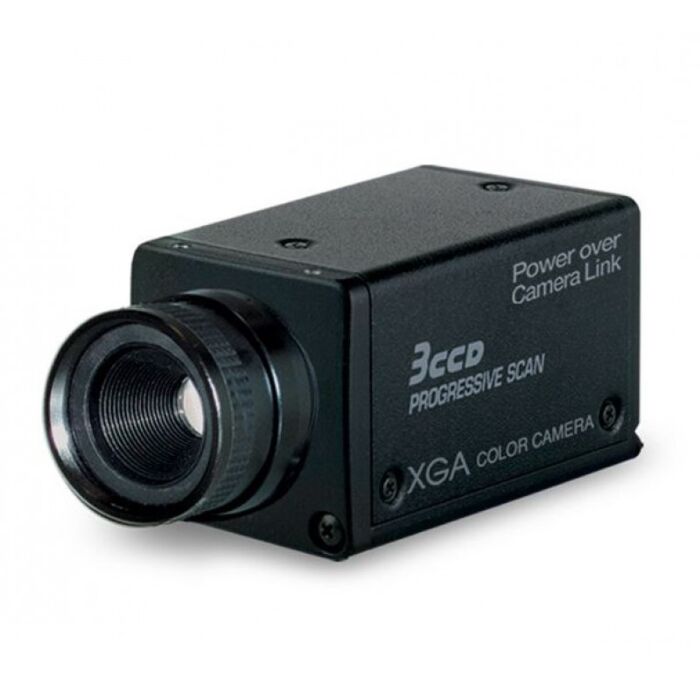

Canon Medical Systems JCT-TF7G One-Piece, 3-Chip, Progressive-Scan Color Area-Scan Camera
SKU
Canon Medical Systems JCT-TF7G Color Area-Scan Camera
Quick Overview
3 x 1/3" CCD, RGB prism, 1024 x 768 @ 29.18 fps, 14 Lx (f2.2 +18dB, 3,000K)
VSD’s JCT-TF7G represents Canon’s latest innovation incorporating 3CMOS global shutter sensors and Camera Link compatibility for precision color area-scan, machine vision applications. The JCT-TF7G is VSD’s first CMOS camera to provide accurate colors and high resolution of fast-moving objects for a variety of process control, inspection and machine vision applications. New and improved designs expand digital processing capabilities, including user-defined, partial scan for increased frame rates.
Features:
- New and improved design
- 3CCD Progressive Scan
- Pixel Resolution / Frame Rate
- 659 x 494 @ 59.94 fps (IK-TF5P2)
- 1024 x 768 @ 29.18 fps (IK-TF7P2)
- Compact one-piece configuration
- Digital Output—Camera Link®
- Electronic Shutter—Manual or Auto
- Electronic noise reduction
- Partial Scanning to increase frame rate
- Up to 250 fps
- White Balance—Manual or Auto
- Dual power input—PoCL® or 12VDC
- C-Mount lens mount
- On-screen and RS-232 setup
- Economically Priced
Applications:
- Inspection
- Quality Control
- Process Control
- Machine Vision
- Industrial
| Scanning System | Progressive |
| Image Sensor | 3 x 1/3" CCD, RGB prism |
| Effective Pixels | XGA (1024 x 768) |
| Output Resolution | H 1034 x V 779 |
| Pixel size | 4.65µm x 4.65µm |
| Sensing Area H V | 4.8 x 3.6 mm |
| Frame Rate | 29.18 fps |
| Partial Scanning | 90fps (175 lines) 80fps (211 lines) 70fps (259 lines) 60fps (322 lines) 50fps (412 lines) 42fps (512 lines) 40fps (542 lines) Off (30) (768 lines) |
| Binning | None |
| Pixel Clock Frequency | 29.5 MHz |
| Sync Signal Frequency | H 23.229 kHz V 29.18 kHz |
| Horizontal Resolution | 760 TV Lines |
| Output Signal | 8 bit Digital RGB Camera Link® |
| Sync Signal Output | FVAL/LVAL/DVAL (positive polarity) Pixel Clock |
| External Sync Input | HD: CC3 VD: CC4 (LVDS input) Neg polarity |
| External Trigger Input | CC1 (LVDS input) More than 2µs pulse width |
| Partial Scanning Control | CC2 (LVDS input) |
| S/N Ratio | 56 dB |
| Sensitivity | F6.8 Standard (2,000 Lux, 3,000K) |
| Noise Reduction | On / Off |
| Minimum Illumination | 14 Lx (f2.2 +18dB, 3,000K) |
| Lens Mount | C-Mount flange back 17.526mm in air |
| Ambient Temperature | 0° C - 40° C (32° F° - 104° F) |
| Ambient Humidity | Less than 90% |
| Input Power | 12 VDC±10% PoCL® or DC Connector |
| Interface | Serial data interface TC(RXD) TFG(TXD) |
| Power Consumption | Approx 3.0W Normal Approx 3.1W Partial Scan |
| Dimensions W H D | 44 x 44 x 78 mm 1.73 x 1.73 x 3.07" |
| Weight | 158g (0.35 lbs) |
| Class | FCC Class A, CE |
