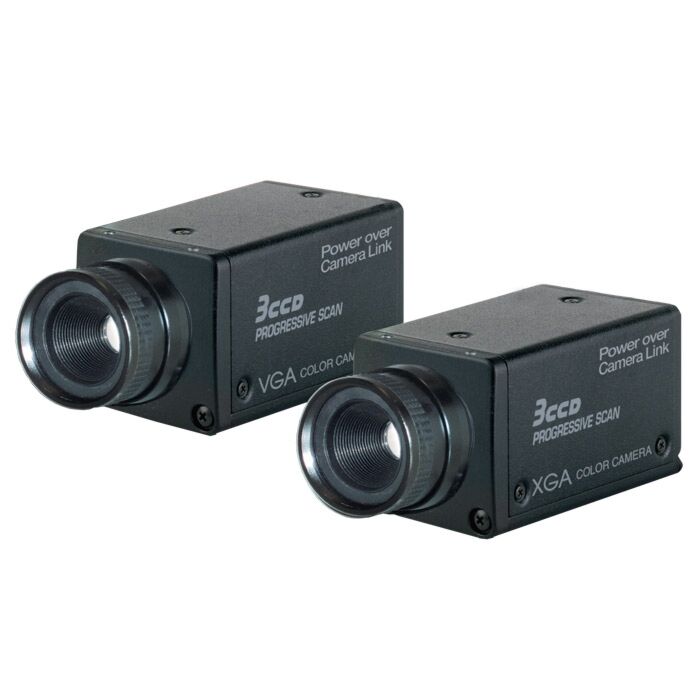

Canon Medical Systems IK-TF7P2 XGA One-Piece 3CCD, Progressive Scan Color Area Scan Camera (Discontinued)
SKU
IK-TF7P2
Quick Overview
*Product is Discontinued, Call For Replacement Options
1024 x 768 VGA @ 59.94 fps 3 x 1/3" CCD Progressive Scan Camera Link.
The Toshiba IK-TF7P2 3CCD Progressive Scan Color Camera provides accurate colors and high resolution of fast moving objects for a variety of process control, inspection, and machine vision applications. The design expands digital processing capabilities including electronic noise reduction, auto mode electronic shutter, partial scan frame rates up to 250 fps, Power over Camera Link, and reduced power requirements.
Features:
- New and improved design
- 3CCD Progressive Scan
- Pixel Resolution / Frame Rate
- 659 x 494 @ 59.94 fps (IK-TF5P2)
- 1024 x 768 @ 29.18 fps (IK-TF7P2)
- Compact one-piece configuration
- Digital Output - Camera Link®
- Electronic Shutter - Manual or Auto
- Electronic noise reduction
- Partial Scanning to increase frame rate
- Up to 250 fps
- White Balance - Manual or Auto
- Dual power input - PoCL® or 12VDC
- C-Mount lens mount
- On-screen and RS-232 setup
- Economically Priced
Applications:
- Process Control
- Inspection
- Machine Vision
- Industrial
| Scanning System | Progressive |
| Image Sensor | 3 x 1/3" CCD, RGB prism |
| Effective Pixels | XGA (1024 x 768) |
| Output Resolution | H 1304 x V 779 |
| Pixel Size | 4.65µm x 4.65µm |
| Sensing Area H V | 4.8 x 3.6 mm |
| Frame Rate | 29.18fps |
| Partial Scanning | 90fps (175 lines) 80fps (211 lines) 70fps (259 lines) 60fps (322 lines) 50fps (412 lines) 42fps (512 lines) 40fps (542 lines) Off (30) (768 lines) |
| Binning | None |
| Pixel Clock Frequency | 29.5 MHz |
| Sync Signal Frequency | H 23.229 kHz V 29.18 kHz |
| Horizontal Resolution | 760 TV Lines |
| Output Signal | 8 bit Digital RGB Camera Link® |
| Sync Signal Output | FVAL/LVAL/DVAL (positive polarity) Pixel Clock |
| External Sync Input | HD: CC3 VD: CC4 (LVDS input) Neg polarity |
| External Trigger Input | CC1 (LVDS input) More than 2µs pulse width |
| Partial Scanning Control | CC2 (LVDS input) |
| S/N Ratio | 56 dB |
| Sensitivity | F6.8 Standard (2,000 Lux, 3,000K) |
| Noise Reduction | On / Off |
| Minimum Illumination | 14 Lx (f2.2 +18dB, 3,000K) |
| Lens Mount | C-Mount flange back 17.526mm in air |
| Ambient Temperature | 0° C - 40° C (32° F° - 104° F) |
| Ambient Humidity | Less than 90% |
| Input Power | 12 VDC±10% PoCL® or DC Connector |
| Interface | Serial data interface TC(RXD) TFG(TXD) |
| Power Consumption | Approx 3.0W Normal Approx - 3.1W Partial Scan |
| Dimensions (W x H x D) | 44 x 44 x 78 mm 1.73 x 1.73 x 3.07" |
| Weight | 158g (0.35 lbs) |
