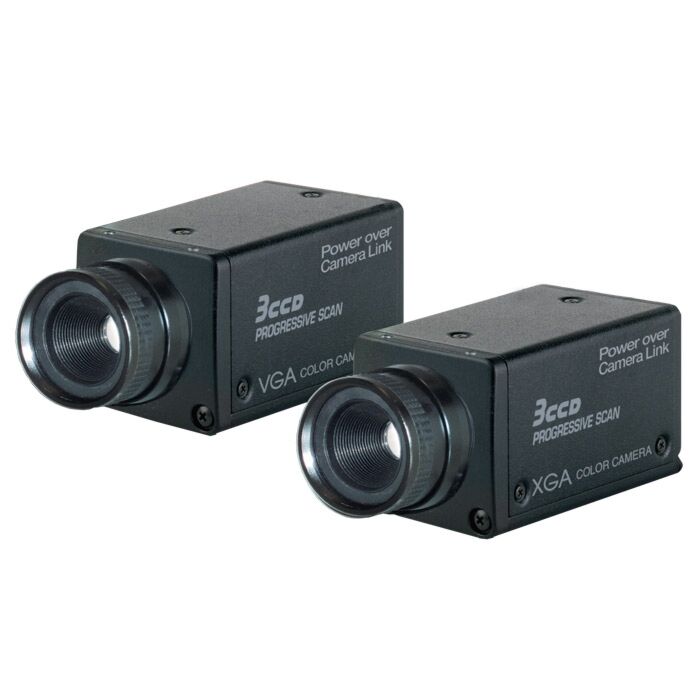

Canon Medical Components IK-TF5P2 VGA One-Piece 3CCD, Progressive Scan Color Area Scan Camera
SKU
IK-TF5P2
Quick Overview
659 x 494 VGA @ 59.94 fps 3 x 1/3" CCD Progressive Scan Camera Link.
The Canon Medical's IK-TF5P2 3CCD Progressive Scan Color Camera provides accurate colors and high resolution of fast moving objects for a variety of process control, inspection, and machine vision applications. The design expands digital processing capabilities including electronic noise reduction, auto mode electronic shutter, partial scan frame rates up to 250 fps, Power over Camera Link, and reduced power requirements.
- Features:
- New and improved design
- 3CCD Progressive Scan
- Pixel Resolution / Frame Rate
- 659 x 494 @ 59.94 fps (IK-TF5P2)
- 1024 x 768 @ 29.18 fps (IK-TF7P2)
- Compact one-piece configuration
- Digital Output - Camera Link®
- Electronic Shutter - Manual or Auto
- Electronic noise reduction
- Partial Scanning to increase frame rate
- Up to 250 fps
- White Balance - Manual or Auto
- Dual power input - PoCL® or 12VDC
- C-Mount lens mount
- On-screen and RS-232 setup
- Economically Priced
Applications:
- Process Control
- Inspection
- Machine Vision
- Industrial
| Scanning System | Progressive |
| Image Sensor | 3 x 1/3" CCD, RGB prism |
| Effective Pixels | VGA (659 x 494) |
| Output Resolution | H 659 x V 494 |
| Pixel Size | 7.4µm x 7.4µm |
| Sensing Area H V | 4.9 x 3.7 mm |
| Frame Rate | 59.94fps |
| Partial Scanning | 250fps (100 lines) 199fps (134 lines) 174fps (158 lines) 126fps (230 lines) 121fps (240 lines) 93fps (324 lines) Off (59.94) (494 lines) |
| Binning | Off, On, Ext On |
| Pixel Clock Frequency | 24.5454 MHz |
| Sync Signal Frequency | H 31.469 kHz V 59.94 kHz |
| Horizontal Resolution | 480 TV Lines |
| Output Signal | 8 bit Digital RGB Camera Link® |
| Sync Signal Output | FVAL/LVAL/DVAL (positive polarity) Pixel Clock |
| External Sync Input | HD: CC3 VD: CC4 (LVDS input) Neg polarity |
| External Trigger Input | CC1 (LVDS input) More than 2µs pulse width |
| Partial Scanning Control | CC2 (LVDS input) |
| S/N Ratio | 62 dB Standard (G) |
| Sensitivity | F6.8 Standard (2,000 Lux, 3,000K) |
| Noise Reduction | On / Off |
| Minimum Illumination | 14 Lx (f2.2 +18dB, 3,000K) |
| Lens Mount | C-Mount flange back 17.526mm in air |
| Ambient Temperature | 0° C - 40° C (32° F° - 104° F) |
| Ambient Humidity | Less than 90% |
| Input Power | 12 VDC±10% PoCL® or DC Connector |
| Interface | Serial data interface TC(RXD) TFG(TXD) |
| Power Consumption | Approx 3.2W Normal Approx - 3.4W Partial Scan |
| Dimensions (W x H x D) | 44 x 44 x 78 mm 1.73 x 1.73 x 3.07" |
| Weight | 158g (0.35 lbs) |
