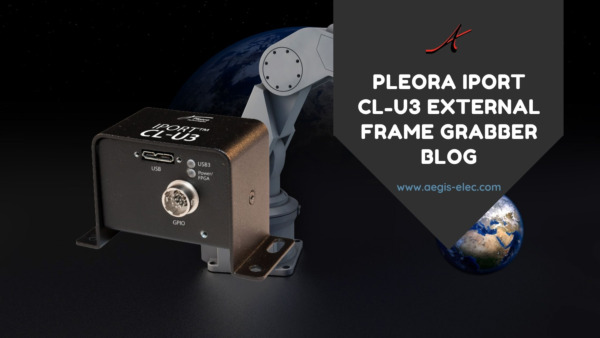

The Pleora CL-U3 External Frame Grabber with USB 3.0 is a space-saving, cost-cutting, frame grabber that helps manufacturers and integrators in many fields including Microscopy, Telepresence Robotics, Military, and Medical Imaging cut the cost and improve the usability of various applications while keeping your current cameras, sensors, optics, and accessories.

 Also, benefitting too many aspects is the decrease in both weight and power consumption used by the Pleora CL-U3 External Frame Grabber helping to longer battery life and more uses between charges for anything navigating remotely such as drones/uav's or robotics.

In Microscopy it allows business and researchers to cut out the often troublesome and complex camera cables and systems, higher costs, as well as limited component selection that often comes with Camera Link video interfaces and setups.

Here is a good review of the most powerful features below but don't let this list limit you the possibilities are endless. The Pleora iPORT CL-U3 External Frame Grabber family delivers a range of solutions for anyone to meet specific system requirements. The CL-U3 complies fully with the USB3 Vision and GenICam™ standards, ensuring interoperability with third-party equipment in multi-vendor environments. The CL-U3 is bundled with Pleora’s feature-rich eBUS™ SDK application toolkit.

Features:

  • Transmits video from Camera Link Base or Medium mode cameras over USB 3.0, with low, predictable latency
  • Plugs into a wide range of computing platforms without needing a PCI/PCIe frame grabber
  • Compact and low power
  • Mountable enclosure
  • Line scan and area scan modes
  • 128 MB frame buffer to accommodate multi-mega pixel sensor sizes
  • Throughput approaching 3 Gb/s
  • Record and playback functionality
  • USB3 Vision and GenICam compatible
  • Power, control, and video over the same USB 3.0 cable
  • Power over Camera Link (PoCL) with models CL-U3B-IND and CL-U3M-IND (external power supply required)
  • Sophisticated on-board programmable logic controller (PLC) allows users to precisely measure, synchronize, trigger, and control the operation of other vision system elements
