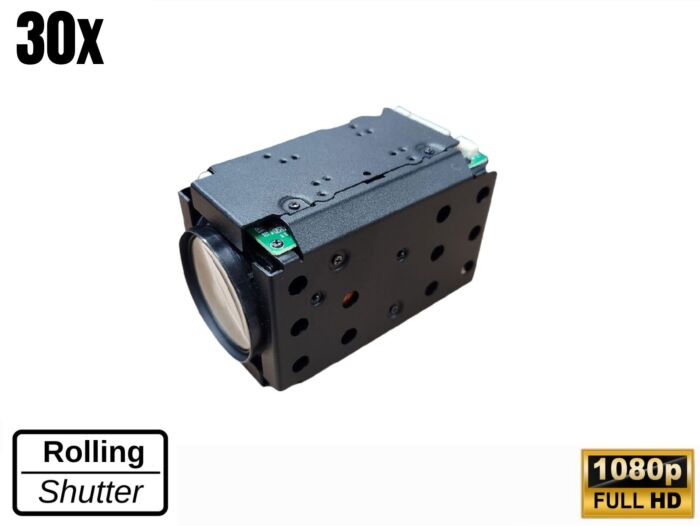

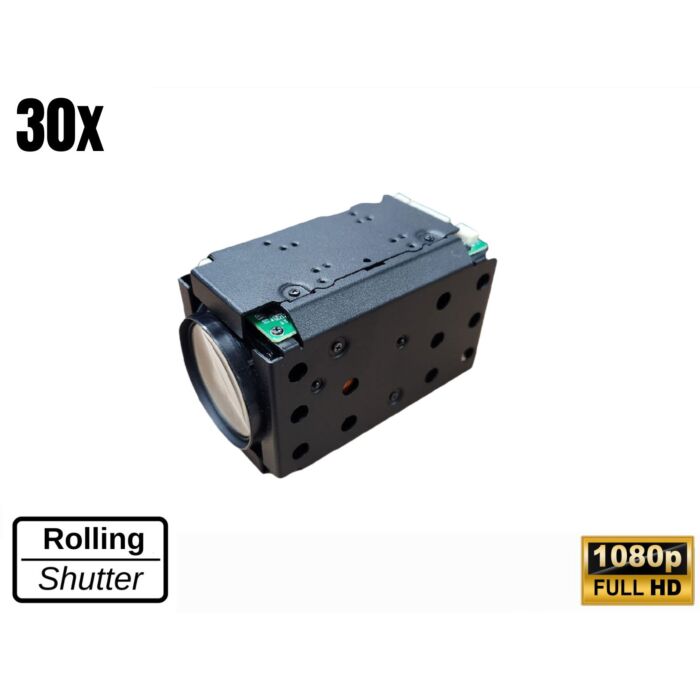

Block Cameras ML-KX30 (MLKX30) 2MP IP Zoom Module Camera With 30x Optical Zoom, 60fps, H.264/H.265, Rolling Shutter
The ML-KX30 is a compact, high-performance 2MP IP block camera module equipped with a 1/2.8" Sony CMOS rolling shutter image sensor, designed for embedded integration into PTZ systems, UAVs, robotics, and intelligent surveillance platforms. This module supports Full HD 1080p streaming at up to 60/50/30/25 fps and utilizes H.264/H.265/JPEG compression with quad-streaming capability.
Featuring a 30x optical zoom (f = 4.6mm–136mm) and 10x digital zoom, it delivers exceptional clarity with 256 programmable zoom/focus presets. Low-light performance includes 0.03 Lux (Color, F1.63, AGC ON) and 0 Lux in B/W (IR LED). Advanced image controls include 2D/3D DNR, Defog, WDR, BLC, and mirror/flip options.
Built-in HTTP RESTful API and ONVIF compliance ensure seamless integration. The module supports industrial protocols (IPv4/IPv6, RTSP, RTP, IGMP, TCP/UDP) and includes a web-based GUI for configuration. Designed for reliability in harsh environments with an operating range of -20°C to +60°C, it weighs just 290g and measures 50 x 58.8 x 93 mm.
Applications span aerial/maritime/ground drones, ITS, machine vision, military/law enforcement, and robotics. Designed for integrators needing compact size, robust performance, and flexible deployment across multiple verticals.
Features:
- 1/2.8” Sony CMOS rolling shutter sensor
- 1920 x 1080 resolution, 2MP effective
- 30x optical zoom, 10x digital zoom
- H.264 / H.265 / JPEG compression
- 60/50/30/25 fps streaming
- Quad IP stream output
- HTTP RESTful API, Onvif compliant
- 256 zoom/focus presets
- Low-light: 0.03 Lux color / 0 Lux B/W (IR)
- 2D & 3D noise reduction, WDR, defog
- Multiple white balance/exposure modes
- 8-zone privacy masking, motion detection
- Audio I/O: G.711, 8kHz
- Compact: 50 x 58.8 x 93mm, 290g
- Operating Temp: -20°C to +60°C
Applications:
- Machine vision and defect detection
- Autonomous drones and UAVs
- Law enforcement & military integration
- Traffic and ITS surveillance
- Smart manufacturing and logistics
- Inspection and quality assurance
- Robotics and automation systems
- Infrastructure monitoring
- Maritime and armored vehicle vision
| Specification | Details |
| Image Sensor | 1/2.8” Sony CMOS Image sensor (Rolling shutter) |
| Zoom Ratio | Optical 30x, Digital 10x |
| Focus Control Mode | Auto Focus (Zoom Trigger, Timer Trigger, One Push), Manual (Slide Control, One Push) |
| WDR | On / Off |
| Total Pixels | 2,014(H) x 1,196(V) = 2.4M Pixels |
| Focal Length | f = 4.6mm ~ 136mm |
| Presets | 256 zoom/focus presets (TBA) |
| BLC | On / Off |
| Effective Pixels | 1,965(H) x 1,113(V) = 2.18M Pixels |
| Aperture Ratio | F1.63 (wide) ~ F4.85 (tele) |
| Day & Night | Auto, Day, Night, Ext-in |
| HLC | On / Off |
| Resolution | 1920 x 1080 |
| Angle of View | H: 65.4°(W) ~ 2.2°(T), V: 38.3°(W) ~ 1.3°(T), D: 73.3°(W) ~ 2.6°(T) |
| D&N Levels | 10 levels (without Ext-in) |
| DNR | 2D & 3D |
| Frame Rate | 60/50 fps, 30/25 fps |
| Minimum Distance | 0.5m (Wide), 5m (Tele) |
| Electronic Shutter Speed | 1/25(30) / 1/50(60) ~ 1/5,000 |
| Defog | Off / Low / Middle / High |
| IR Cut Filter | On / Off |
| Exposure Modes | Auto Mode, Manual Mode, Indoor Mode 50Hz / 60Hz (Flicker-Free) |
| Privacy Mask | Max 8 Zones |
| Minimum Illumination | Color: 0.03 Lux @ (F1.63, AGC ON), BW: 0Lux (IR LED) |
| Iris | DC auto iris (TBA) |
| White Balance Modes | Auto, Manual (3 steps or more) |
| Mirror | Off, Vertical Flip, Horizontal Flip, H+V Flip (180° rotation) |
| Gain Control | Auto / Manual |
| DIS | On / Off (TBA) |
| Compression | H.264 / H.265 / JPEG |
| Bitrate | 512~15000 kbps |
| Output Format | JPEG: 1920 x 1080 |
| Motion Detection | 32 x 18 cell / AI motion detection (TBA) |
| Audio | G.711 ulaw, 8 kHz |
| Recording | TBD |
| AI | - |
| Network Interface | 10BASE-T/100BASE-TX |
| Network Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, NTP, SMTP, FTP, UPnP (TBA), HTTP, HTTPS, SSL/TLS |
| API & Protocol | HTTP RESTful API, ONVIF |
| I/O | 1 Line In / 1 Line Out, 1x Alarm input, 1x Alarm output, 1x D&N input (Ext-in), 1x PWM output (lighting control), 1x UART |
| Security | Password protection, IP address filtering, HTTPS encryption, brute force delay protection |
| Streaming | Quadruple (x4) IP Streaming: Main: 1920x1080, Second: 1280x720, Third: 640x480 (TBA) |
| OSD | Title, Date, Resolution |
| User Interface | Web-based GUI |
| System Mode | NTSC / PAL |
| Video Analytics | Rule Engine / Tracker |
| Control Protocol | TBD |
| External Storage | Micro SD |
| Power Supply | 12V |
| Power Consumption | TBD |
| Storage Temperature | -20℃ ~ +60℃ (Humidity < 90%RH, Non-condensing) |
| Operating Temperature | -10℃ ~ +50℃ (Humidity < 90%RH, Non-condensing) |
| Dimensions | 50 x 58.8 x 93 mm (W x H x D) |
| Weight | 290g |
| Certifications | NA |
